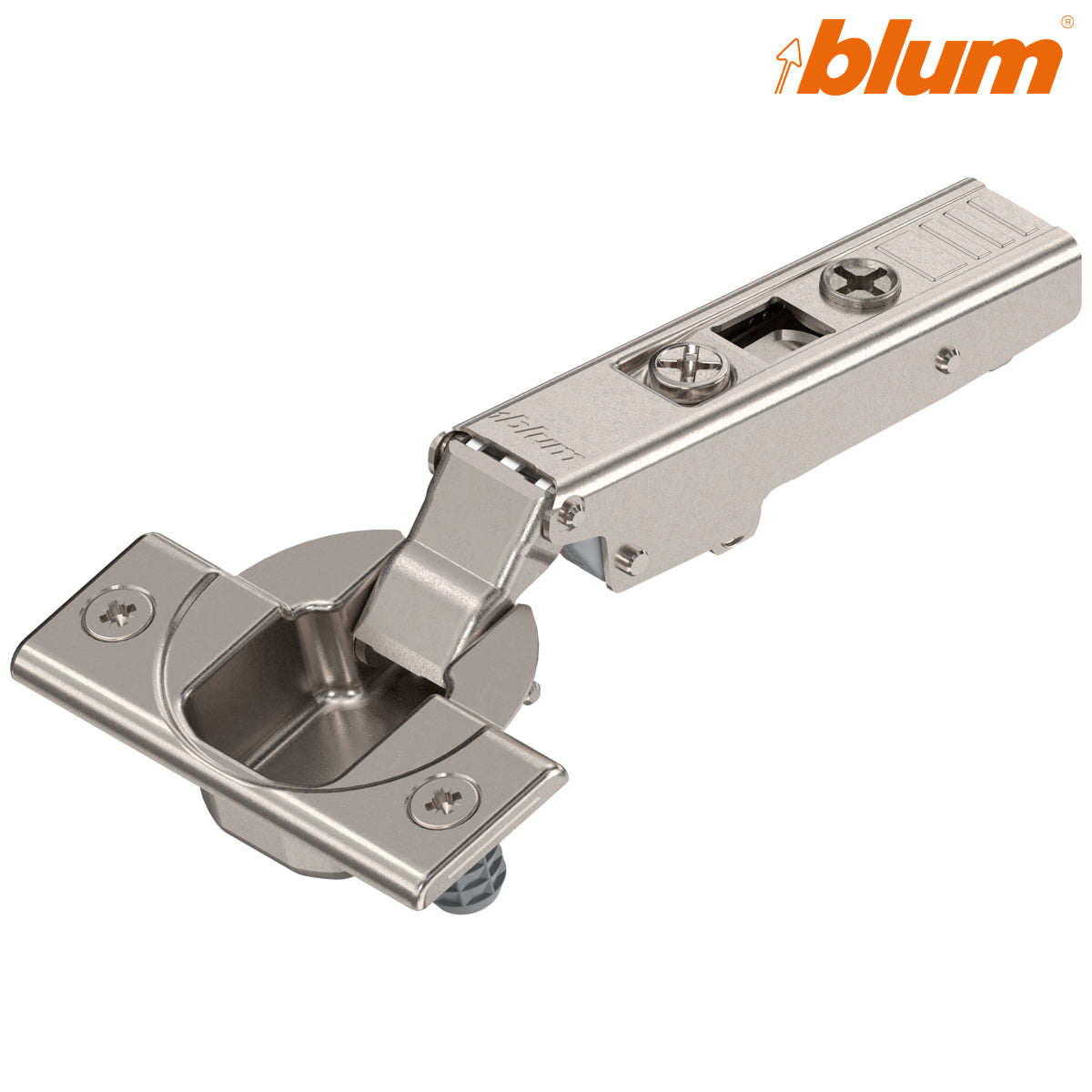

Blum 71T3580 CLIP Top 110° Overlay Knock-In Hinge – Nickel

The Blum 71T3580 is a sprung CLIP top concealed hinge for standard overlay cabinet doors. Its straight hinge arm and versatile 110° opening angle make it suitable for kitchen cabinets, bedroom furniture, cupboards and fitted storage.

This version uses Blum’s knock-in hinge-cup fixing, with pre-mounted dowels designed for accurately prepared fixing holes. It is particularly suitable for repeat workshop and production installation where a consistent drilling pattern and mechanical insertion equipment are available.

The 71T3580 has a sprung, self-closing action but does not include integrated BLUMOTION soft closing.

Key features

• Genuine Blum CLIP top concealed hinge
• Straight hinge arm for overlay cabinet doors
• 110° opening angle
• Sprung, self-closing action
• Knock-in hinge-cup fixing with pre-mounted dowels
• 35mm concealed hinge cup
• Tool-free CLIP connection to the mounting plate
• Tool-free door attachment and removal
• Convenient spiral-screw depth adjustment
• Three-dimensional door adjustment
• Nickel-plated steel construction
• Supplied as one hinge
• Mounting plate sold separately

Technical specifications

Knock-in hinge-cup installation

The hinge cup incorporates pre-mounted dowels that are pressed into two accurately drilled 8mm fixing holes beside the main 35mm cup drilling. A suitable Blum insertion ram or workshop press should be used to install the hinge evenly without damaging the cup or dowels.

Knock-in and INSERTA are different fixing systems. INSERTA uses a tool-free locking mechanism, whereas the 71T3580 uses mechanically inserted dowels.

For conventional screw fixing, choose the Blum 71T3550 screw-on hinge. For tool-free cup fixing, choose the Blum 71T3590 INSERTA hinge.

Sprung closing without integrated soft close

The internal spring pulls the cabinet door into its closed position. This hinge does not contain a BLUMOTION damper.

Choose the Blum 71B3580 BLUMOTION knock-in hinge when integrated soft closing and the same knock-in fixing method are required.

Mounting plate required

A compatible Blum CLIP mounting plate must be ordered separately. The appropriate plate height depends on the cabinet construction, cup drilling distance and required door overlay.

Browse the complete Blum CLIP top hinge collection for alternative applications, fixing systems and closing actions.

Frequently asked questions

Does the Blum 71T3580 have soft close?

No. It is a sprung, self-closing hinge without integrated BLUMOTION.

What does knock-in mean?

The hinge cup has pre-mounted dowels that are pressed into accurately prepared 8mm fixing holes using suitable installation equipment.

Is knock-in the same as INSERTA?

No. INSERTA has a tool-free locking mechanism. Knock-in hinges use mechanically inserted dowels.

Is a mounting plate included?

No. The hinge and compatible Blum CLIP mounting plate are ordered separately.

Is this an overlay hinge?

Yes. Its straight hinge arm is designed for overlay doors. The final overlay depends on the mounting plate, cabinet construction and cup drilling distance.
