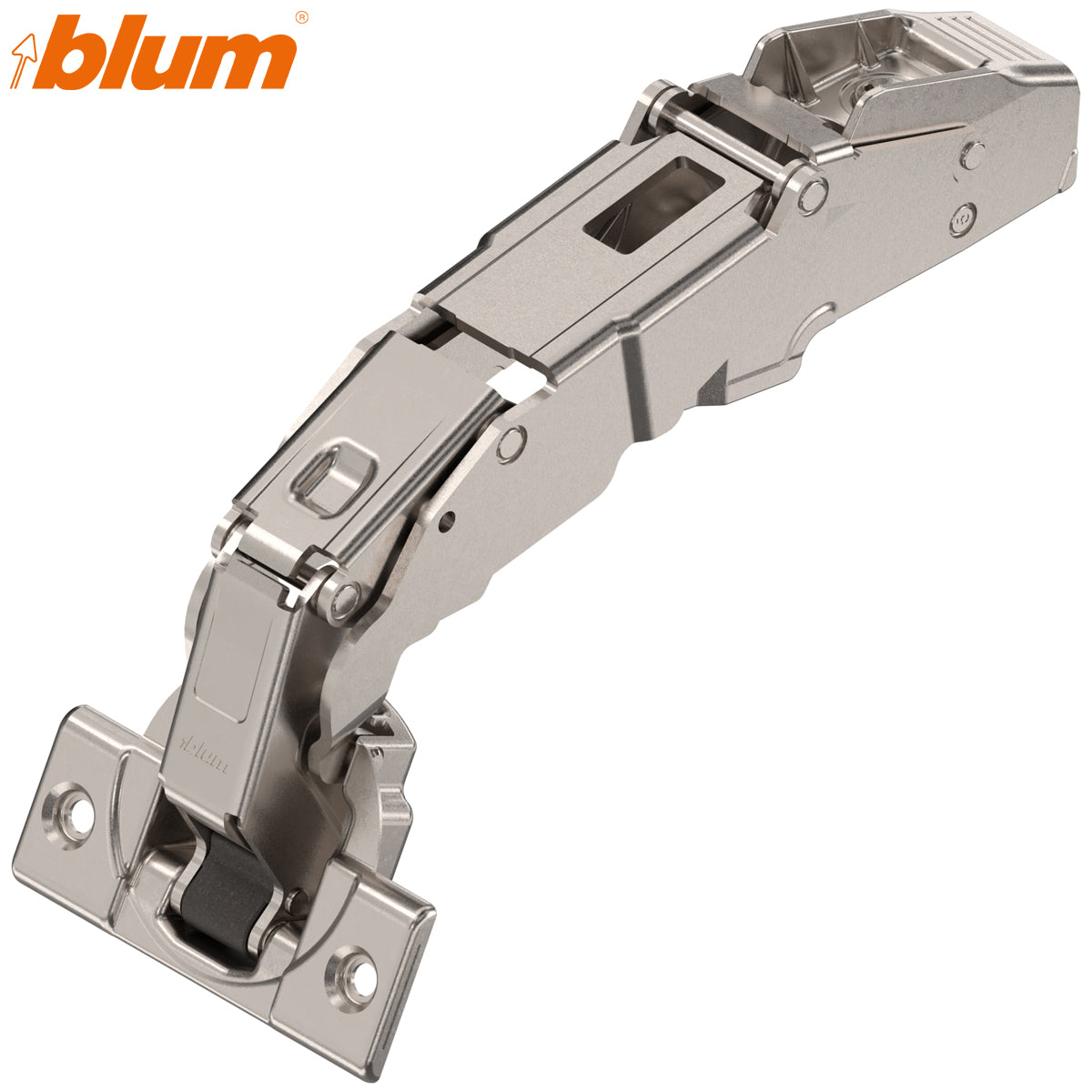

Blum 71T7650 CLIP top 155° Zero-Protrusion Half-Overlay Sprung Screw-On Hinge

The Blum 71T7650 is a wide-opening CLIP top hinge for half-overlay or dual cabinet-door applications. It is designed for installations where two doors are mounted on opposite sides of the same central cabinet partition.

Its 155° opening angle and zero-protrusion geometry move the open door away from the cabinet interior, helping internal drawers, pull-out shelves and storage baskets extend without being obstructed by the door.

This makes the hinge particularly useful for kitchen cabinets, larder units, internal drawers, pull-out storage and wide-access furniture applications.

Sprung self-closing action

The 71T7650 contains a closing spring that pulls the cabinet door into its closed position. It is self-closing but does not contain integrated BLUMOTION soft-close damping.

For an integrated soft-close version, see the Blum 71B7650 CLIP top BLUMOTION hinge.

Screw-on hinge-cup fixing

The 35mm steel hinge cup is secured to the cabinet door using conventional screws. The hinge requires a cup-drilling depth of approximately 11.7mm and supports drilling distances between 3mm and 8mm.

After installation, the CLIP mechanism allows the door to be attached to or removed from a compatible mounting plate without tools.

Key features

• Genuine Blum CLIP top hinge
• Blum part number: 71T7650
• 155° wide opening angle
• Zero-protrusion hinge geometry
• Half-overlay or dual-door application
• Suitable where two doors share a central partition
• Helps provide clearance for internal drawers and pull-outs
• Sprung and self-closing
• No integrated BLUMOTION soft-close
• Screw-on hinge-cup fixing
• 35mm hinge-cup diameter
• Approximately 11.7mm cup-drilling depth
• Three-dimensional door adjustment
• Tool-free CLIP door attachment and removal
• Suitable for thick and specialist door applications
• Nickel-plated steel construction
• Supplied as one hinge
• Mounting plate sold separately

Choose a compatible Blum CLIP mounting plate according to the required overlay and cabinet construction.

Technical specifications

Blum planning information covers fronts up to 31mm in suitable configurations. A trial installation is recommended for unusually thick, mitred or specialist doors.

Frequently Asked Questions

What does half overlay or dual application mean?

It means two cabinet doors can share the same central partition. Each door covers approximately half of the panel edge when closed.

What does zero protrusion mean?

The hinge moves the open door away from the cabinet’s internal access area, helping drawers, shelves and pull-out baskets extend without striking the door.

Is the Blum 71T7650 a soft-close hinge?

No. It is sprung and self-closing but does not contain integrated BLUMOTION damping.

What is the difference between 71T7650 and 71B7650?

The 71T7650 is a conventional sprung, self-closing hinge. The 71B7650 has integrated BLUMOTION soft-close.

How is the hinge attached to the door?

The 35mm hinge cup is secured using conventional screws. “Screw-on” describes the hinge-cup fixing, not the cabinet mounting plate.

Is the mounting plate included?

No. This listing is for one hinge only. A compatible Blum CLIP mounting plate must be purchased separately.

Can it be used with thick cabinet doors?

Blum planning data covers fronts up to 31mm in suitable configurations. A trial installation should be completed for thicker or unusually shaped doors.

Can this hinge be used for an inset door?

Some inset configurations are possible using the half-overlay hinge with an appropriate 9mm-spaced mounting plate. The application should be checked against Blum planning information before installation.

Is the hinge sold individually?

Yes. The listed price is for one hinge.
