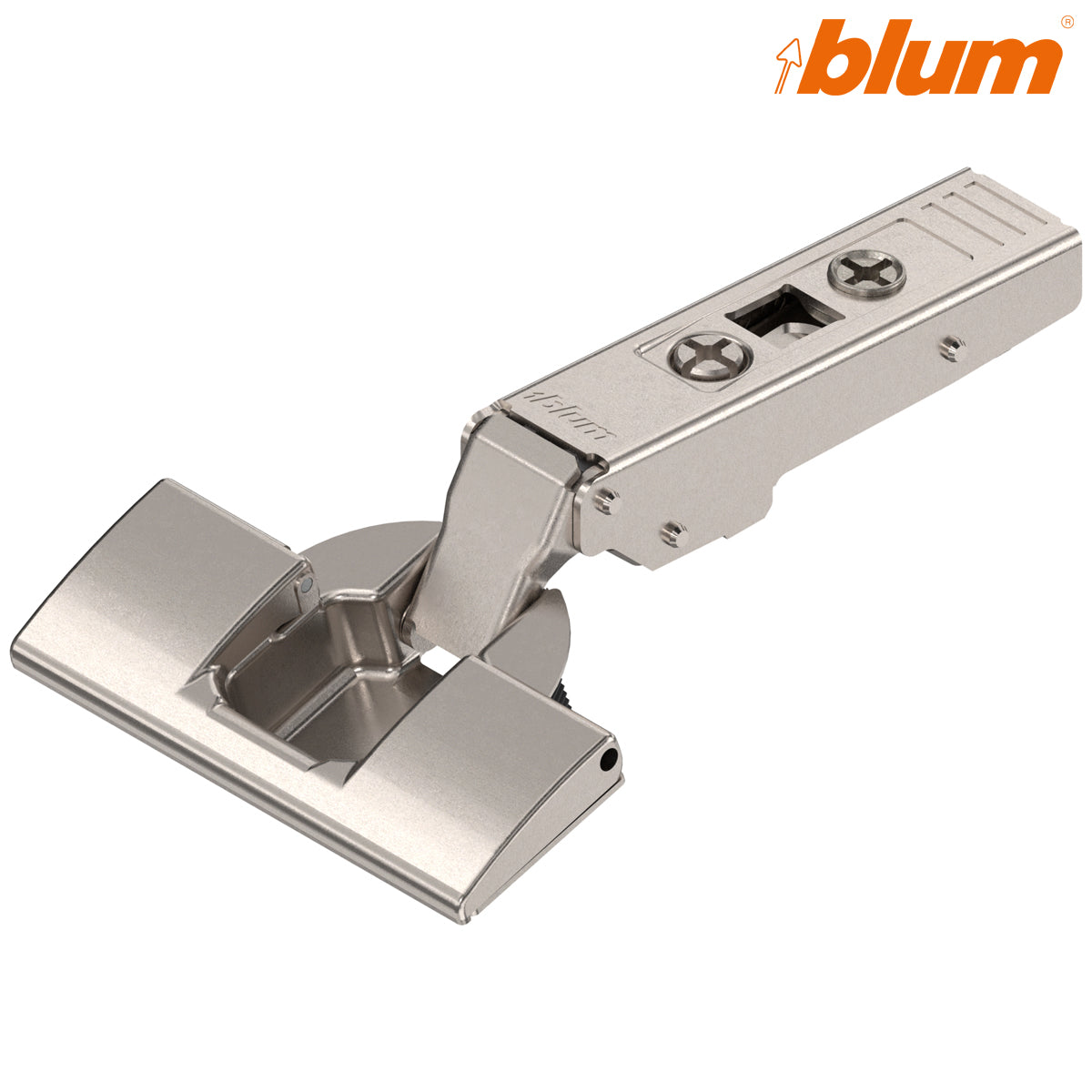

  • Blum 75T1590B CLIP top 107° full-overlay INSERTA cabinet hinge in nickel
  • BLUM CLIP HINGE 107deg OVERLAY INSERTA by JULIUS BLUM UK LTD
  • BLUM CLIP HINGE 107deg OVERLAY INSERTA by JULIUS BLUM UK LTD
1 3

Blum 75T1590B CLIP Top 107° Overlay INSERTA Hinge – Nickel

Blum 75T1590B CLIP Top 107° Overlay INSERTA Hinge – Nickel

Stock Code: HI75T1590B

£1.82 GBP
Sale
View full details

PRODUCT DESCRIPTION

Blum 75T1590B CLIP Top 107° Overlay INSERTA Hinge

The Blum 75T1590B is a sprung CLIP top concealed hinge for full-overlay cabinet doors. It combines a practical 107° opening angle with Blum’s tool-free INSERTA cup fixing, making it particularly suitable for accurately pre-drilled kitchen, bedroom and fitted-furniture doors.

Its shallow 11.5mm minimum cup drilling depth makes the hinge suitable for cabinet fronts approximately 15–24mm thick, subject to the door material, edge profile and drilling position.

Important: this is a sprung, self-closing hinge. It does not contain integrated BLUMOTION soft-close.

Full-overlay cabinet application

A full-overlay door covers most of the cabinet side panel when closed. The straight hinge arm is designed for this common cabinet construction and can be combined with different mounting-plate heights to produce the required door overlay.

The final overlay and operating gap depend on the selected mounting plate, cup-drilling distance and cabinet construction. A trial installation is recommended before drilling multiple doors.

Tool-free INSERTA cup fixing

Blum’s INSERTA system allows the hinge cup to be secured to the door without separate screws or a mechanical insertion press. Insert the cup into the prepared drilling pattern and operate the integrated locking mechanism to expand the fixings inside the two 8mm holes.

The required drilling pattern consists of a 35mm cup hole and two 8mm fixing holes positioned on 45mm centres. The cup-hole drilling distance can be set between 3mm and 6mm, depending on the required overlay and door-edge profile.

CLIP top fitting and adjustment

Once the cup is installed, the hinge arm clips onto a compatible Blum mounting plate without tools. The door can therefore be attached or removed without undoing the cabinet-side mounting screws.

Side, depth and height adjustment allow the door position and gaps to be aligned accurately after installation.

Key features

  • Genuine Blum CLIP top concealed cabinet hinge
  • Blum part number 75T1590B
  • Designed for full-overlay cabinet doors
  • Straight hinge arm
  • 107° opening angle
  • Sprung, self-closing action
  • No integrated BLUMOTION soft-close
  • Tool-free INSERTA hinge-cup installation
  • 35mm steel hinge cup
  • Minimum cup drilling depth of 11.5mm
  • Suitable for cabinet fronts approximately 15–24mm thick
  • Tool-free CLIP connection to the mounting plate
  • Three-dimensional door adjustment
  • Nickel-plated steel construction
  • Supplied individually
  • Mounting plate sold separately

Technical specifications

Manufacturer Blum
Blum part number 75T1590B
Hart stock code HI75T1590B
Blum identification code 06779663
GTIN / EAN 9002617642049
Hinge system CLIP top
Application Full-overlay cabinet door
Hinge arm Straight overlay arm
Opening angle 107°
Closing action Sprung and self-closing
Integrated soft-close No
Cup fixing Tool-free INSERTA
Cup drilling diameter 35mm
Minimum cup drilling depth 11.5mm
Fixing-hole diameter 8mm
Fixing-hole centres 45mm
Fixing-hole offset 9.5mm from the cup centreline
Cup drilling distance 3–6mm
Recommended front thickness 15–24mm

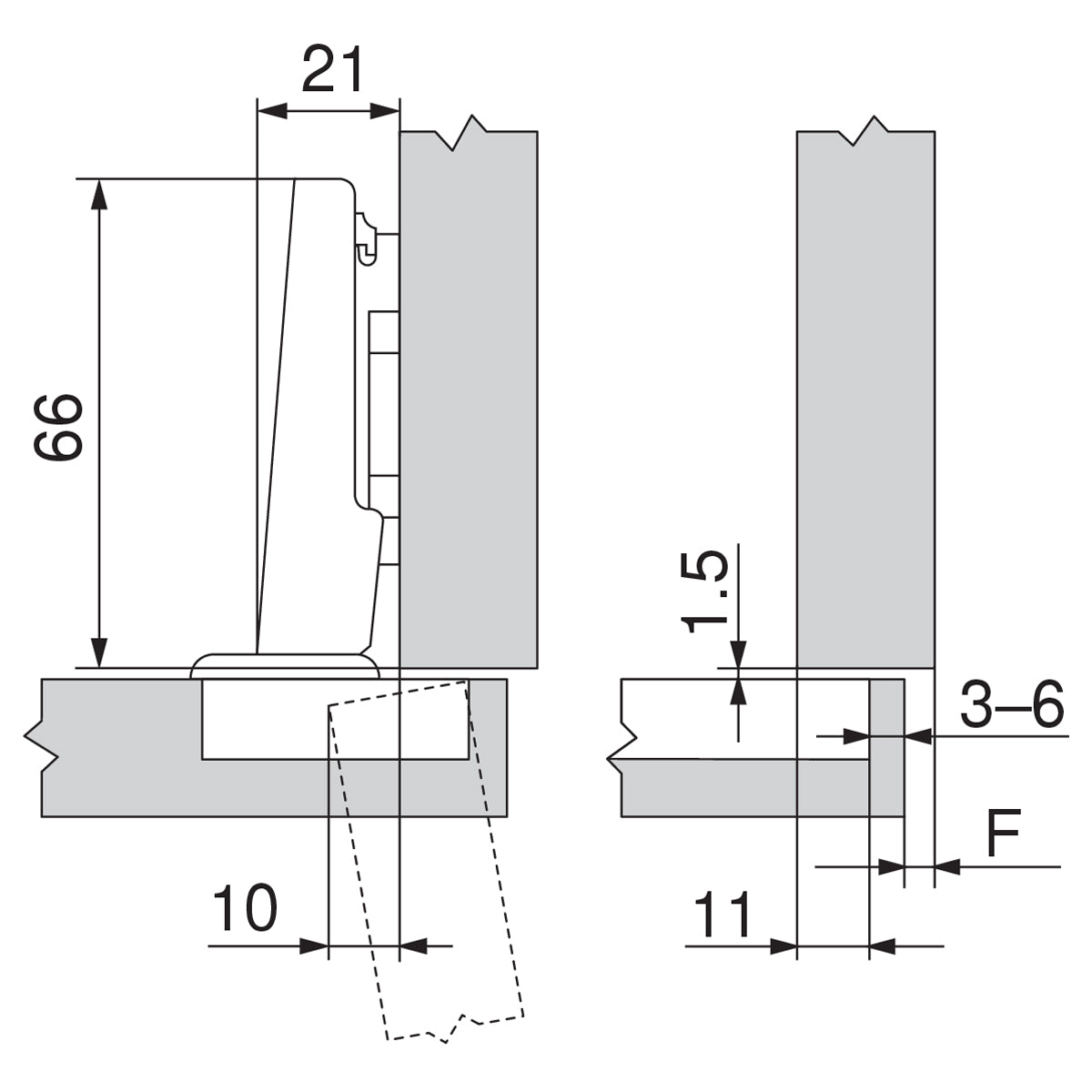

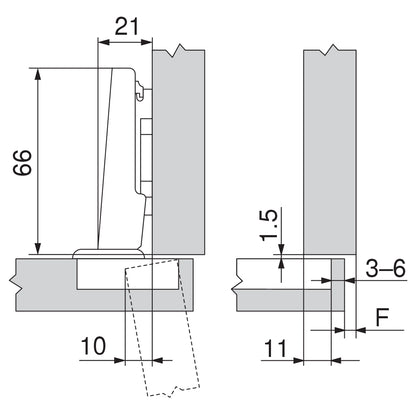

Hinge-arm planning dimension 21mm
Side adjustment ±2mm
Depth adjustment +3mm / −2mm using spiral screw
Height adjustment Through the selected mounting plate
Material Steel
Finish Nickel plated
Quantity supplied One hinge
Mounting plate included No – sold separately

Compatible products and alternatives

A compatible Blum CLIP top mounting plate is required and must be ordered separately.

For the same overlay application with a mechanically pressed knock-in cup, consider the Blum 75T1580 107° overlay knock-in hinge.

Browse all Blum INSERTA hinges or explore the complete Blum CLIP top hinge range.

Frequently asked questions

Does the Blum 75T1590B have soft-close?

No. The hinge contains a closing spring that pulls the door shut, but it does not contain an integrated BLUMOTION soft-close damper.

What is a full-overlay hinge?

A full-overlay hinge positions the closed door over most of the cabinet side panel. This is one of the most common cabinet-door configurations.

Is the INSERTA cup genuinely tool-free?

Yes. The cup is secured using its integrated locking mechanism, without separate cup-fixing screws or a mechanical insertion press.

What drilling pattern does the INSERTA cup require?

It requires a 35mm cup hole together with two 8mm fixing holes on 45mm centres. The fixing holes are offset 9.5mm from the centreline of the cup.

What door thickness is suitable?

The hinge is suitable for cabinet fronts approximately 15–24mm thick. A trial fitting is recommended when using unusual materials, thick edge profiles or fronts near the upper end of the range.

What is the difference between INSERTA and knock-in?

INSERTA uses an integrated locking mechanism for tool-free cup installation. A knock-in hinge has pre-mounted dowels that must be mechanically pressed into the prepared holes.

Is the mounting plate included?

No. A compatible Blum CLIP top mounting plate must be selected and ordered separately.

Is the price for one hinge or a pair?

The product is supplied individually. Order two or more hinges when required for a complete cabinet door installation.

TECHNICAL DETAILS

  • Application: Overlay
  • Finish: Nickel
  • Colour: Nickel
  • Material: Steel, Nylon
