Blum 75T1780 CLIP Top 107° Inset Knock-In Hinge – Nickel

Blum 75T1780 CLIP Top 107° Inset Knock-In Hinge – Nickel

Stock Code: HI75T1780

£1.34 GBP
Sale
View full details

PRODUCT DESCRIPTION

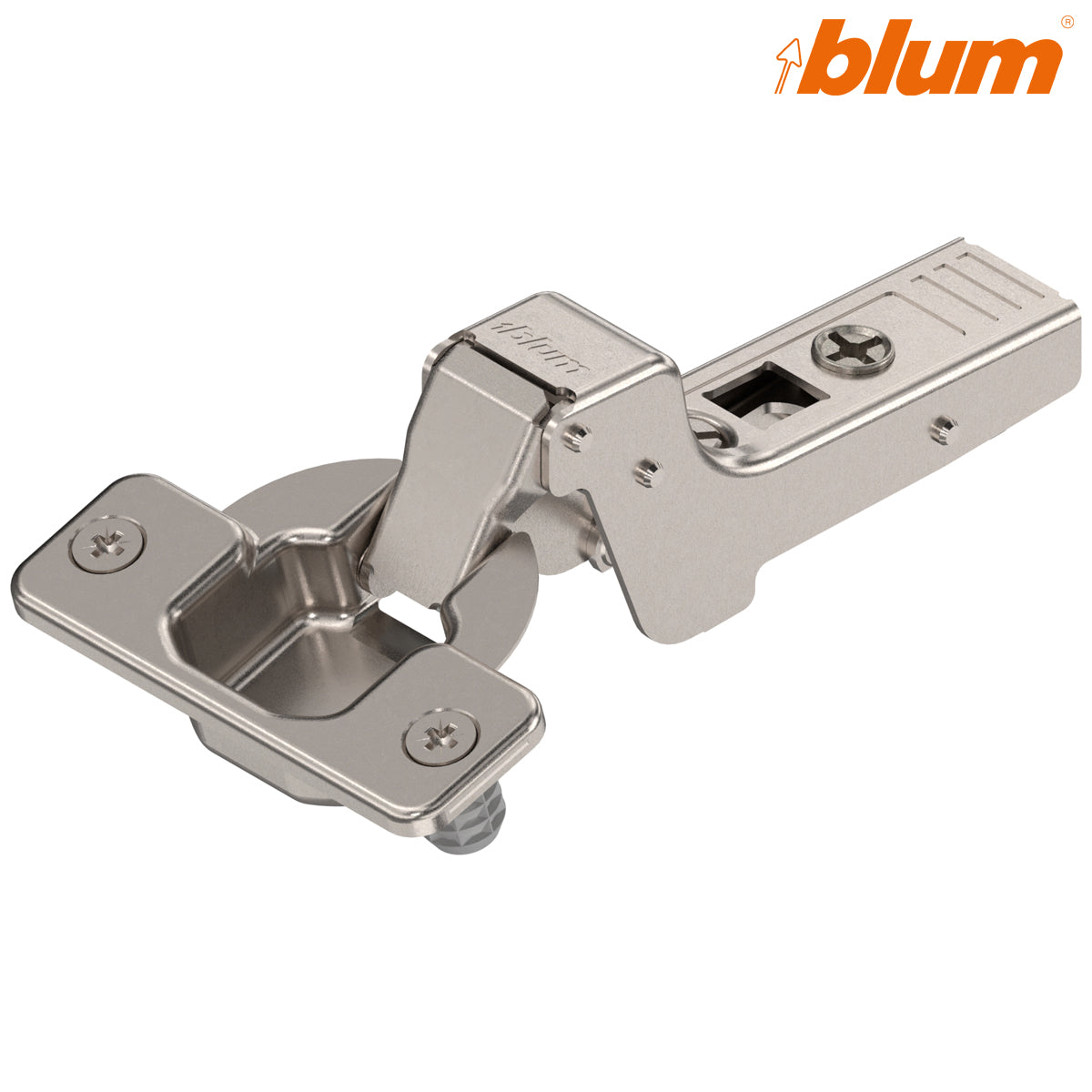

Blum 75T1780 CLIP Top 107° Inset Knock-In Hinge

The Blum 75T1780 is a professional-quality, sprung concealed hinge designed for inset cabinet doors. Its fully cranked hinge arm positions the door inside the cabinet opening, while the 107° opening angle provides comfortable access for kitchen, bedroom and fitted furniture applications.

The shallow 11.5mm minimum cup drilling depth makes this hinge suitable for cabinet fronts approximately 15–24mm thick, subject to the door material, drilling position and a trial installation.

Important: this is a standard sprung, self-closing CLIP top hinge. It does not contain integrated BLUMOTION soft-close.

Designed for inset cabinet doors

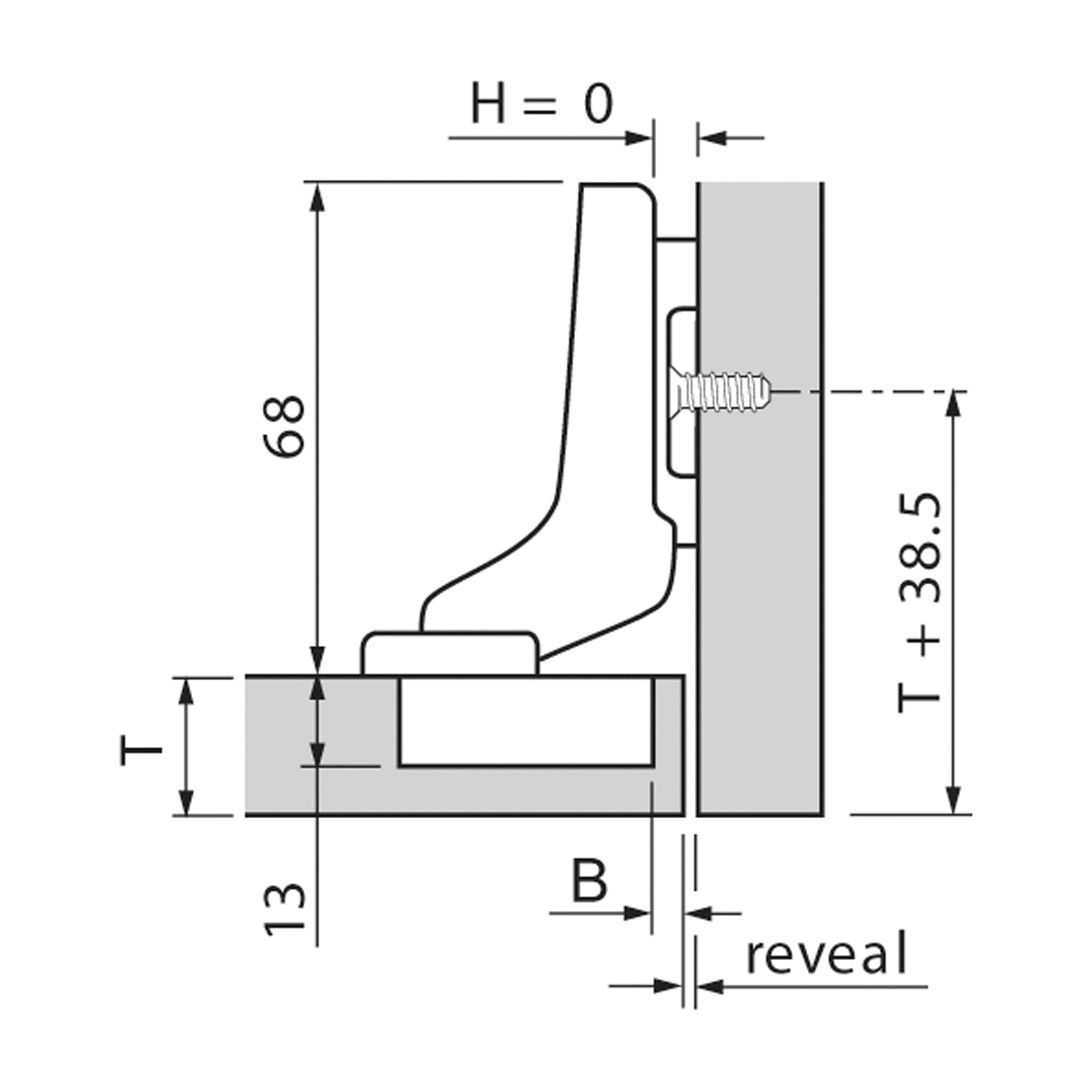

An inset door sits within the cabinet opening rather than covering the cabinet sides. The final reveal around the door depends on the mounting plate height, cup drilling distance, front thickness and edge radius. A trial installation is recommended before drilling every door.

Knock-in cup fixing

The hinge cup has pre-mounted dowels that are pressed into prepared 8mm fixing holes. This provides a secure, repeatable fixing for production and workshop assembly. The knock-in cup is mechanically fitted and should not be described as tool-free.

Once installed in the door, the hinge arm connects to a compatible mounting plate using Blum’s tool-free CLIP mechanism. This allows the door to be attached and removed without disturbing the mounting plate adjustment.

Product features

  • Genuine Blum CLIP top concealed cabinet hinge
  • Inset application with fully cranked hinge arm
  • 107° opening angle
  • Sprung, self-closing action
  • Knock-in hinge cup with pre-mounted dowels
  • 35mm steel hinge cup
  • Minimum cup drilling depth of 11.5mm
  • Suitable for fronts approximately 15–24mm thick
  • Tool-free CLIP attachment to the mounting plate
  • Three-dimensional door adjustment
  • Nickel-plated steel construction

Technical specification

Manufacturer Blum
Blum part number 75T1780
Hart stock code HI75T1780
Identification number 03565403
GTIN / EAN 9002617437058
Hinge system CLIP top
Application Inset cabinet door
Opening angle 107°
Closing action Sprung / self-closing
Integrated soft-close No
Cup fixing Knock-in dowels
Cup drilling diameter 35mm
Minimum cup drilling depth 11.5mm
Dowel hole diameter 8mm
Fixing-hole centres 45mm
Cup drilling distance 3–6mm
Recommended front thickness 15–24mm
Side adjustment ±2mm
Depth adjustment +3mm / −2mm using spiral screw
Height adjustment Via the selected mounting plate
Material Steel
Finish Nickel plated
Quantity One hinge
Mounting plate included No – sold separately

Compatible products and alternatives

A compatible Blum CLIP top mounting plate is required and must be ordered separately.

For the same inset application with a tool-free cup installation, consider the Blum 75T1790B 107° inset INSERTA hinge.

You can also browse the complete Blum CLIP top hinge collection.

Frequently asked questions

Does the Blum 75T1780 have soft-close?

No. The 75T1780 has a spring that pulls the door closed, but it does not contain integrated BLUMOTION damping.

What does inset application mean?

An inset door fits within the cabinet opening rather than overlapping the cabinet sides. The fully cranked hinge arm provides the geometry required for this application.

Is the knock-in cup tool-free?

No. The pre-mounted dowels are pressed into prepared 8mm holes. The CLIP connection between the hinge arm and mounting plate is tool-free.

What drilling pattern is required?

The hinge requires a 35mm cup hole with a minimum depth of 11.5mm. The two 8mm fixing holes are positioned on 45mm centres.

What door thickness can be used?

The hinge is intended for fronts approximately 15–24mm thick. Door material, edge profile and drilling position should be checked with a trial installation.

Is a mounting plate supplied?

No. Order a compatible Blum CLIP top mounting plate separately. The mounting plate height must be selected to suit the required inset reveal.

Is the hinge sold as a pair?

No. Each quantity ordered supplies one hinge.

TECHNICAL DETAILS

  • Application: Inset
  • Colour: Nickel
