Blum 75T1780 CLIP top 107° Inset Knock-In Hinge

Blum 75T1780 CLIP top 107° Inset Knock-In Hinge

Stock Code: HI70M2780TL

£1.29 GBP
Sale
View full details

PRODUCT DESCRIPTION

Blum 75T1780 CLIP top 107° Inset Knock-In Hinge

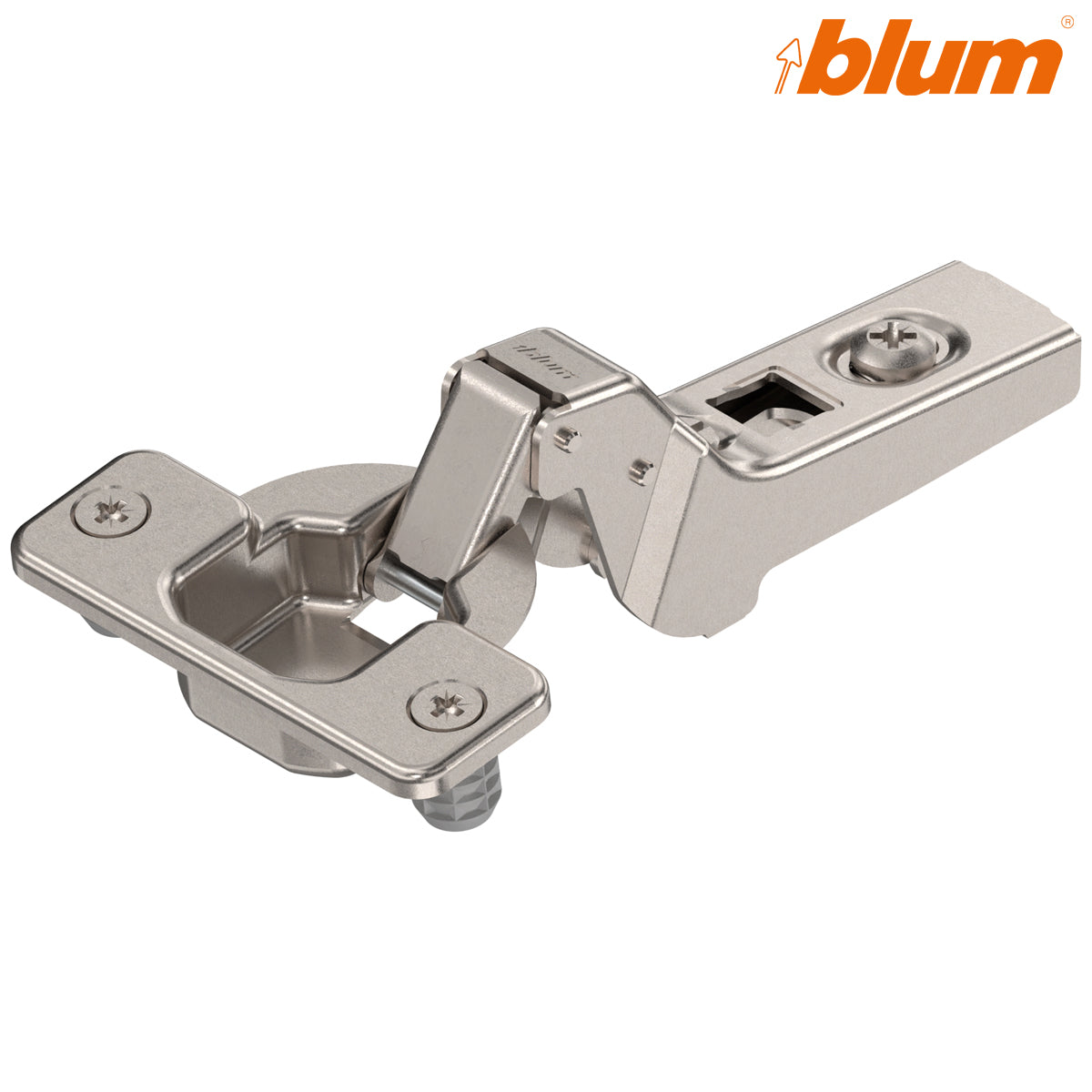

The Blum 75T1780 is a sprung CLIP top concealed hinge for inset cabinet doors. Its fully cranked hinge arm is designed for doors that close within the cabinet opening rather than overlaying the cabinet sides.

The hinge opens to 107° and has a built-in closing spring that pulls the door into its closed position. It is self-closing but does not contain integrated BLUMOTION. Optional soft closing can be added using the compatible Blum 973A0700 clip-on damper.

The 35mm steel hinge cup has pre-mounted knock-in dowels for secure installation into a correctly drilled door. Once fitted, the CLIP mechanism allows the hinge arm to attach to or release from a compatible mounting plate without tools.

Supplied as one hinge. The mounting plate, BLUMOTION damper and cabinet fixings are sold separately.

Key features

  • Designed for inset cabinet doors
  • Fully cranked hinge-arm configuration
  • 107° opening angle
  • Sprung and self-closing
  • No integrated BLUMOTION mechanism
  • Compatible with the optional 973A0700 clip-on damper
  • 35mm knock-in hinge cup with pre-mounted dowels
  • Shallow 11.5mm cup-drilling depth
  • Suitable for door thicknesses starting from 15mm
  • Tool-free CLIP connection to the mounting plate
  • Three-dimensional door adjustment
  • Convenient spiral-screw depth adjustment
  • Nickel-plated steel construction
  • Supplied individually

Technical specifications

Manufacturer Blum
Product range CLIP top
Blum part number 75T1780
Hart Wholesale stock code HI75T1780
Application Inset
Hinge-arm configuration Fully cranked
Opening angle 107°
Closing action Sprung/self-closing
Integrated soft close No
Optional soft-close damper Blum 973A0700, sold separately
Door fixing Knock-in cup with pre-mounted dowels
Hinge-cup diameter 35mm
Cup-drilling depth 11.5mm
Fixing-hole diameter 8mm
Fixing-hole centres 45mm
Cup-drilling distance 3–6mm
Minimum door thickness 15mm
Side adjustment ±2mm
Depth adjustment +3/−2mm
Cabinet connection Blum CLIP mounting plate
Mounting plate included No
Material Steel
Finish Nickel plated
Quantity supplied One hinge

Installation guidance

The knock-in hinge cup requires accurately drilled 8mm fixing holes alongside the 35mm cup bore. A suitable insertion tool or press is recommended to seat the pre-mounted dowels correctly without damaging the hinge or door.

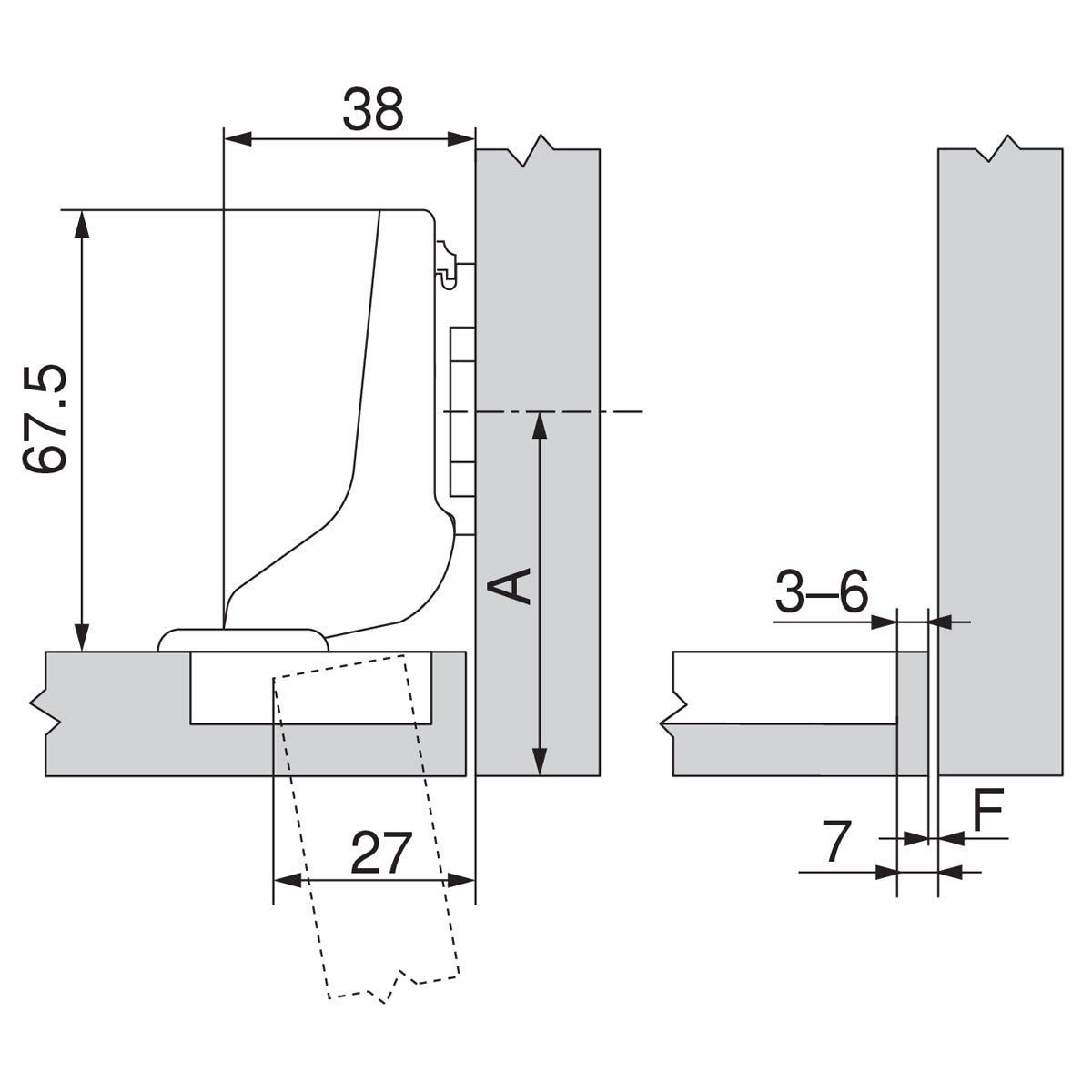

Inset-door clearances depend on the door thickness, drilling distance, mounting-plate height and required cabinet gap. A trial installation is recommended before drilling a complete set of doors.

Browse our Blum CLIP mounting plates and Blum BLUMOTION devices.

Frequently asked questions

Does the Blum 75T1780 have integrated soft close?

No. It is sprung and self-closing but does not contain integrated BLUMOTION. The integrated soft-close equivalent is the Blum 75B1780.

Can soft closing be added?

Yes. The compatible Blum 973A0700 clip-on BLUMOTION damper can be purchased separately.

What does inset mean?

An inset door closes within the cabinet opening rather than overlaying the cabinet side panels.

What does knock-in fixing mean?

The hinge cup has pre-mounted dowels that fit into accurately drilled fixing holes in the back of the door.

Is the knock-in cup tool-free?

No. Suitable drilling and insertion equipment is recommended. Only the CLIP connection between the hinge arm and mounting plate is tool-free.

Is the mounting plate included?

No. Select and purchase the appropriate Blum CLIP mounting plate separately.

Is this suitable for thin doors?

Its shallow 11.5mm cup bore makes it suitable for appropriately constructed doors starting from 15mm thick. Always confirm the door material and drilling suitability before installation.

How many hinges are supplied?

This listing is for one hinge.
