Blum AVENTOS HK top 22K2500 Lift Mechanism 0930–2800

Blum AVENTOS HK top 22K2500 Lift Mechanism 0930–2800

Stock Code: HI22K2500

£46.80 GBP
Sale
View full details

PRODUCT DESCRIPTION

The Blum AVENTOS HK top 22K2500 lift mechanism set provides controlled upward opening for single-piece cabinet fronts. Covering a power-factor range of 930–2800, it is designed for wall cabinets and overhead storage requiring smooth movement, convenient access and reliable front positioning.

Integrated BLUMOTION provides soft, quiet and controlled closing. Once correctly selected and adjusted for the cabinet front, the lift system allows the door to open with minimal effort and remain securely in the chosen position.

Compact stay-lift system

AVENTOS HK top raises the complete cabinet front upwards, helping keep it clear of the working area. Its compact design is ideal for kitchen wall units, fitted furniture and overhead cupboards where practical access and efficient use of space are important.

The adjustable opening-angle limiter allows an opening angle between 75° and 107°. This can help prevent the front from opening farther than required when the cabinet is positioned near a ceiling, cornice or other obstruction.

Selecting the correct power factor

The Blum 22K2500 covers a power-factor range of 930–2800. Calculate the power factor by multiplying the cabinet height in millimetres by the complete cabinet-front weight in kilograms, including the handle. Accurate calculation is essential when choosing the correct AVENTOS lift mechanism.

Cabinet dimensions, front construction and total weight must be checked before ordering. When a calculation falls within an overlapping or borderline area, consult the latest Blum planning information before selecting the mechanism.

Key features

  • Genuine Blum AVENTOS HK top mechanism set
  • Blum article number 22K2500
  • Stock code HI22K2500
  • Power-factor range of 930–2800
  • Integrated BLUMOTION soft-close action
  • For single-piece upward-opening cabinet fronts
  • Continuously adjustable opening angle from 75° to 107°
  • Suitable for cabinet heights from 205–600mm
  • Suitable for cabinet widths up to 1800mm
  • Two symmetrical zinc lift mechanisms
  • Balanced movement with variable stopping positions

Product details

  • Manufacturer: Blum
  • Range: AVENTOS HK top
  • Blum article number: 22K2500
  • Stock code: HI22K2500
  • Mechanism type: Stay lift
  • Power factor: 930–2800
  • Closing action: Integrated BLUMOTION
  • Opening angle: 75°–107°, continuously adjustable
  • Cabinet height: 205–600mm
  • Maximum cabinet width: 1800mm
  • Maximum front weight: 18kg with two mechanisms, subject to power-factor selection
  • Finish: Zinc

Set contents

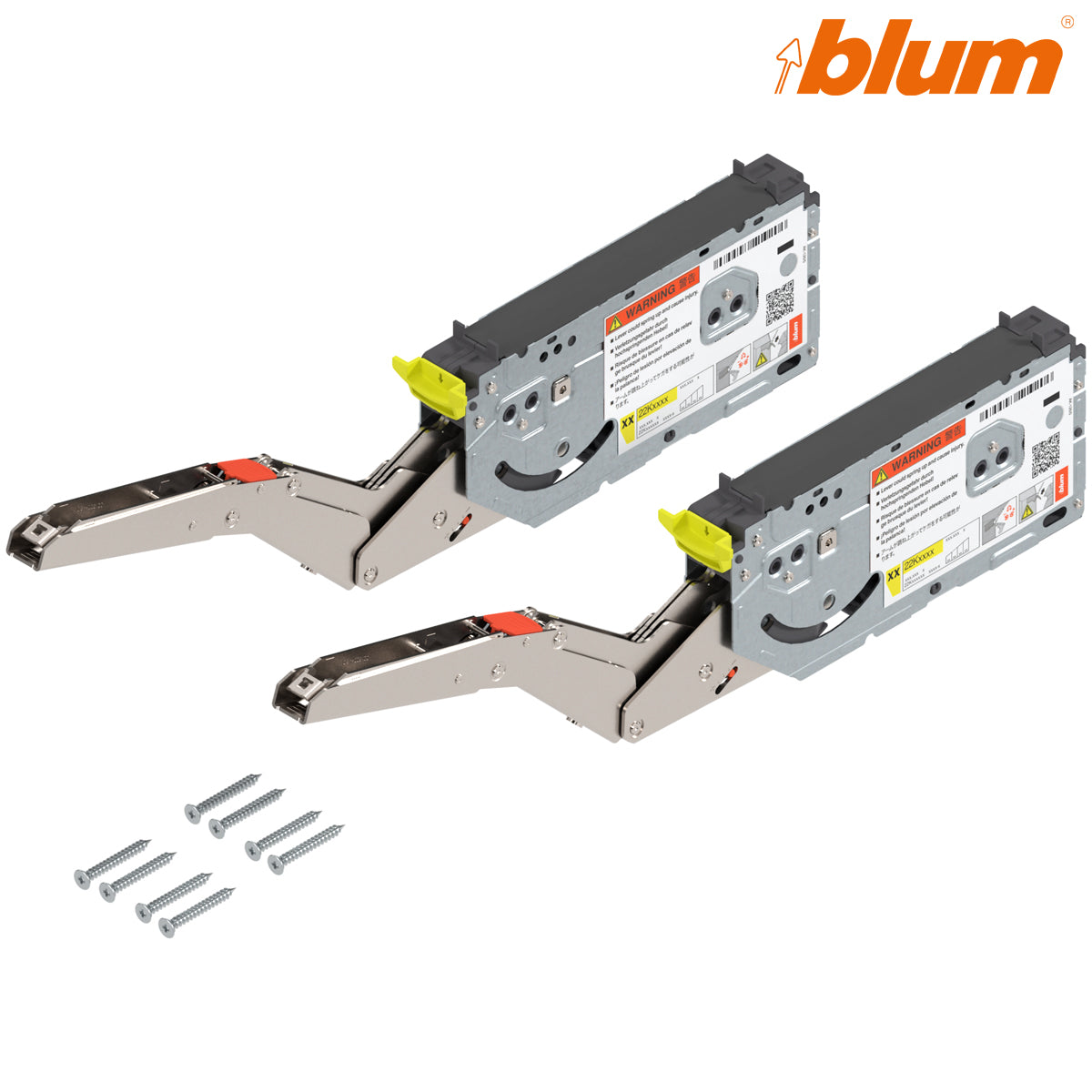

  • Two symmetrical Blum AVENTOS HK top lift mechanisms
  • Eight 4 × 35mm wood screws

Cover caps, front-fixing brackets and other application-specific components must be selected separately unless expressly listed as included on this product page. Browse the complete Blum AVENTOS HK top range for compatible accessories, including AVENTOS HK top cover caps.

Frequently asked questions

What is the Blum 22K2500 used for?

It is an AVENTOS HK top stay-lift mechanism set for a single-piece cabinet front that opens upwards.

What does 930–2800 mean?

It is the mechanism’s power-factor range, not a weight measurement. Power factor is calculated using the cabinet height and complete front weight.

Does this mechanism provide soft closing?

Yes. Integrated Blum BLUMOTION provides smooth, quiet and controlled closing.

How many lift mechanisms are supplied?

The Blum 22K2500 set contains two symmetrical lift mechanisms.

Can the opening angle be adjusted?

Yes. The integrated opening-angle limiter can be continuously adjusted between 75° and 107°.

Are cover caps and front fixings included?

No. The appropriate cover caps and front-fixing brackets are separate unless the product page expressly states otherwise.

Is this the TIP-ON push-to-open version?

No. This is the standard 22K2500 BLUMOTION mechanism. The TIP-ON version has a different article number.

TECHNICAL DETAILS

  • Colour: Zinc
