Blum AVENTOS HK top 22K2700 Lift Mechanism 1730–5200

Blum AVENTOS HK top 22K2700 Lift Mechanism 1730–5200

Stock Code: HI22K2700

£47.03 GBP
Sale
View full details

PRODUCT DESCRIPTION

The Blum AVENTOS HK top 22K2700 lift mechanism set provides controlled upward opening for single-piece cabinet fronts. Designed for a power-factor range of 1730–5200, it is suitable for wall cabinets and overhead storage requiring dependable support, smooth movement and convenient access.

Integrated BLUMOTION provides soft, quiet and controlled closing. When correctly selected and adjusted for the cabinet front, the AVENTOS HK top system allows the door to open with minimal effort and remain securely in the chosen position.

Compact upward-opening cabinet system

AVENTOS HK top raises the complete cabinet front upwards and keeps it clear of the working area. The system does not require conventional cabinet hinges, helping create a clean and practical lift-up arrangement for kitchens, utility rooms and fitted furniture.

An integrated opening-angle limiter can be continuously adjusted between 75° and 107°. This helps control the front's travel when the cabinet is positioned near a ceiling, cornice or another potential obstruction.

Selecting the correct power factor

The Blum 22K2700 covers a power-factor range of 1730–5200. Calculate power factor by multiplying the cabinet height in millimetres by the complete front weight in kilograms, including the handle. Accurate calculation is essential when selecting an AVENTOS lift mechanism.

Confirm the cabinet dimensions, front construction and total weight before ordering. When the result falls within an overlapping or borderline range, refer to the latest Blum planning information before selecting the mechanism.

Key features

  • Genuine Blum AVENTOS HK top mechanism set
  • Blum article number 22K2700
  • Stock code HI22K2700
  • Power-factor range of 1730–5200
  • Integrated BLUMOTION soft-close action
  • For single-piece upward-opening cabinet fronts
  • Continuously adjustable opening angle from 75° to 107°
  • Suitable for cabinet heights from 205–600mm
  • Suitable for cabinet widths up to 1800mm
  • Two symmetrical zinc lift mechanisms
  • Balanced movement with variable stopping positions
  • No conventional cabinet hinges required

Product details

  • Manufacturer: Blum
  • Range: AVENTOS HK top
  • Blum article number: 22K2700
  • Stock code: HI22K2700
  • Mechanism type: Stay lift
  • Power factor: 1730–5200
  • Closing action: Integrated BLUMOTION
  • Opening angle: 75°–107°, continuously adjustable
  • Cabinet height: 205–600mm
  • Maximum cabinet width: 1800mm
  • Maximum front weight: 18kg with two mechanisms, subject to power-factor selection
  • Finish: Zinc

Set contents

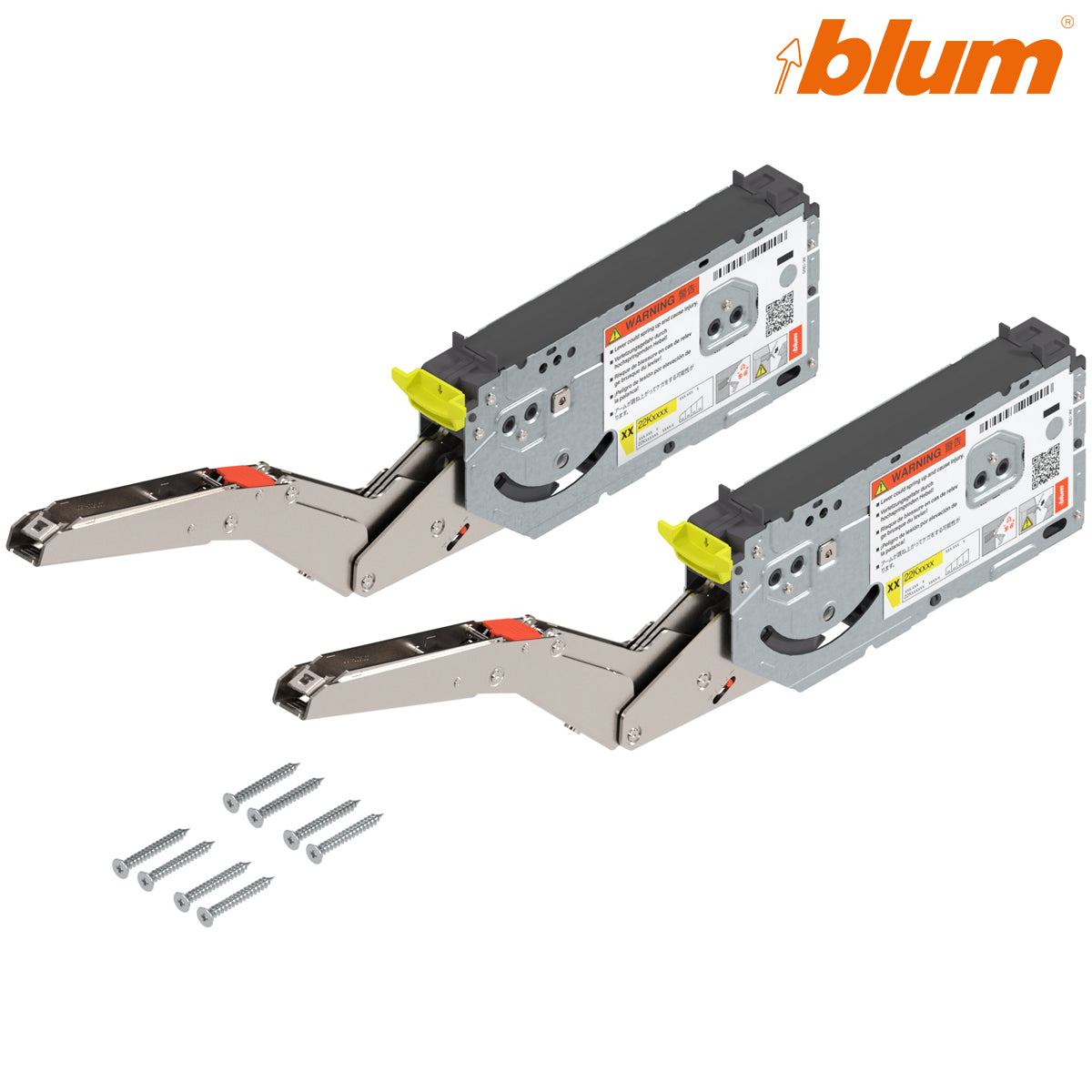

  • Two symmetrical Blum AVENTOS HK top lift mechanisms
  • Eight 4 × 35mm wood screws

Cover caps, front-fixing brackets and other application-specific components must be selected separately unless expressly listed as included on this product page.

To complete your installation, browse the full Blum AVENTOS HK top range, find compatible AVENTOS HK top cover caps, or view the adjacent 22K2500 mechanism for power factor 0930–2800.

Frequently asked questions

What is the Blum 22K2700 used for?

It is an AVENTOS HK top stay-lift mechanism set for a single-piece cabinet front that opens upwards.

What does 1730–5200 mean?

It is the mechanism's power-factor range, not a weight measurement. Power factor is calculated using the cabinet height and complete front weight.

Does the mechanism provide soft closing?

Yes. Integrated Blum BLUMOTION provides smooth, quiet and controlled closing.

How many lift mechanisms are supplied?

The Blum 22K2700 set contains two symmetrical lift mechanisms.

Are conventional cabinet hinges required?

No. AVENTOS HK top does not require conventional hinges, but the correct front-fixing brackets and other installation components are required.

Can the opening angle be adjusted?

Yes. The standard 22K2700 mechanism has a continuously adjustable opening range from 75° to 107°.

Are cover caps and front fixings included?

No. Appropriate cover caps and front-fixing brackets are separate unless the product page expressly states otherwise.

Is this the TIP-ON version?

No. This is the standard 22K2700 mechanism with integrated BLUMOTION. The TIP-ON model uses a different article number.

TECHNICAL DETAILS

  • Colour: Zinc
