Name: Blum AVENTOS HK top TIP-ON 22K2300T Lift 0420–1610
Brand: JULIUS BLUM UK LTD
SKU: HI22KT2300
Price: 50.23 GBP
Availability: InStock

PRODUCT DESCRIPTION

The Blum AVENTOS HK top TIP-ON 22K2300T lift mechanism set is designed for handleless, single-piece cabinet fronts that open upwards. Covering a power-factor range of 420–1610, it combines compact cabinet installation with mechanical push-to-open operation when used with the appropriate Blum TIP-ON components.

A light press on the handleless front activates the TIP-ON opening support, allowing the cabinet door to be raised comfortably. When correctly adjusted, the AVENTOS mechanism provides balanced movement and allows the front to remain in the selected open position.

TIP-ON opening for handleless cabinets

Blum TIP-ON provides mechanical opening support without requiring an electrical connection. This makes the system suitable for contemporary handleless kitchen wall units, fitted furniture and overhead cupboards.

This product is the TIP-ON lift mechanism set. The compatible TIP-ON plunger and catch plate, cover caps and application-specific front-fixing brackets must be selected separately unless expressly stated as included on this product page.

Selecting the correct power factor

The Blum 22K2300T covers a power-factor range of 420–1610. Calculate the power factor by multiplying the cabinet height in millimetres by the complete front weight in kilograms. For a handleless TIP-ON installation, use the complete weight of the cabinet front and all attached components.

Cabinet dimensions, front construction and weight must be checked before ordering. If the calculation falls within an overlapping or borderline area, refer to the latest Blum planning information before selecting the mechanism.

Key features

Genuine Blum AVENTOS HK top TIP-ON mechanism set
Blum article number 22K2300T
Stock code HI22KT2300
For handleless, single-piece upward-opening fronts
Mechanical push-to-open support
No electrical connection required
Power-factor range of 420–1610
Continuously adjustable opening angle from 75° to 107°
Suitable for cabinet heights from 205–600mm
Suitable for cabinet widths up to 1800mm
Two symmetrical zinc lift mechanisms

Product details

Manufacturer: Blum
Range: AVENTOS HK top
Blum article number: 22K2300T
Stock code: HI22KT2300
Mechanism type: TIP-ON stay lift
Opening system: Mechanical push to open
Power factor: 420–1610
Opening angle: 75°–107°, continuously adjustable
Cabinet height: 205–600mm
Maximum cabinet width: 1800mm
Maximum front weight: 18kg with two mechanisms, subject to power-factor selection
Finish: Zinc

Set contents

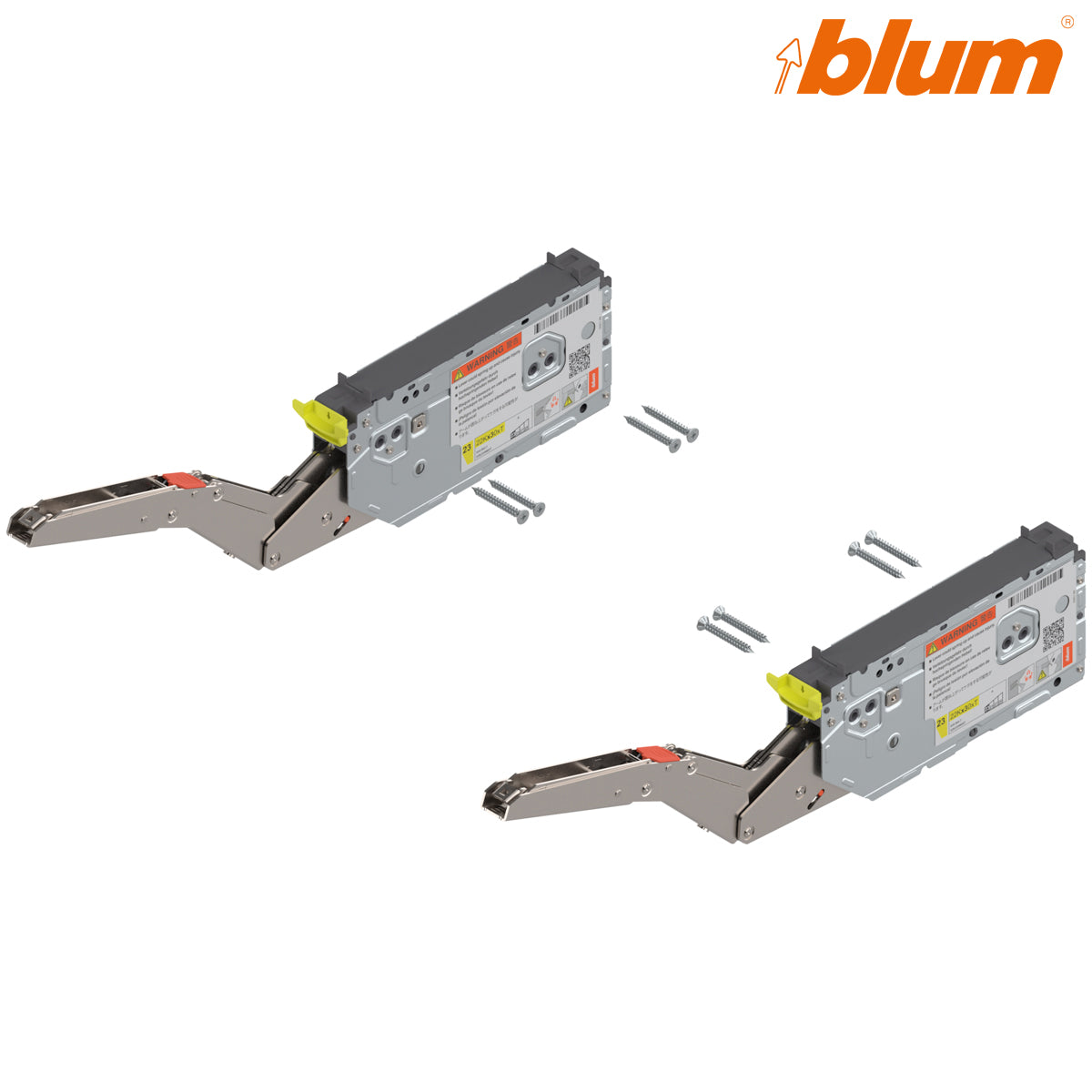

Two symmetrical Blum AVENTOS HK top TIP-ON lift mechanisms
Eight 4 × 35mm wood screws

Check the product contents before installation. The TIP-ON plunger and catch plate, cover caps and suitable front-fixing brackets must be selected separately unless expressly stated as included. Browse the complete Blum AVENTOS HK top range for compatible accessories.

Frequently asked questions

What is the Blum 22K2300T used for?

It is an AVENTOS HK top lift mechanism set for handleless, single-piece cabinet fronts that open upwards.

What does 420–1610 mean?

It is the power-factor range, not a weight measurement. The correct power factor is calculated using the cabinet height and complete front weight.

How does TIP-ON work?

A light press on the handleless front activates the mechanical TIP-ON opening support. The appropriate TIP-ON plunger and catch components are required.

Does this mechanism require electricity?

No. TIP-ON is a mechanical opening system and does not require a power supply.

Does this TIP-ON version include BLUMOTION?

No. This is the dedicated TIP-ON mechanism for handleless push-to-open operation and must not be described as the BLUMOTION version.

Are the TIP-ON plunger and cover caps included?

They are separate components unless the product page expressly confirms their inclusion.
