HOMEPAGE > BLUM AVENTOS HK TOP TIP-ON 22K2500T LIFT 0930–2800

  • Blum AVENTOS HK top TIP-ON 22K2500T zinc lift mechanism set for power factor 930–2800
1 1

Blum AVENTOS HK top TIP-ON 22K2500T Lift 0930–2800

Blum AVENTOS HK top TIP-ON 22K2500T Lift 0930–2800

Stock Code: HI22KT2500

£50.23 GBP
Sale
View full details

PRODUCT DESCRIPTION

The Blum AVENTOS HK top TIP-ON 22K2500T lift mechanism set provides mechanical push-to-open operation for handleless, single-piece cabinet fronts. Covering a power-factor range of 930–2800, it is suitable for overhead cupboards and kitchen wall units requiring convenient access without handles or electrical opening equipment.

When used with the appropriate Blum TIP-ON plunger and catch components, a light press on the cabinet front initiates opening. Once the mechanism is correctly selected and adjusted, the front moves smoothly upwards and can remain securely in the chosen open position.

Mechanical opening for handleless fronts

Blum TIP-ON provides push-to-open functionality through a mechanical system, so no electrical connection or power supply is required. It is a practical choice for contemporary handleless cabinets in kitchens, utility rooms, living spaces and fitted furniture installations.

This product is the TIP-ON lift mechanism set. The compatible TIP-ON plunger and catch plate, cover caps and application-specific front-fixing brackets are separate components unless they are expressly listed as included on the product page.

Selecting the correct power factor

The Blum 22K2500T covers a power-factor range of 930–2800. Power factor is calculated by multiplying the cabinet height in millimetres by the complete cabinet-front weight in kilograms. Use the full weight of the front and all attached components when making the calculation.

Cabinet dimensions, front construction and total weight must be checked before ordering. If the calculated power factor falls within an overlapping or borderline range, consult the latest Blum planning information before selecting the mechanism.

Key features

  • Genuine Blum AVENTOS HK top TIP-ON mechanism set
  • Blum article number 22K2500T
  • Stock code HI22KT2500
  • For handleless, single-piece upward-opening fronts
  • Mechanical push-to-open support
  • No electrical connection required
  • Power-factor range of 930–2800
  • Continuously adjustable opening angle from 75° to 107°
  • Suitable for cabinet heights from 205–600mm
  • Suitable for cabinet widths up to 1800mm
  • Two symmetrical zinc lift mechanisms
  • Balanced movement with variable stopping positions

Product details

  • Manufacturer: Blum
  • Range: AVENTOS HK top
  • Blum article number: 22K2500T
  • Stock code: HI22KT2500
  • Mechanism type: TIP-ON stay lift
  • Opening system: Mechanical push to open
  • Power factor: 930–2800
  • Opening angle: 75°–107°, continuously adjustable
  • Cabinet height: 205–600mm
  • Maximum cabinet width: 1800mm
  • Maximum front weight: 18kg with two mechanisms, subject to power-factor selection
  • Finish: Zinc

Set contents

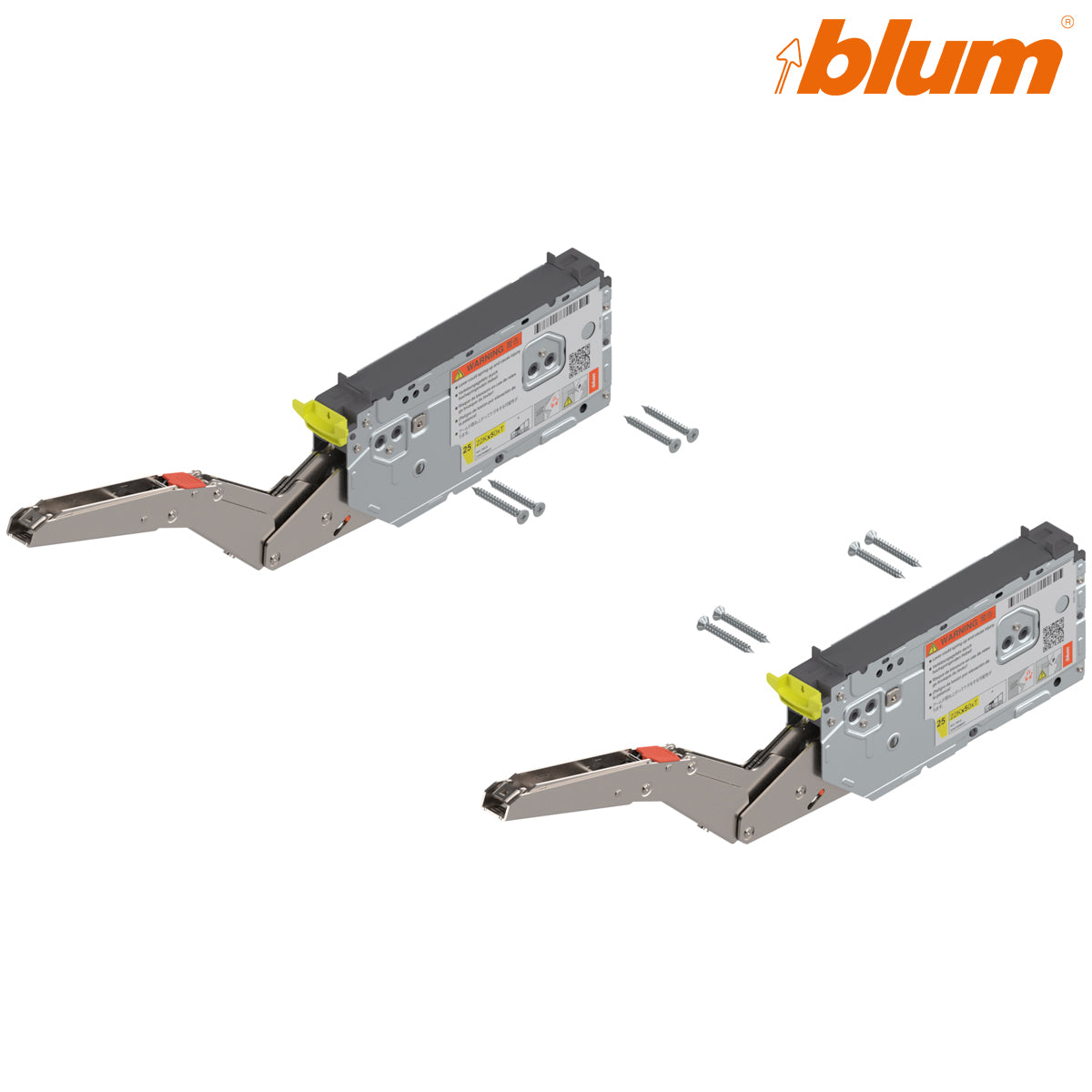

  • Two symmetrical Blum AVENTOS HK top TIP-ON lift mechanisms
  • Eight 4 × 35mm wood screws

Check the product contents before installation. The TIP-ON plunger and catch plate, cover caps and appropriate front-fixing brackets must be selected separately unless expressly stated as included. Browse the complete Blum AVENTOS HK top range for compatible accessories.

Frequently asked questions

What is the Blum 22K2500T used for?

It is an AVENTOS HK top lift mechanism set for handleless, single-piece cabinet fronts that open upwards.

What does 930–2800 mean?

It is the mechanism’s power-factor range, not a weight measurement. Power factor is calculated using the cabinet height and complete front weight.

How does TIP-ON open the cabinet?

A light press on the handleless front activates the mechanical TIP-ON opening support when the correct plunger and catch components are installed.

Does this mechanism require electricity?

No. Blum TIP-ON is a mechanical opening system and does not require a power supply.

Does this TIP-ON mechanism have BLUMOTION?

No. This is the dedicated TIP-ON mechanism and must not be described as the BLUMOTION soft-close version.

Can the opening angle be adjusted?

Yes. The integrated opening-angle limiter can be continuously adjusted between 75° and 107°.

Are the TIP-ON plunger and cover caps included?

They are separate components unless the product page expressly confirms their inclusion.

TECHNICAL DETAILS

  • Colour: Zinc
