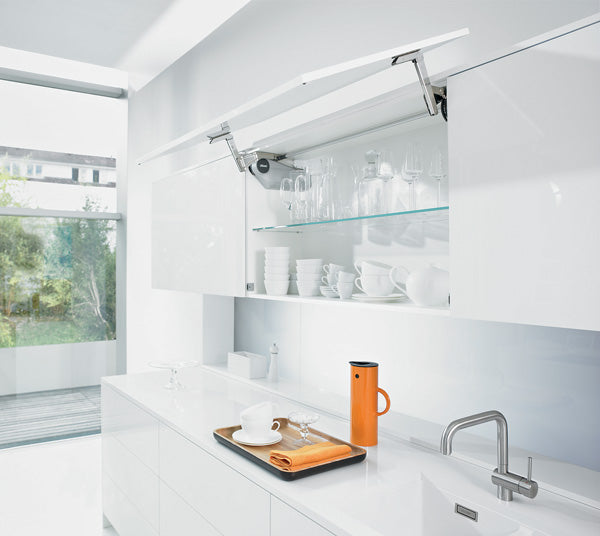

The Blum AVENTOS HS lift mechanism A 20S1A00 is a stay-lift system for single-piece overhead cabinet fronts with a height of 350–525mm and a total front weight of 2–5kg. The front rises upward and stays open horizontally, giving full, unobstructed access to the cabinet interior.

AVENTOS HS is Blum’s up-and-over lift system. Unlike parallel-lift systems, the front swings upward and over the cabinet, making it well suited to wall units where the front needs to clear the worktop or appliances below.

Key features

• Genuine Blum AVENTOS HS lift mechanism set
• Blum article number 20S1A00
• Stock code HI20S1A00
• For cabinet front heights 350–525mm, total front weight 2–5kg
• Up-and-over stay-lift movement
• Front holds securely in the open position
• One pair of mechanisms supplied as a set

Front weight selection

Select the correct mechanism using the total front weight including the handle. For 350–525mm cabinet height:

Always confirm front weight and cabinet height using the Blum Product Configurator before ordering.

Required separately

• 20S4200 front fixing brackets (wood screw-on) or 20S4200A (aluminium frame)
• 20Q1061U round cross-stabiliser rod, cut to the required cabinet width
• 20Q153ZN cross-stabiliser connecting piece for cabinets 1190mm wide and above
• Compatible AVENTOS HS cover cap set (Silk White or Light Grey)

Product details

• Manufacturer: Blum
• Range: AVENTOS HS
• Blum article number: 20S1A00
• Stock code: HI20S1A00
• Front height range: 350–525mm
• Front weight range: 2–5kg
• Movement: Up-and-over stay lift
• Barcode: 9002617664577

Browse the full Blum AVENTOS HS range or use the Blum Product Configurator to verify your complete specification.

Frequently asked questions

What is the Blum AVENTOS HS Lift Mechanism A 20S1A00 used for?

It is a stay-lift system for single-piece overhead cabinet fronts 350–525mm high with a total front weight of 2–5kg. The front rises upward and stays open horizontally.

What is the difference between 20S1A00 and 20S2A00?

Both cover the 350–525mm height range. 20S1A00 is an earlier-generation mechanism; 20S2A00 is the current generation. Verify which generation your installation requires before ordering.

Are the front fixing brackets included?

No. Front fixing brackets, cross-stabiliser rod, connecting piece and cover caps must be ordered separately.

How many mechanisms are supplied?

One pair (left and right) is supplied as a set.
