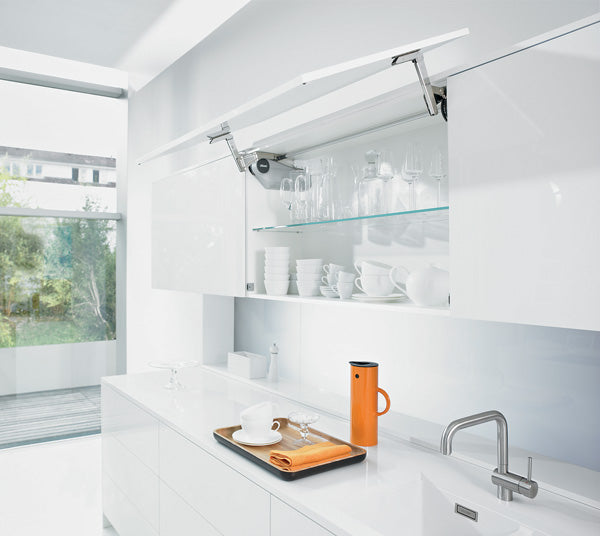

The Blum AVENTOS HS lift mechanism F 20S1F00 is a stay-lift system for single-piece overhead cabinet fronts with a height of 526-675mm and a total front weight of 10-19kg. The front rises upward and stays open horizontally, giving full, unobstructed access to the cabinet interior. Mechanism F is the heaviest-duty variant in the HS range for this height class.

AVENTOS HS is Blum's up-and-over lift system. Unlike parallel-lift systems, the front swings upward and over the cabinet, making it well suited to wall units where the front needs to clear the worktop or appliances below.

Key features

• Genuine Blum AVENTOS HS lift mechanism set
• Blum article number 20S1F00
• Stock code HI20S1F00
• For cabinet front heights 526-675mm, total front weight 10-19kg
• Up-and-over stay-lift movement
• Front holds securely in the open position
• One pair of mechanisms supplied as a set

Front weight selection
Select the correct mechanism using the total front weight including the handle. For 526-675mm cabinet height:

Always confirm front weight and cabinet height using the Blum Product Configurator before ordering.

Required separately

• 20S4200 front fixing brackets (wood screw-on) or 20S4200A (aluminium frame)
• 20Q1061U round cross-stabiliser rod, cut to the required cabinet width
• 20Q153ZN cross-stabiliser connecting piece for cabinets 1190mm wide and above
• Compatible AVENTOS HS cover cap set (Silk White or Light Grey)

Product details

• Manufacturer: Blum
• Range: AVENTOS HS
• Blum article number: 20S1F00
• Stock code: HI20S1F00
• Front height range: 526-675mm
• Front weight range: 10-19kg
• Movement: Up-and-over stay lift
• Barcode: 9002617664652

Browse the full Blum AVENTOS HS range or use the Blum Product Configurator to verify your complete specification.

Frequently asked questions

What is the Blum AVENTOS HS Lift Mechanism F 20S1F00 used for?
It is a stay-lift system for single-piece overhead cabinet fronts 526-675mm high with a total front weight of 10-19kg.

Are the front fixing brackets included?
No. Front fixing brackets, cross-stabiliser rod, connecting piece and cover caps must be ordered separately.

How many mechanisms are supplied?
One pair (left and right) is supplied as a set.
