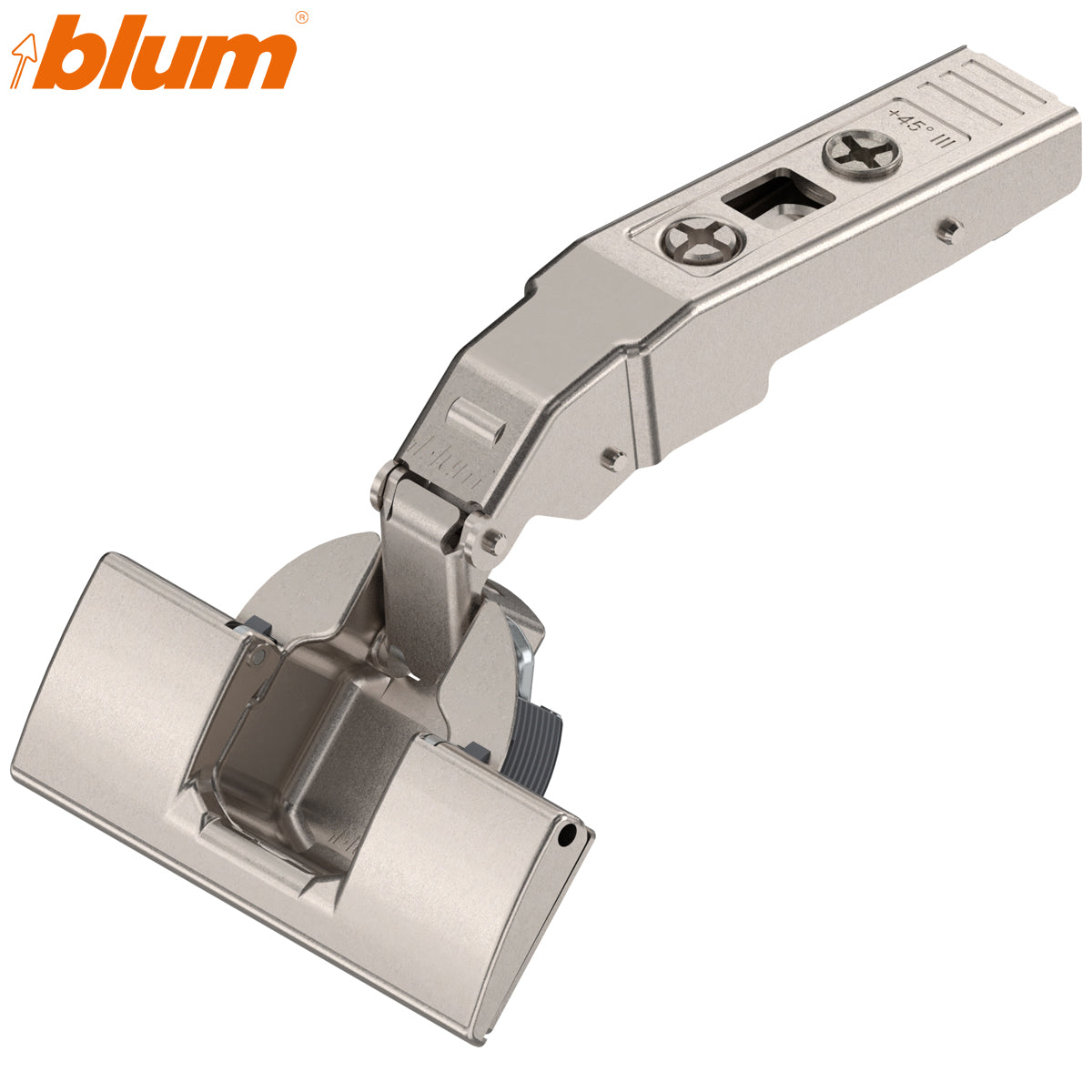

Blum 79A9498BT CLIP top +45° Type III Maximum-Overlay INSERTA Hinge – Nickel

The Blum 79A9498BT CLIP top angled hinge is designed for specialist +45° Type III maximum-overlay cabinet applications. Its distinctive hinge-arm geometry positions the cabinet door correctly on a sharply angled or diagonal cabinet front where an ordinary straight concealed hinge cannot be used.

This specialist hinge is particularly useful for diagonal kitchen corner cabinets, angled furniture, display units and bespoke cabinetry constructed with a positive 45° cabinet angle.

The hinge provides a 95° door opening angle and contains a closing spring that pulls the door into its closed position. It is self-closing but does not include integrated BLUMOTION soft-close damping.

+45° application with a 95° door opening

The +45° measurement describes the cabinet geometry—not the distance through which the door opens. When correctly planned and installed, the cabinet door opens to approximately 95°.

Type III identifies the hinge-arm arrangement used to create a maximum-overlay door position. The final overlay depends on the mounting plate, drilling distance, door thickness and precise cabinet angle.

Tool-free INSERTA cup fixing

The 79A9498BT uses Blum’s INSERTA hinge-cup fixing. After the complete drilling pattern has been prepared, the hinge is positioned in the door and secured by closing its integrated locking mechanism. The expanding fixings hold the cup securely without conventional cup-fixing screws.

INSERTA does not eliminate drilling. The cabinet door still requires a correctly positioned 35mm hinge-cup hole and the associated INSERTA fixing holes.

Key features

• Genuine Blum CLIP top angled cabinet hinge
• Blum manufacturer part number: 79A9498BT
• Hart Wholesale stock code: HI79A9498REA
• GTIN: 9002617648188
• Designed for +45° Type III angled applications
• Maximum-overlay hinge-arm geometry
• 95° door opening angle
• Sprung and self-closing
• No integrated BLUMOTION soft-close damping
• Tool-free INSERTA hinge-cup fixing
• 35mm hinge-cup diameter
• Approximately 13mm cup drilling depth
• Tool-free CLIP attachment to the mounting plate
• Three-dimensional cabinet-door adjustment
• Convenient spiral-screw depth adjustment
• Nickel-plated steel construction
• Supplied as one hinge
• Mounting plate sold separately

Technical specification

Careful planning is essential

Angled cabinet hinges should not be chosen from the nominal angle alone. The correct mounting-plate height and fixing position depend on the exact cabinet angle, required overlay, door thickness and drilling distance.

Blum’s planning information covers neighbouring angles as well as the nominal 45° application, and some configurations require an angled spacer or a mounting plate positioned away from the standard fixing location. A trial installation or confirmation through the Blum Product Configurator is recommended before drilling a complete set of doors.

Compatible products and alternatives

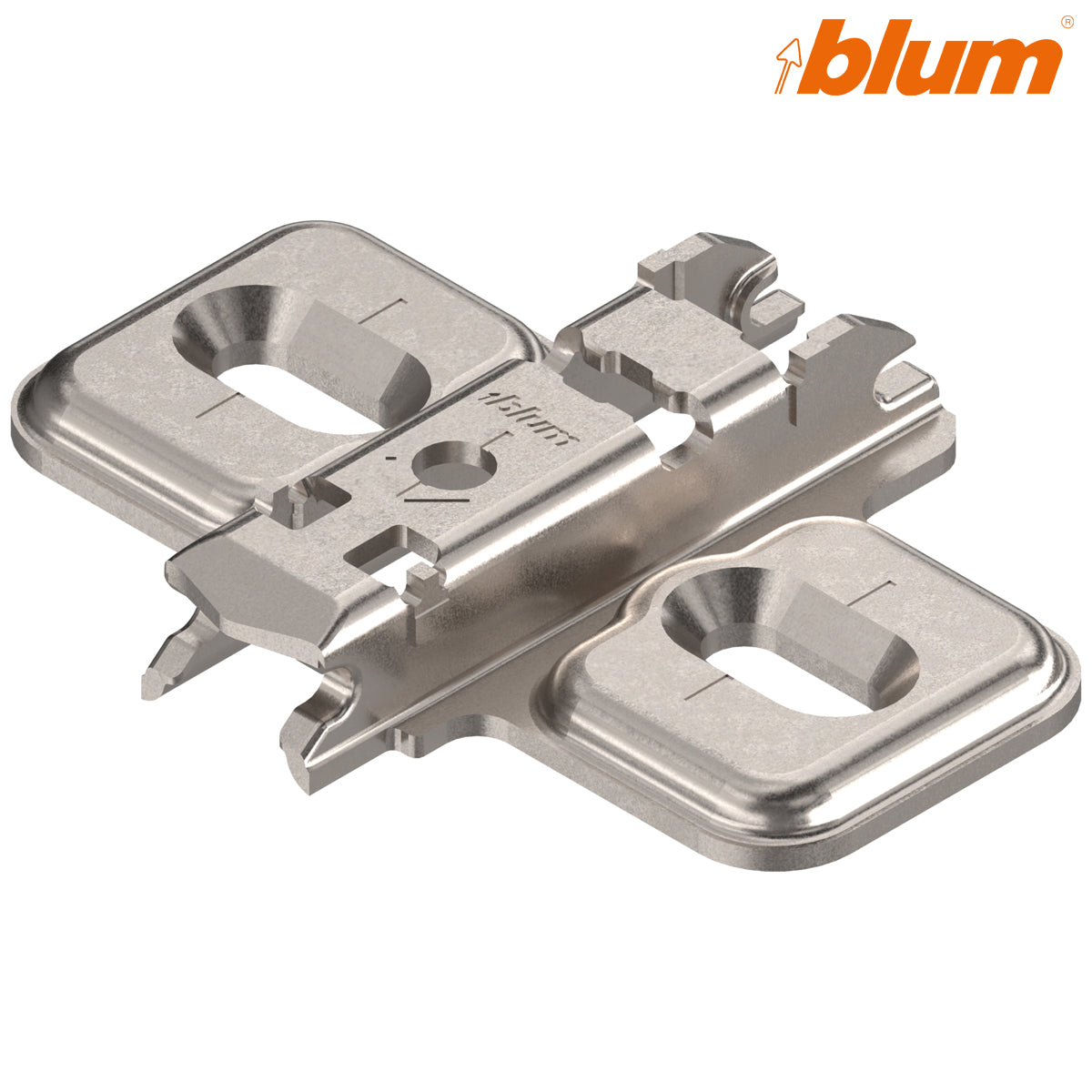

• Blum 0mm CLIP cruciform mounting plate
• Blum 79A9458T +45° Type III sprung screw-on hinge
• Blum 79B9458 +45° Type III BLUMOTION screw-on hinge
• Blum 79A9496BT +30° Type III INSERTA hinge
• View all Blum CLIP top hinges

Frequently asked questions

Does +45° refer to the opening angle?

No. +45° describes the angled cabinet application. The cabinet door opens to approximately 95°.

Is the Blum 79A9498BT self-closing?

Yes. It is a sprung hinge that pulls the door into its closed position.

Does this hinge include BLUMOTION?

No. It is self-closing but does not contain integrated soft-close damping. The 79B9458 is the corresponding +45° Type III screw-on hinge with integrated BLUMOTION.

What does Type III mean?

Type III identifies the specialist hinge-arm geometry used to create the maximum-overlay arrangement on the angled cabinet.

What does maximum overlay mean?

It means the hinge is designed to provide the greatest appropriate door coverage for this Type III angled arrangement. It is not one universal fixed overlay measurement.

What does INSERTA mean?

INSERTA is Blum’s tool-free method of securing the hinge cup into a correctly prepared door drilling pattern without conventional cup-fixing screws.

Are INSERTA back plates sold separately?

No. The INSERTA locking components are incorporated into the hinge cup. The cabinet-side CLIP mounting plate is the separately purchased component.

Why are 79A9498BT and HI79A9498REA both shown?

79A9498BT is the Blum manufacturer part number. HI79A9498REA is Hart Wholesale’s stock code for this product.

Is the mounting plate included?

No. A compatible Blum CLIP mounting plate must be selected and ordered separately.

Can this hinge replace an ordinary overlay hinge?

No. This is a specialist hinge for +45° Type III cabinet geometry and should only be used where that angled arrangement is required.

What is the difference between 79A9498BT and 79A9458T?

Both are sprung +45° Type III hinges. The 79A9498BT uses INSERTA cup fixing, while the 79A9458T uses a conventional screw-on hinge cup.

How many hinges are supplied?

The product is priced and supplied as one hinge.
