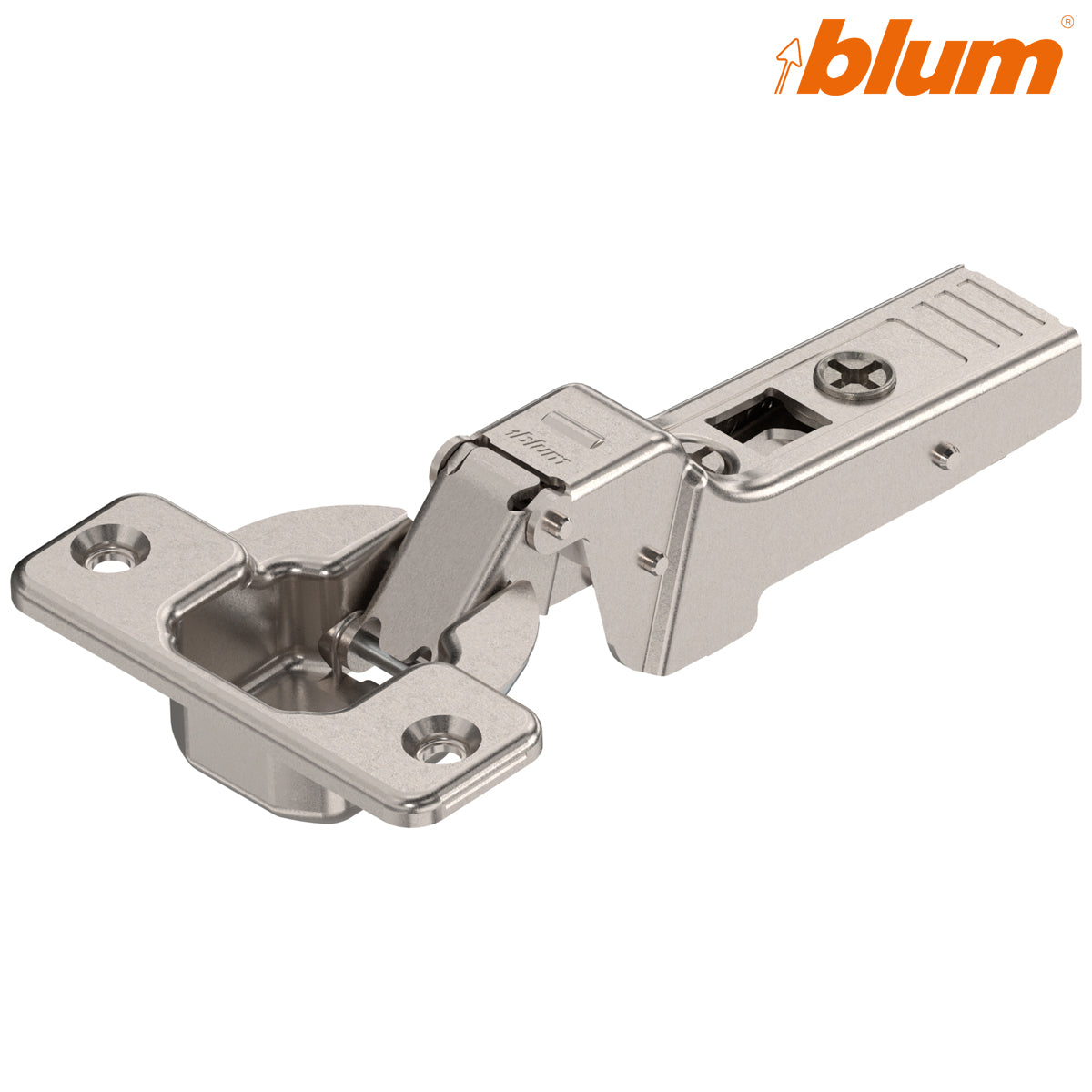

Blum 71T9650 CLIP top 95° Half-Overlay Thick-Door Screw-On Hinge, Nickel

Blum 71T9650 CLIP top 95° Half-Overlay Thick-Door Screw-On Hinge, Nickel

Stock Code: HI71T9650

£1.95 GBP
Sale
View full details

PRODUCT DESCRIPTION

Blum 71T9650 CLIP top 95° Half-Overlay Profile-Door Hinge

Fit two thick or profiled cabinet doors around a shared central partition with the Blum 71T9650. Its half-cranked arm is for a dual or half-overlay application, and its 95° profile-hinge geometry helps plan the movement of shaped fronts. This nickel-plated hinge has a sprung self-closing action, a screw-on door cup and no integrated BLUMOTION damping. One hinge is supplied; “dual” does not mean a two-hinge pack.

Allow for both doors at the shared partition

Front thickness, moulded edge radius, cup position, plate height and the gap between neighbouring doors all affect movement. The existing planning information covers fronts up to 32 mm in suitable configurations; it is not a blanket guarantee for any thick door. Confirm the Blum 71T9650 fitting diagram and trial-fit unusual profiles before preparing every door. A 95° nominal angle alone does not guarantee that a handle or adjacent cabinet will be cleared.

Screw-on cup and separate cabinet plate

Secure the cup with suitable screws in a correctly prepared door. The CLIP arm attaches to a compatible Blum cabinet mounting plate, which must be selected and purchased separately for the shared-panel layout. The fitted door can be released at the CLIP connection without removing the screw-on cup; cabinet-side adjustment depends on the selected plate.

Choosing the right closing action

The spring pulls the door closed but does not soften the final movement. For a different closing action, compare the corresponding integrated-BLUMOTION 71B9650 or an appropriate unsprung push-to-open version, checking exact cup drilling and application before substitution. Do not assume a separate damper fits this hinge without an exact compatibility reference.

Key details

  • Blum part 71T9650; Hart Wholesale SKU HI71T9650; barcode 9002617451207
  • 95° CLIP top hinge for half-overlay/dual thick or profiled cabinet doors
  • Sprung self-closing; no integrated BLUMOTION
  • Nickel finish; screw-on door cup; one hinge
  • Compatible cabinet-side mounting plate sold separately

Browse Blum CLIP top hinges for the corresponding door applications.

Frequently Asked Questions

What does dual or half-overlay mean?

Two doors share a central partition, each covering part of the panel. It does not mean two hinges in the pack.

Is 71T9650 soft closing?

No. It has a closing spring without integrated BLUMOTION damping.

Does a 32 mm door always fit?

No. Suitability depends on its edge profile, drilling distance, plate and required gap; use the exact fitting plan.

How is the hinge fixed to the door?

It has a screw-on cup, not an INSERTA or knock-in cup.

Is a mounting plate included?

No. Choose a compatible CLIP mounting plate separately.

Can this sprung hinge be used as an unsprung TIP-ON hinge?

No. Its spring pulls the door towards closed. Select the appropriate unsprung hinge and plan the entire push-to-open application.

TECHNICAL DETAILS

  • Application: Dual
  • Colour: Nickel
