Blum Cabinet Angle Gauge 65.5810.02 is a folding nylon template used to determine the angle of an angled cabinet application before choosing a suitable Blum hinge solution.

Position it against the cabinet, read the angle/application reference, then use current Blum planning information to identify the appropriate CLIP top or CLIP top BLUMOTION arrangement.

Key features and benefits

• Genuine Blum cabinet angle measuring template
• Listed Blum part number: 65.5810.02
• Hart stock code: JIG2004
• Determines cabinet angles and angled applications
• Helps identify the appropriate hinge solution

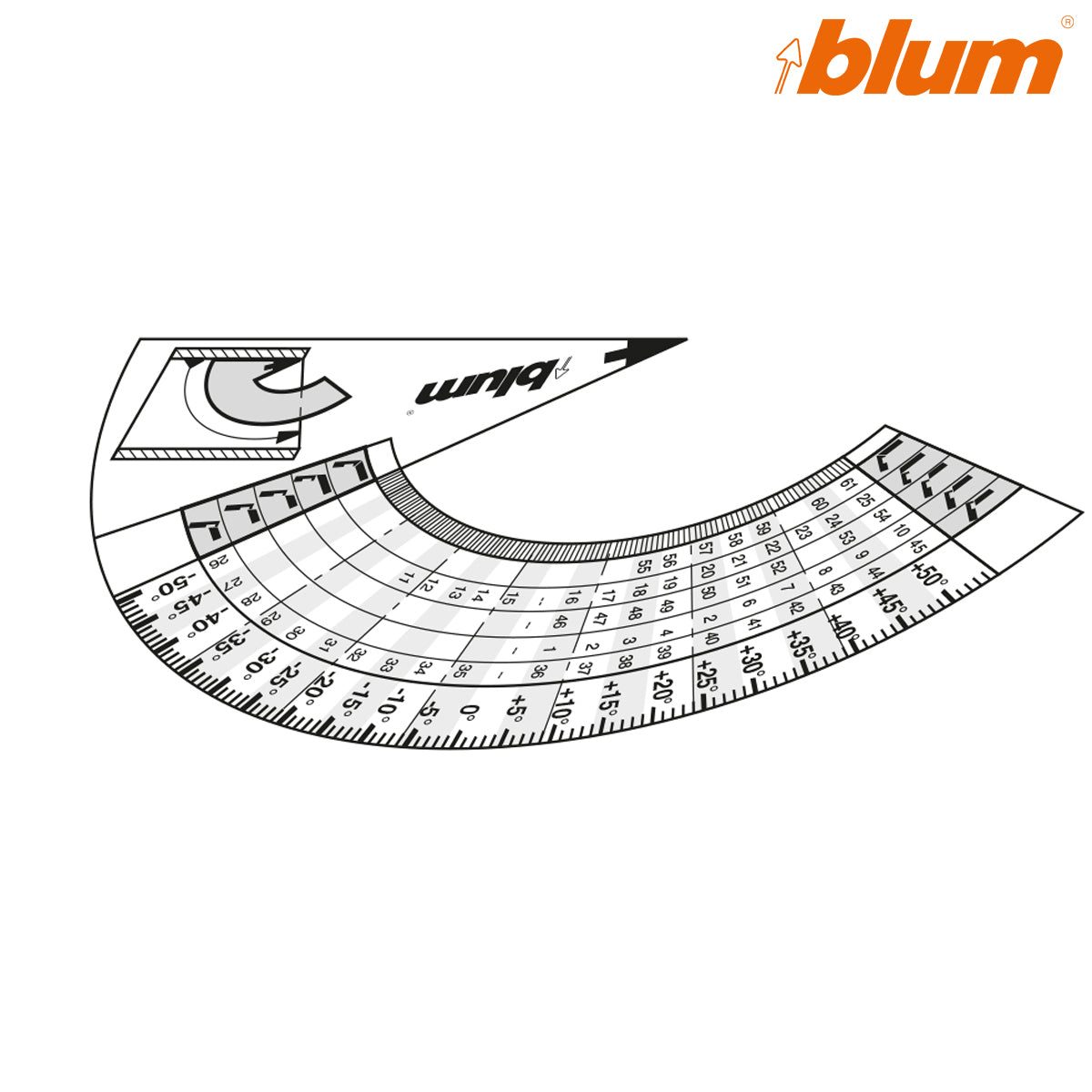

• Graduated scale visibly marked from -50° to +50°
• Application-reference grid for Blum planning data
• Folding format positions against angled cabinet surfaces
• Made from nylon
• Supplied as one cabinet angle template

What is the cabinet angle gauge used for?

Corner units and angled fronts can require a different hinge, mounting plate or arrangement. This gauge supplies the angle/reference needed to investigate the correct Blum solution.

Blum lists CLIP top BLUMOTION and CLIP top applications. Also consider front thickness, overlay, reveal, mounting plate and opening requirements.

What this tool does not do

• It does not drill or mark a 35 mm hinge-cup hole
• It does not drill mounting-plate fixing positions
• It does not select one hinge for every angled cabinet

How to use the angle template

1. Open and position it on the angled cabinet as Blum directs.
2. Hold both faces flush to the cabinet surfaces.
3. Note the angle and application reference.
4. Use the reading with Blum planning data or Product Configurator.
5. Confirm hinge, plate, overlay and drilling pattern before machining.

Use the correct application side and recheck before ordering. Test unusual geometry on a sample.

Suitable applications

• Angled kitchen and furniture cabinets
• Corner-unit hinge planning
• Positive and negative angled applications within the marked scale
• CLIP top BLUMOTION hinge planning
• CLIP top hinge planning
• Workshop or on-site hinge identification

Technical specifications

• Brand: Blum
• Product type: Cabinet angle measuring template
• Listed Blum part number: 65.5810.02
• Hart SKU: JIG2004
• Function: Determines cabinet angle and angled application
• Scale shown: -50° to +50°
• Compatible systems: CLIP top BLUMOTION and CLIP top planning
• Material: Nylon
• Colour: White with black markings
• Package quantity: 1 template
• GTIN: Not verified

Package contents

• 1 × Blum cabinet angle template, listed version 65.5810.02

Hinges, mounting plates, drilling jigs, drill bits and fixing screws are not included.

Related Blum tools and hinge guidance

• Browse Blum hinge systems
• Blum hinge-system drilling template 65.7500.03
• Blum EXPANDO/INSERTA hinge drilling template 65.059A
• All Blum assembly tools and jigs

Frequently asked questions

Planning reminder: Confirm the complete angled-hinge application before drilling doors or cabinets.
