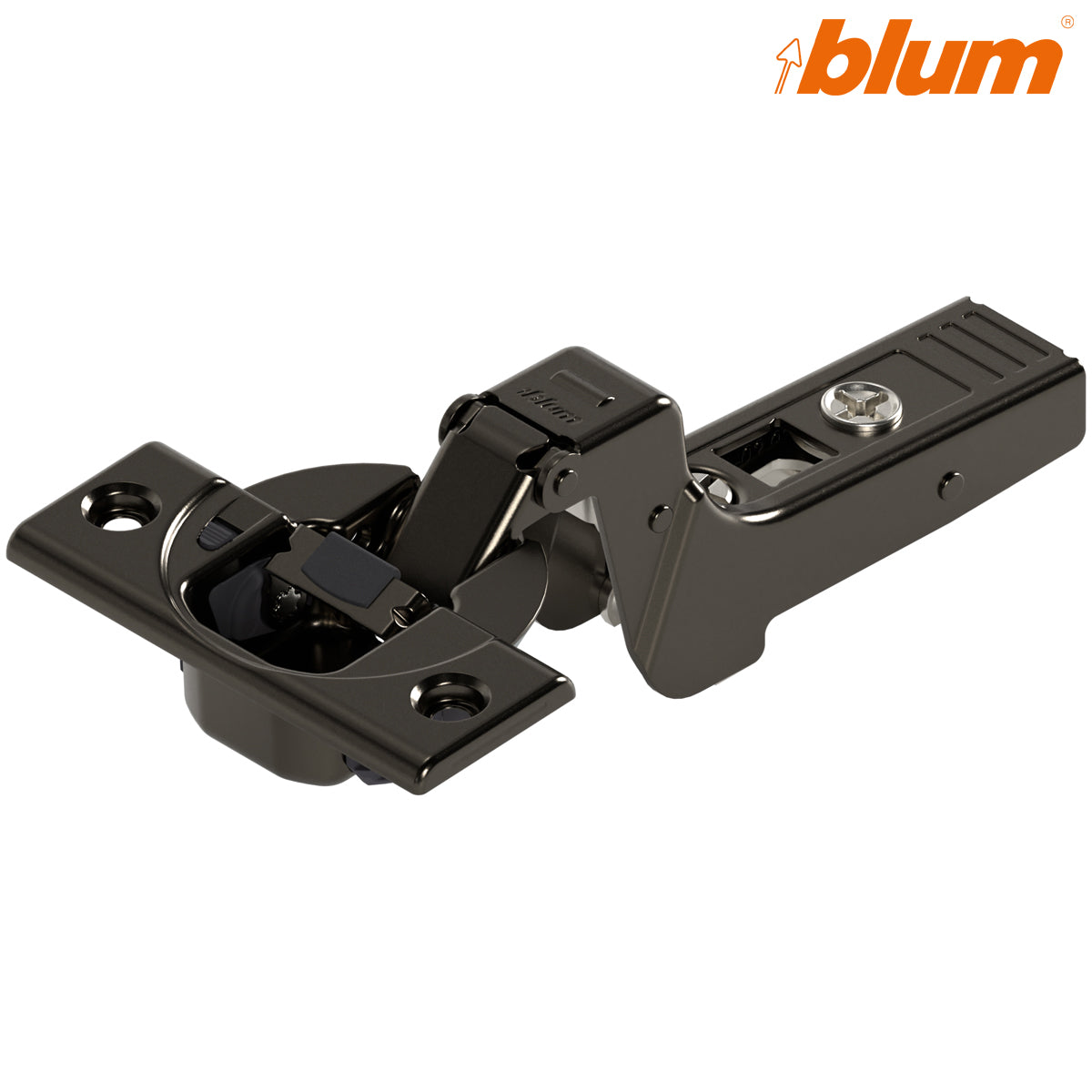

  • BLUM CLIP BLUMOTION PROFILE HINGE 95deg INSET SCREW-IN ONYX by JULIUS BLUM UK LTD
1 1

BLUM CLIP BLUMOTION PROFILE HINGE 95deg INSET SCREW-IN ONYX

BLUM CLIP BLUMOTION PROFILE HINGE 95deg INSET SCREW-IN ONYX

Stock Code: HIO71B9750

£4.03 GBP
Sale
View full details

PRODUCT DESCRIPTION

Blum CLIP top BLUMOTION 95° Thick-Door INSERTA Hinge – Onyx Black

The Blum 71B9590 CLIP top BLUMOTION hinge is a specialist concealed hinge for thick or heavily profiled overlay cabinet doors. Its 95° opening geometry provides additional door-edge clearance in applications where a conventional 110° hinge may cause a thick or moulded door to contact the cabinet side.

Integrated BLUMOTION soft-close technology provides smooth, quiet and controlled closing without requiring a separate damper. The BLUMOTION mechanism can also be switched off when reduced damping is required for smaller or lighter doors.

The INSERTA tool-free cup fixing allows the hinge to be secured into a correctly machined door without conventional hinge-cup screws. Combined with Blum’s CLIP mounting-plate connection, this provides fast hinge installation and tool-free door attachment and removal.

Key features

  • Genuine Blum CLIP top BLUMOTION profile-door hinge
  • Designed for thick and profiled overlay cabinet doors
  • Controlled 95° opening angle
  • Straight hinge arm for overlay applications
  • Integrated BLUMOTION soft-close mechanism
  • BLUMOTION can be deactivated when required
  • INSERTA tool-free hinge-cup fixing
  • CLIP tool-free door attachment and removal
  • Three-dimensional adjustment with the appropriate mounting plate
  • 35mm steel hinge cup
  • Two 8mm INSERTA fixing holes on 45mm centres
  • Premium Onyx Black finish
  • Compatible mounting plate sold separately

Technical specification

Manufacturer Blum
Manufacturer part number 71B9590
Hart Wholesale stock code HIO71B9590
EAN/GTIN 9009494202991
Product range CLIP top BLUMOTION
Application Thick or profiled overlay cabinet door
Hinge-arm type Straight arm
Opening angle 95°
Closing action Sprung with integrated, switchable BLUMOTION
Hinge-cup fixing INSERTA tool-free fixing
Hinge-cup diameter 35mm
Minimum cup depth 13mm
INSERTA fixing holes Two 8mm holes on 45mm centres
Cup boring distance Approximately 3–7mm, subject to application planning
Typical door thickness Approximately 16–30mm, subject to application planning
Side adjustment ±2mm
Depth adjustment +3/−2mm
Height adjustment Via the selected mounting plate
Material Steel
Finish Onyx Black
Quantity One hinge
Mounting plate Not included

Designed for thick and profiled doors

Thicker cabinet doors and doors with deep edge mouldings need additional clearance as they open. The 71B9590 combines specialist profile-door geometry with a reduced 95° opening angle to help prevent the door edge from colliding with the cabinet side.

This hinge is not restricted to aluminium profile frames. It can be suitable for timber, MDF and composite doors with increased thickness or pronounced edge profiles, provided the complete installation is checked against Blum planning information.

How INSERTA fixing works

INSERTA refers to the method used to secure the hinge cup to the cabinet door. The hinge is inserted into a 35mm cup hole with two additional 8mm fixing holes. Closing the INSERTA lever expands the integrated fixing elements and locks the hinge securely into the door.

No conventional hinge-cup screws are required. Accurate machine drilling is essential, and INSERTA should not be confused with the separately purchased cabinet mounting plate.

Recommended matching components

Frequently asked questions

What is a thick or profile-door hinge?

It is a hinge with specialist opening geometry for thicker cabinet doors, deep edge profiles, raised mouldings and other door constructions that require additional clearance during opening.

Is this hinge only for aluminium-framed doors?

No. It can also be suitable for thick or profiled timber, MDF and composite cabinet doors when the application is correctly planned.

What does INSERTA mean?

INSERTA is Blum’s tool-free hinge-cup fixing system. It secures the hinge to a correctly drilled door without conventional hinge-cup screws.

Does INSERTA refer to the mounting plate?

No. INSERTA secures the hinge cup to the door. A compatible Blum CLIP mounting plate is still required on the cabinet and must be ordered separately.

What is the difference between 71B9590 and 71B9550?

Both are 95° BLUMOTION overlay hinges for thick or profiled doors. The 71B9590 has a tool-free INSERTA cup fixing, while the 71B9550 has a conventional screw-on cup fixing.

Is the mounting plate included?

No. This product contains one hinge only. Select the mounting-plate height according to the required overlay and cabinet construction.

Can BLUMOTION be switched off?

Yes. The integrated soft-close mechanism can be deactivated when reduced damping is required.

What drilling pattern is required?

Installation requires a 35mm cup hole approximately 13mm deep, together with two 8mm INSERTA fixing holes positioned on 45mm centres. Confirm the cup-boring distance and complete application before machining the door.

TECHNICAL DETAILS

  • Application: Inset
  • Colour: Onyx Black
