Name: Blum 71T950A CLIP top 95° Aluminium-Frame Overlay Hinge | Screw-On | Onyx Black
Brand: JULIUS BLUM UK LTD
SKU: HIO71T950A
Price: 2.73 GBP
Availability: InStock

PRODUCT DESCRIPTION

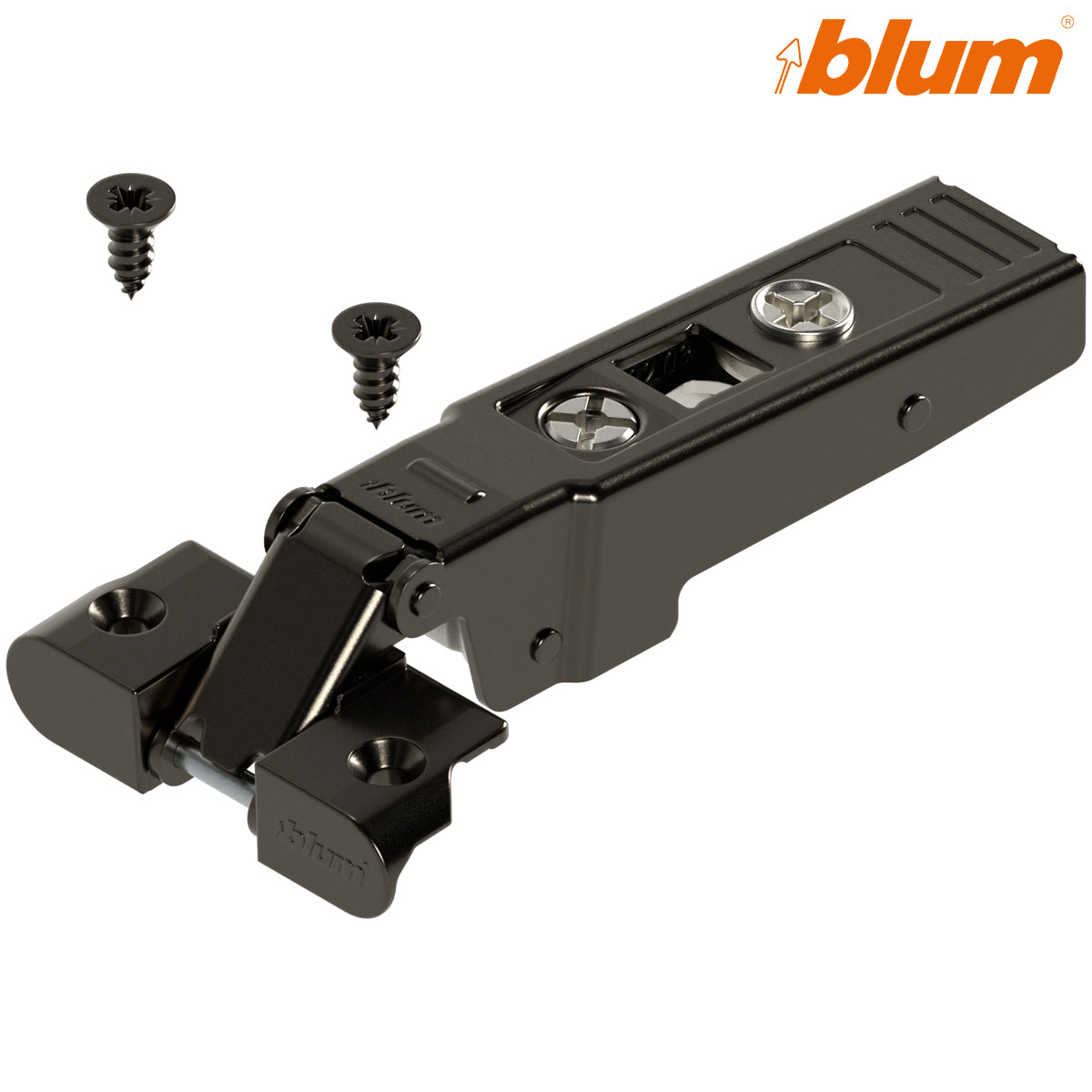

Blum 71T950A CLIP top 95° aluminium-frame overlay hinge – Onyx Black

The Blum 71T950A CLIP top hinge is designed specifically for full-overlay cabinet doors made with compatible narrow aluminium-frame profiles. Its specialist geometry and screw-on boss fixing are intended for aluminium door systems where a conventional 35 mm furniture hinge is not suitable.

The controlled 95° opening angle provides practical cabinet access while the sprung mechanism pulls the door towards the closed position. This hinge does not contain integrated BLUMOTION soft close.

Designed for narrow aluminium-frame doors

Suitability depends on the frame width, profile thickness, machining details and fixing-hole positions. Check the applicable aluminium-profile fabrication information before drilling or ordering production quantities.

Once installed on the door, the hinge arm connects to a compatible Blum CLIP mounting plate without tools, allowing straightforward door installation and removal.

Key features

Blum CLIP top aluminium-frame hinge
Blum part number: 71T950A
Hart Wholesale SKU: HIO71T950A
Full-overlay application
95° opening angle
Sprung, self-closing mechanism
Screw-on boss fixing
Onyx Black finish
Tool-free CLIP connection to the mounting plate
Three-dimensional front adjustment
Spiral depth adjustment
Supplied as one hinge

Adjustment

Height: up to ±3 mm, depending on the mounting plate
Side: up to ±2 mm
Depth: +3 mm to −2 mm using the spiral adjustment screw

Important ordering information

This listing is for one hinge only. A compatible Blum CLIP mounting plate is required and must be ordered separately. The mounting plate height should be selected according to the required overlay and cabinet construction.

This is a specialist aluminium-frame hinge, not a universal replacement for every aluminium door profile. Check the profile dimensions, material strength and machining positions before installation.

Matching components

Browse the Blum CLIP top Onyx Black mounting plate range for compatible cabinet-side fixing options.

The verified nickel counterpart is Blum HI71T950AB 95° aluminium-frame overlay hinge. For a free-moving push-to-open application, check the compatible unsprung 70T950A.TL version before ordering.

Browse the Blum CLIP top hinge range for related cabinet hardware.

Frequently Asked Questions

What type of door is the Blum 71T950A designed for?

It is designed for full-overlay cabinet doors made from compatible narrow aluminium-frame profiles.

Is the Blum 71T950A sprung or unsprung?

The 71T950A is sprung and self-closing. The corresponding unsprung 70T950A.TL version is intended for free hinge movement.

Does this hinge include BLUMOTION soft close?

No. It has a self-closing spring but no integrated BLUMOTION mechanism.

Is it suitable for TIP-ON push-to-open doors?

Not normally. Its sprung closing action works against the free movement required for TIP-ON. Check the unsprung aluminium-frame version for that application.

Will it fit every aluminium door profile?

No. The profile must have suitable dimensions, material strength and machining positions. Check the profile fabrication information before installation.

Does it use a conventional 35 mm wooden-door cup?

No. This is a specialist aluminium-frame hinge and requires the correct machining and fixing arrangement for the chosen profile.

What does full overlay mean?

In a full-overlay application, the closed door covers most of the front edge of the cabinet side panel.

Is the mounting plate included?

No. This product is supplied as one hinge only. A compatible Blum CLIP mounting plate must be ordered separately.

TECHNICAL DETAILS

Application: Overlay
Finish: Onyx Black
Colour: Onyx Black
Material: Steel
