PRODUCT DESCRIPTION

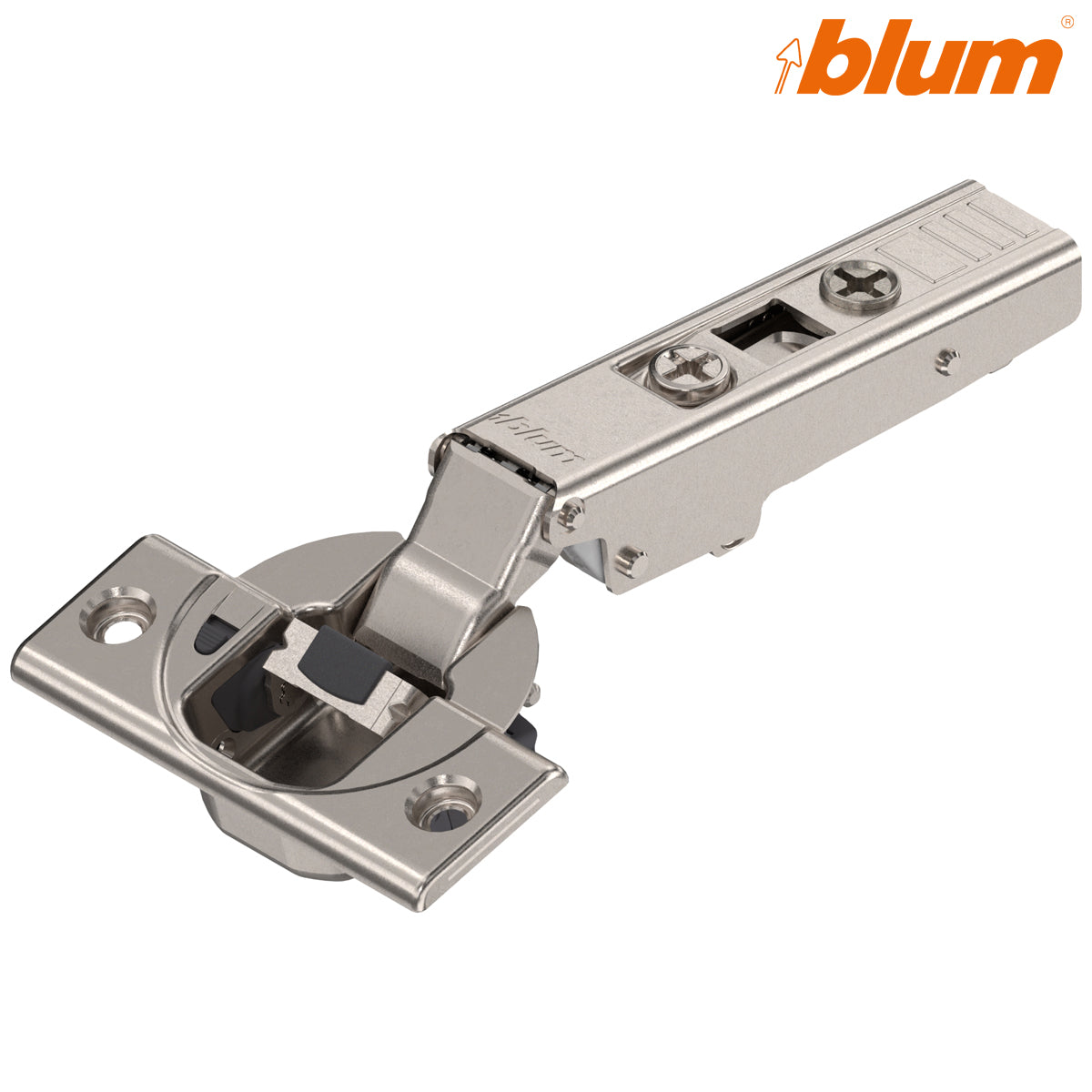

Blum CLIP top BLUMOTION 110° Overlay Screw-On Hinge

The Blum 71B3550 CLIP top BLUMOTION hinge is a premium concealed cabinet hinge designed for standard overlay doors. It combines a versatile 110° opening angle with integrated BLUMOTION soft closing for smooth, quiet and controlled door movement.

The 35mm steel hinge cup is secured to the cabinet door using conventional screw fixing, making this version particularly suitable for replacement work, one-off furniture production and installations where a standard 45mm screw-hole pattern is already present.

Once connected to a compatible Blum CLIP mounting plate, the door can be attached or removed from the cabinet without tools. Side, depth and height adjustment allow accurate door alignment after fitting.

Key features

  • Blum CLIP top BLUMOTION concealed hinge
  • Blum part number 71B3550
  • Designed for overlay cabinet doors
  • 110° opening angle
  • Integrated BLUMOTION soft-close mechanism
  • BLUMOTION can be deactivated when required
  • 35mm screw-on steel hinge cup
  • 45mm fixing-hole centres
  • Tool-free CLIP door attachment and removal
  • Three-dimensional adjustment with a suitable mounting plate
  • Convenient spiral screw depth adjustment
  • All-metal construction
  • Nickel-plated finish
  • Supplied as one hinge

Technical specifications

Manufacturer Blum
Blum part number 71B3550
Hart Wholesale stock code HI71B3550
Hinge system CLIP top BLUMOTION
Door application Overlay
Opening angle 110°
Closing mechanism Spring with integrated BLUMOTION
Cup fixing Screw-on
Hinge-cup diameter 35mm
Fixing-hole centres 45mm
Fixing-hole offset 9.5mm from the hinge-cup centreline
Cup drilling depth 13mm
Drilling distance 3–7mm
Side adjustment ±2mm
Depth adjustment +3mm / −2mm
Height adjustment Via the selected mounting plate
Material Steel
Finish Nickel plated
Pack quantity 1 hinge

Integrated BLUMOTION soft closing

BLUMOTION is built directly into the hinge cup and provides smooth, controlled closing regardless of how firmly the cabinet door is pushed. No separate soft-close adapter is required.

The BLUMOTION mechanism can be deactivated on an individual hinge. This can be useful on small or lightweight doors where fewer damped hinges may provide the best closing action.

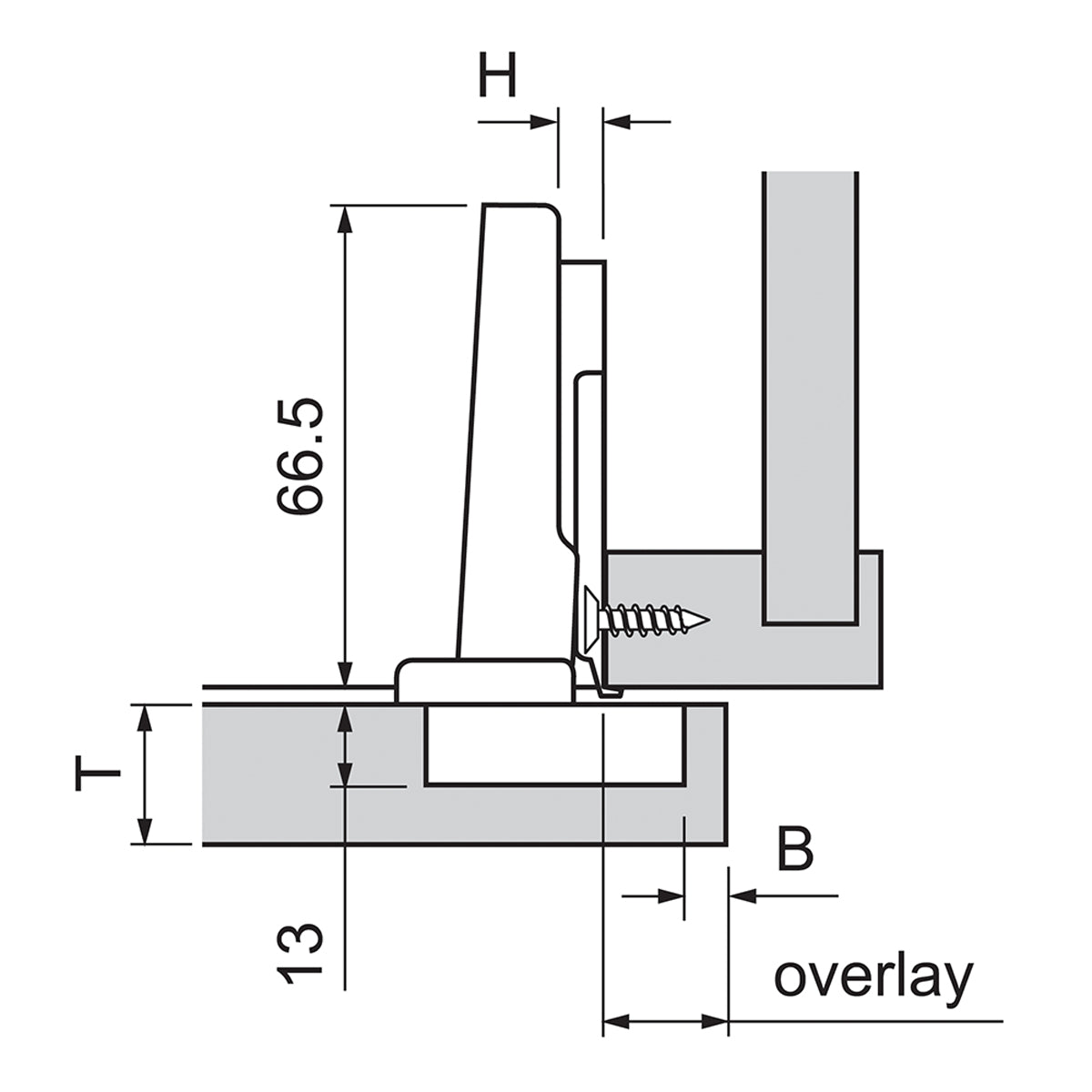

Screw-on cup installation

The hinge requires a 35mm cup drilling approximately 13mm deep. The two screw-fixing positions are arranged on 45mm centres, with the fixing-hole line offset 9.5mm from the centre of the hinge-cup drilling.

The screw-on system is a practical choice for replacement hinges and workshop installation because it does not require the 8mm dowel holes used by knock-in and INSERTA versions.

Mounting plate required

This product is supplied as one hinge. A compatible Blum CLIP cabinet-side mounting plate is required and must be purchased separately.

A commonly used option is the Blum HI173710 0mm cruciform cam mounting plate. The correct mounting-plate height depends on the required door overlay and cabinet construction.

Related hinges and accessories

Frequently asked questions

Does the Blum 71B3550 have integrated soft close?

Yes. BLUMOTION is integrated into the hinge, so no separate soft-close adapter is required.

Can the BLUMOTION mechanism be switched off?

Yes. The soft-close function can be deactivated on individual hinges when less damping is needed.

What does overlay application mean?

Overlay means the closed cabinet door sits in front of and covers the cabinet side panel. The final overlay depends on the drilling distance and mounting-plate height.

What size hinge-cup hole is required?

The hinge requires a 35mm cup hole with a drilling depth of approximately 13mm.

Are hinge-cup fixing screws included?

The product is supplied as one hinge. Check the supplied components before installation and select appropriate fixing screws for the door material where required.

Is the cabinet mounting plate included?

No. A compatible Blum CLIP mounting plate must be ordered separately.

Can the opening angle be restricted?

Yes. The Blum 70T3553 opening-angle stop reduces the opening angle from 110° to approximately 86°.

TECHNICAL DETAILS

  • Application: Overlay
  • Size: 110° opening, 35mm cup, 45mm centres
  • Height: Standardmm
  • Diameter: 35mm
  • Finish: Nickel Plated
  • Colour: Nickel
  • Code: HI71B3550
  • Material: Steel
