PRODUCT DESCRIPTION

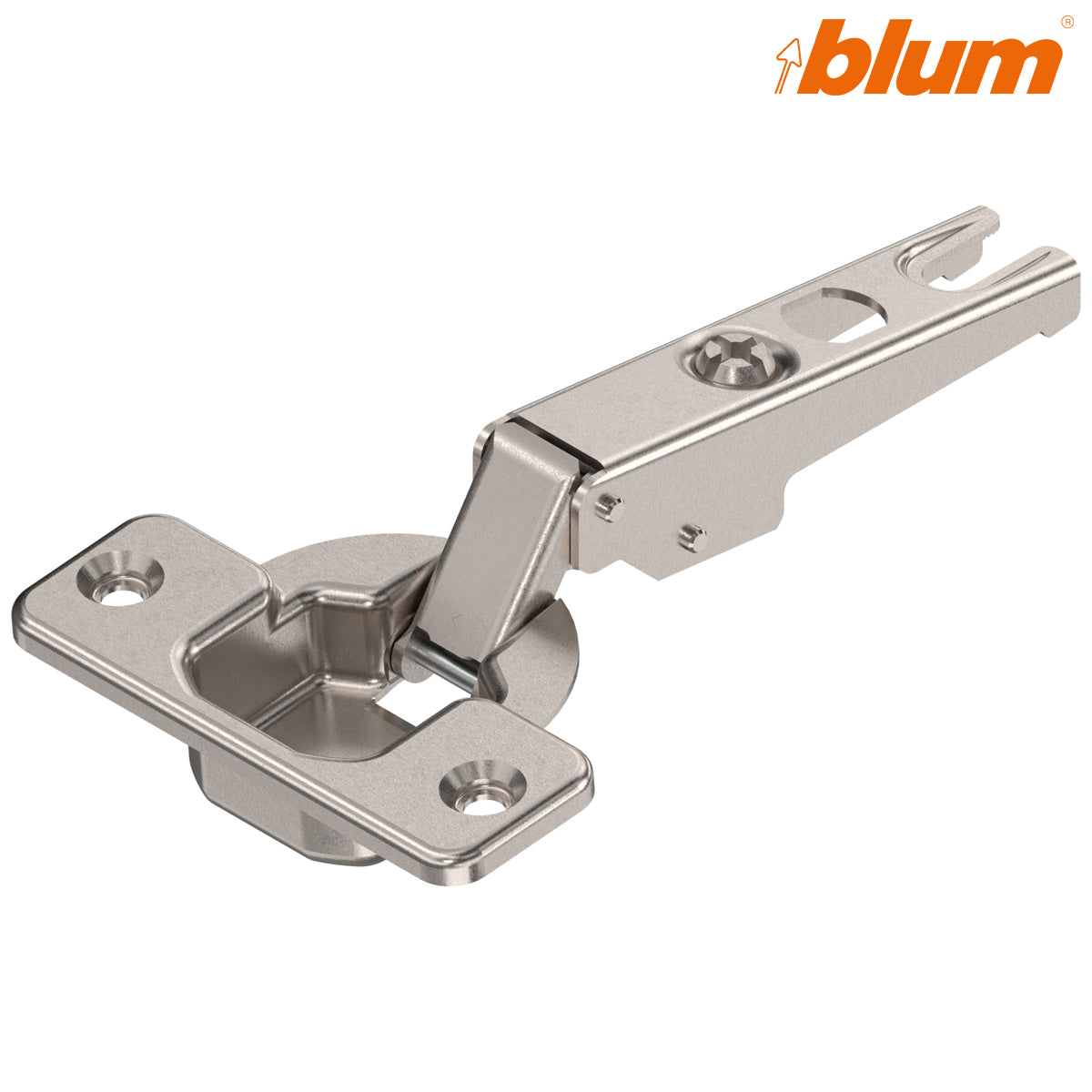

Blum 91M2550 MODUL 100° Overlay Screw-On Hinge – Nickel

The Blum 91M2550 is a MODUL 100° hinge for full-overlay cabinet doors, where the closed door covers most of the cabinet side panel. It combines a screw-on cup fixing with Blum’s MODUL slide-on arm-to-plate connection, making it a dependable option for new cabinetry, replacements and repeat workshop assembly.

Select this hinge for a standard overlay layout and a controlled 100° opening. It is sprung to hold the door closed and is supplied in a nickel-plated finish. A compatible MODUL mounting plate is required and is not included; plate height and cabinet drilling determine the finished overlay, so match the plate to the carcass and door specification before installation.

Key features

  • Application: Full-overlay cabinet doors
  • Opening: 100°
  • Door position: Overlay
  • Cup fixing: Screw-on
  • Closing action: Sprung
  • Mounting plate: Mounting plate sold separately
  • Finish: Nickel-plated

Compatibility and fitting

Use the manufacturer part number and application details to select the fitting. Do not assume that every hinge with the same opening angle uses the same plate or door geometry. For a new installation, make a test assembly and check clearances before drilling the full job. For a replacement, retain the existing plate only when its range, height, fixing pattern and condition are confirmed as compatible.

Brand Blum
Manufacturer part number 91M2550
Hart SKU HI9125
Range MODUL
Opening angle 100°
Application Full-overlay cabinet doors
Door position Overlay
Cup fixing Screw-on
Closing action Sprung
Mounting plate Mounting plate sold separately
Finish Nickel-plated
Pack quantity 1 hinge

Questions and answers

Is a mounting plate included with HI9125?

No. The mounting plate is sold separately. Select the plate height and fixing pattern to suit the cabinet geometry.

What door layout is this hinge for?

It is intended for full-overlay cabinet doors. Confirm the required overlay before drilling.

Is HI9125 a soft-close hinge?

No. It is a sprung MODUL hinge and does not contain integrated BLUMOTION soft close. Add-on damping should only be used where Blum specifies compatibility.

How do I confirm it will replace my existing hinge?

Match the Blum part number, opening angle, arm shape, door position, cup fixing and mounting plate. Compare the complete fitting rather than the opening angle alone.

Need help choosing? Compare the Blum MODUL hinge range or contact Hart Wholesale with the number stamped on the existing hinge and mounting plate.

TECHNICAL DETAILS

  • Application: Overlay
  • Finish: Nickel
  • Colour: Nickel
  • Material: Steel
