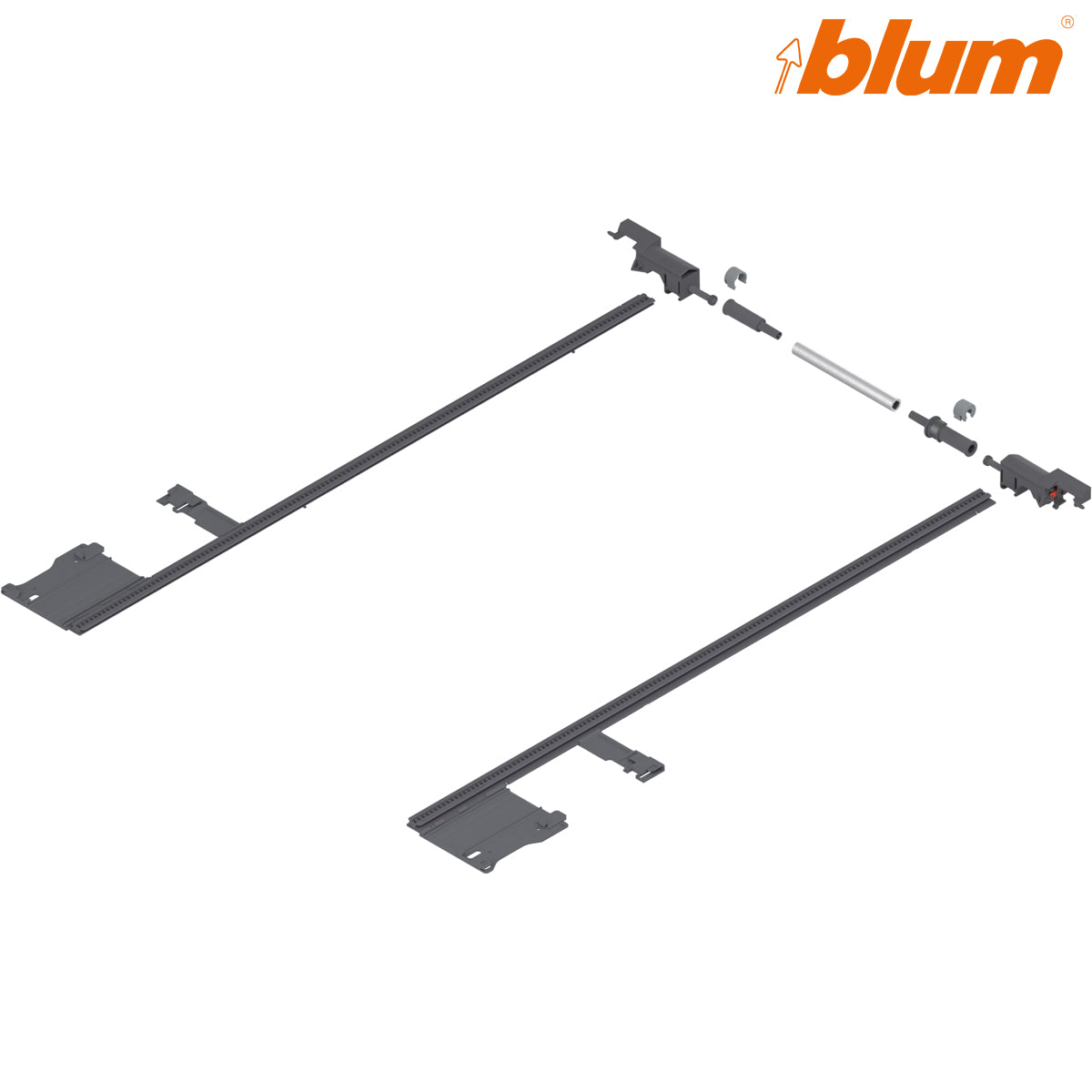

Blum MOVENTO Side Stabilisation Set – Runner Lengths up to 600mm

Help wider drawers run smoothly and reduce racking, the unwanted side-to-side movement that can occur as a drawer opens and closes. The Blum MOVENTO ZS7M600MU side stabilisation set, Hart Wholesale SKU ZS7600MU, works alongside compatible MOVENTO drawer runners to add lateral stability. Blum particularly recommends side stabilisation for wide pull-outs with short nominal runner lengths.

The components are easy to cut down to the required installation length. This version suits nominal runner lengths up to 600mm and cabinet widths up to 1400mm. The 600mm designation is the nominal runner-length limit, not the transverse shaft length.

Key features and specifications

• Blum part number: ZS7M600MU
• Hart Wholesale SKU: ZS7600MU
• Range: MOVENTO side stabilisation
• Nominal runner length: up to and including 600mm
• Maximum cabinet width: 1400mm
• Colour: RAL 7037 dust grey
• Blum lists the set material as nylon
• Helps reduce lateral movement and racking on wider drawers
• Compatible with all MOVENTO motion technologies, subject to correct installation
• Suitable for MOVENTO BLUMOTION, TIP-ON and TIP-ON BLUMOTION applications
• Cut-to-size components
• MOVENTO runners sold separately
• Blum lifetime guarantee

Cutting and installation

For this MOVENTO stabilisation system, Blum specifies the shaft cutting length as internal cabinet width minus 315mm and gear rack cutting as nominal runner length plus 10mm. These are MOVENTO-specific dimensions; do not use the cutting formulas for TANDEM TT/TV or TANDEMBOX BA sets.

Measure before cutting and check the current assembly instructions for the exact runner and drawer construction. Side stabilisation affects the required cabinet installation space, so check the system planning dimensions before manufacture or retrofitting rather than assuming the standard runner clearance is sufficient.

Choosing the right version

For runners no longer than 400mm, compare the ZS7400MU MOVENTO stabilisation set for nominal lengths up to 400mm. For runners above 600mm and up to 750mm, choose the ZS7750MU MOVENTO stabilisation set for nominal lengths up to 750mm. Select the correct version using the nominal runner length, not just the cabinet width.

Browse Blum MOVENTO drawer runners and the MOVENTO accessories collection. This stabiliser complements the runners rather than replacing them.

Frequently Asked Questions

What does this stabilisation set do?

It adds lateral stability to compatible MOVENTO runners, helping wider drawers run more evenly and reducing racking or side-to-side movement.

Is it only for exactly 600mm runners?

No. It is specified for compatible MOVENTO runner nominal lengths up to and including 600mm.

Can I cut the components to length easily?

Yes. They are designed for cutting to suit the installation. Use the MOVENTO-specific cutting dimensions and measure before cutting.

Which MOVENTO motion technologies are compatible?

Blum specifies compatibility with all MOVENTO motion technologies, subject to correct planning and installation.

What cabinet width can it accommodate?

The system is suitable for cabinet widths up to 1400mm, with the components cut to fit.

Are the MOVENTO runners included?

No. Order compatible runners and any other required accessories separately.

Does it have a lifetime guarantee?

Yes. All Blum products supplied by Hart Wholesale have a lifetime guarantee.
