Name: BLUM CLIP BLUMOTION HINGE 110deg OVERLAY INSERTA
Brand: JULIUS BLUM UK LTD
SKU: HI71B3590
Price: 3.45 GBP
Availability: InStock

PRODUCT DESCRIPTION

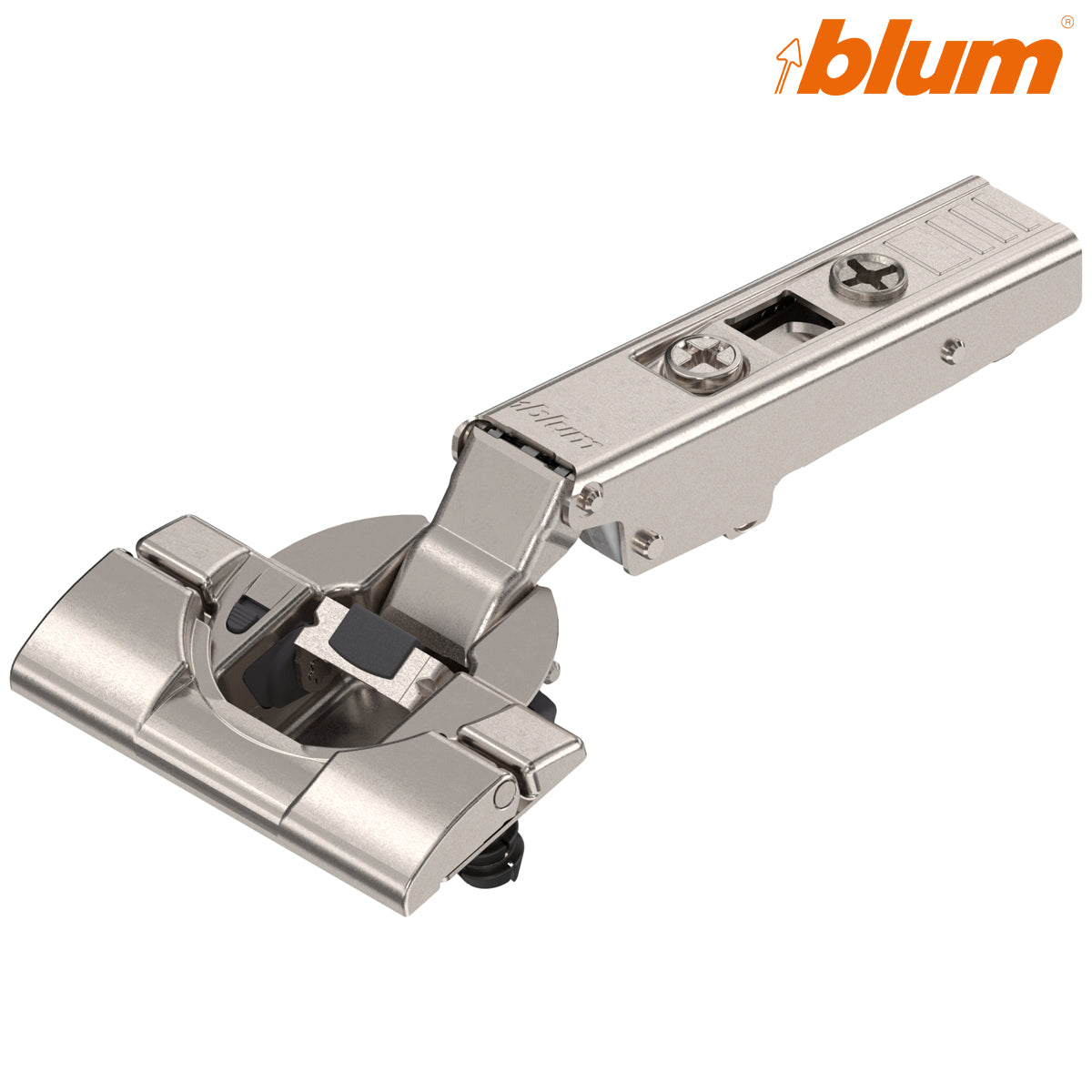

Blum CLIP top BLUMOTION 110° Overlay INSERTA Hinge

The Blum 71B3590 CLIP top BLUMOTION hinge combines an integrated soft-close mechanism with Blum's fast, tool-free INSERTA fixing system. Designed for standard overlay cabinet doors, it provides a 110° opening angle and controlled, quiet closing without requiring a separate damper.

The INSERTA steel hinge cup locks securely into the correctly prepared door drilling pattern without fixing screws. This makes the hinge particularly suitable for kitchen, bedroom and furniture manufacturing where fast, accurate and repeatable installation is required.

Once fitted to a compatible Blum CLIP mounting plate, the door can be attached to or removed from the cabinet without tools. Side, depth and height adjustment provide accurate door alignment after installation.

Key features

Blum CLIP top BLUMOTION concealed cabinet hinge
Blum part number 71B3590
Designed for overlay cabinet doors
110° opening angle
Integrated BLUMOTION soft-close mechanism
BLUMOTION can be deactivated when required
INSERTA tool-free hinge-cup installation
Tool-free CLIP door attachment and removal
Three-dimensional door adjustment with a suitable mounting plate
Convenient spiral screw depth adjustment
All-metal construction
Nickel-plated finish
Supplied as one hinge

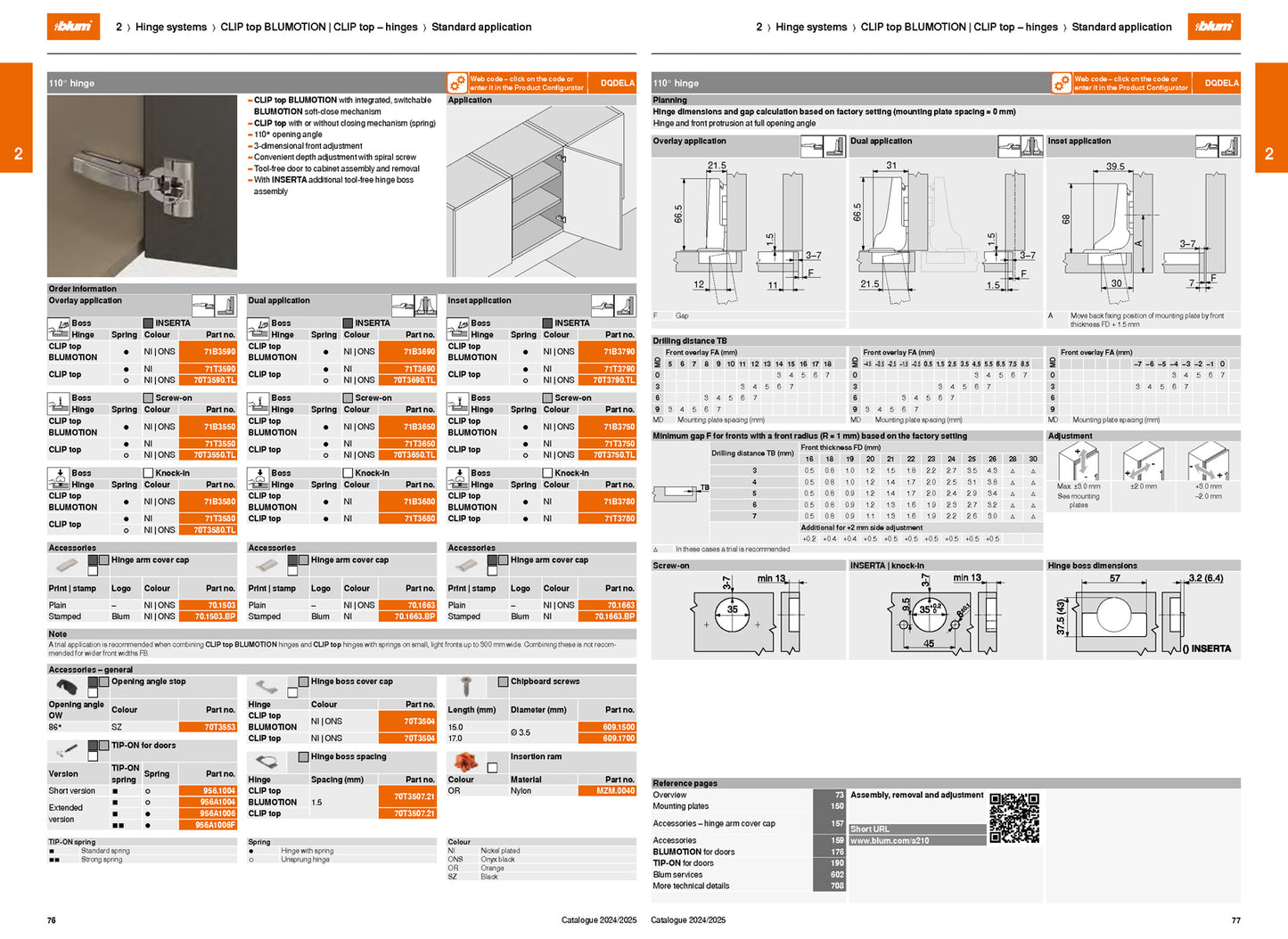

Technical specifications

application	standard hinge
Cranking	Overlay application
Opening angle	110
Closing mechanism	with spring
hinge variant	With integrated BLUMOTION
Cover cap type	90M2503
Cover cap type	70.1503
Boss material	Steel boss
boss finish	Nickel plated
Boss assembly	tool-free with INSERTA
Flange width	57 mm
Flange length	27.5 mm
Flange height	6.4 mm
diameter hinge boss drilling	35 mm
diameter of fixing holes	8 mm
distance between drillings	45 mm
eccentric position of fixing holes to hinge boss hole	9.5 mm
boss drilling depth	13 mm
Minimum drilling distance	3 mm
Maximum drilling distance	7 mm
arm material	Steel
arm finish	Nickel plated
collision measurement (hinge arm height)	21.5 mm
Fixed dimension / factory setting	11 mm
Type of side adjustment	With screw
Side adjustment	+/-2 mm
Type of depth adjustment	convenient with spiral screw
Depth adjustment	+3/-2 mm
Gap	1.5 mm
Item package	1 piece
packaging	industrial packing
product combination	No

Integrated BLUMOTION soft closing

BLUMOTION is incorporated directly into the hinge boss and closes the cabinet door smoothly and quietly. The mechanism adapts to different closing speeds and can be deactivated on individual hinges when a small or lightweight door requires less damping.

What is Blum INSERTA?

INSERTA is Blum's tool-free method of securing the hinge cup to the cabinet door. The hinge is inserted into a correctly prepared 35mm cup drilling with two 8mm fixing holes on 45mm centres. Closing the INSERTA locking flap expands the fixings and secures the hinge without screws.

This product therefore requires the complete INSERTA drilling pattern and not just a single 35mm cup hole.

Mounting plate required

This product is supplied as one hinge. A cabinet-side mounting plate is required and is sold separately. A commonly used option is the Blum 0mm cruciform cam mounting plate – HI173710. Select the mounting-plate height and fixing method required for your cabinet construction and desired door overlay.

Frequently asked questions

Does the Blum 71B3590 have integrated soft close?

Yes. BLUMOTION is integrated directly into the hinge and does not require a separate soft-close adapter.

Can the BLUMOTION mechanism be switched off?

Yes. The soft-close mechanism can be deactivated on an individual hinge, which can be useful on smaller or lighter cabinet doors.

What does overlay mean?

Overlay means that the closed cabinet door sits in front of and covers the cabinet side panel. The final overlay is determined by the drilling distance, mounting-plate height and hinge adjustment.

Does INSERTA require fixing screws?

No. The INSERTA cup fixing locks into a correctly prepared 35mm and 8mm drilling pattern without screws.

Is a mounting plate included?

No. The hinge is supplied individually and requires a compatible Blum CLIP mounting plate, which must be ordered separately.

Can the opening angle be reduced?

Yes. The compatible Blum 70T3553 opening-angle stop reduces the opening angle from 110° to approximately 86°.

TECHNICAL DETAILS

Application: Overlay
Finish: Nickel Plated
Colour: Nickel
Material: Steel
