PRODUCT DESCRIPTION

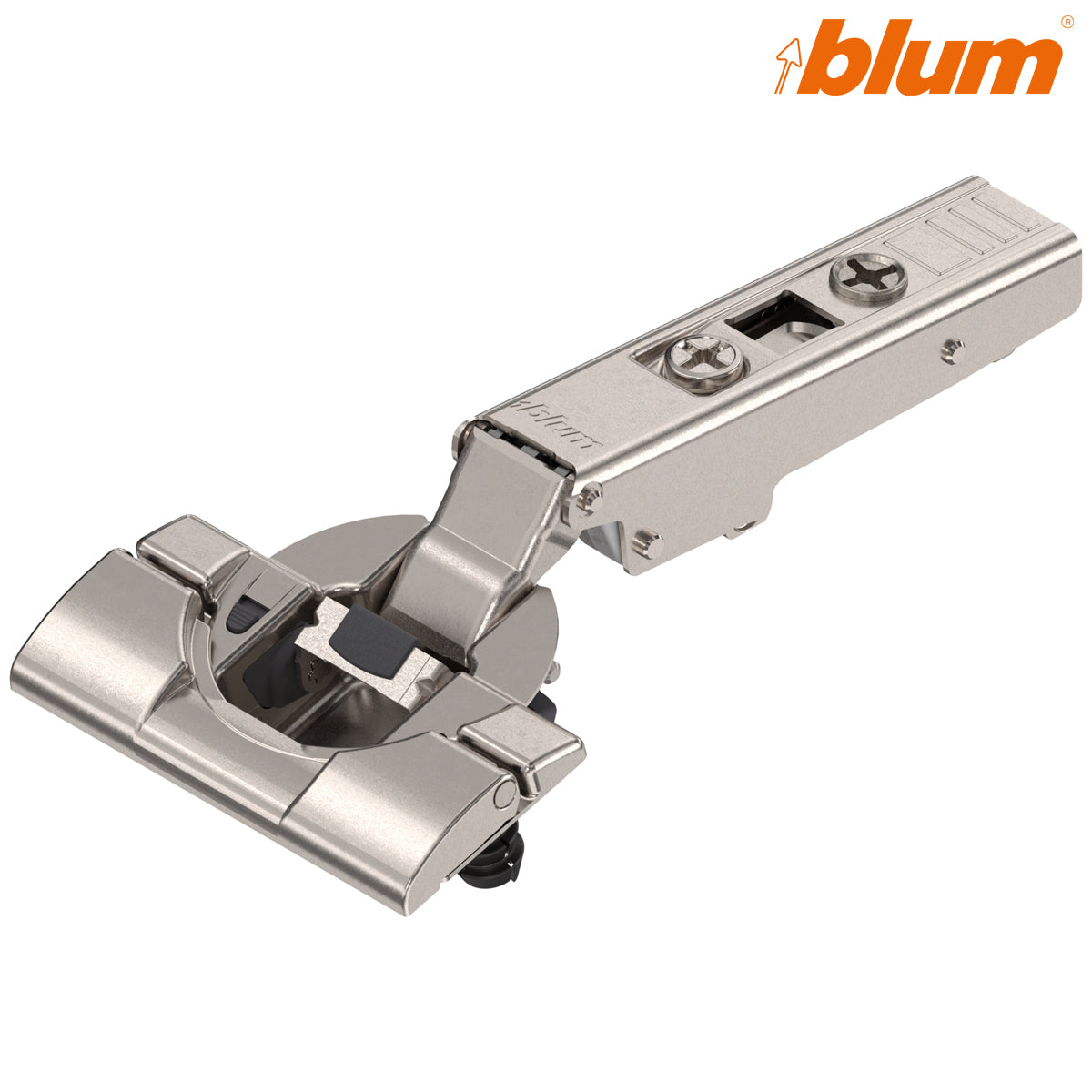

Blum CLIP top BLUMOTION 110° Overlay INSERTA Hinge
The Blum 71B3590 CLIP top BLUMOTION hinge combines an integrated soft-close mechanism with Blum's fast, tool-free INSERTA fixing system. Designed for standard overlay cabinet doors, it provides a 110° opening angle and controlled, quiet closing without requiring a separate damper.
The INSERTA steel hinge cup locks securely into the correctly prepared door drilling pattern without fixing screws. This makes the hinge particularly suitable for kitchen, bedroom and furniture manufacturing where fast, accurate and repeatable installation is required.
Once fitted to a compatible Blum CLIP mounting plate, the door can be attached to or removed from the cabinet without tools. Side, depth and height adjustment provide accurate door alignment after installation.
Key features
- Blum CLIP top BLUMOTION concealed cabinet hinge
- Blum part number 71B3590
- Designed for overlay cabinet doors
- 110° opening angle
- Integrated BLUMOTION soft-close mechanism
- BLUMOTION can be deactivated when required
- INSERTA tool-free hinge-cup installation
- Tool-free CLIP door attachment and removal
- Three-dimensional door adjustment with a suitable mounting plate
- Convenient spiral screw depth adjustment
- All-metal construction
- Nickel-plated finish
- Supplied as one hinge
Technical specifications
| Manufacturer | Blum |
|---|---|
| Blum part number | 71B3590 |
| Hart Wholesale stock code | HI71B3590 |
| Hinge system | CLIP top BLUMOTION |
| Door application | Overlay |
| Opening angle | 110° |
| Closing mechanism | Spring with integrated BLUMOTION |
| Cup fixing | INSERTA tool-free fixing |
| Hinge cup diameter | 35mm |
| Fixing-hole diameter | 8mm |
| Fixing-hole centres | 45mm |
| Cup drilling depth | 13mm |
| Drilling distance | 3–7mm |
| Side adjustment | ±2mm |
| Depth adjustment | +3mm / −2mm |
| Height adjustment | Via the selected mounting plate |
| Material | Steel |
| Finish | Nickel plated |
| Pack quantity | 1 hinge |
Integrated BLUMOTION soft closing
BLUMOTION is incorporated directly into the hinge boss and closes the cabinet door smoothly and quietly. The mechanism adapts to different closing speeds and can be deactivated on individual hinges when a small or lightweight door requires less damping.
What is Blum INSERTA?
INSERTA is Blum's tool-free method of securing the hinge cup to the cabinet door. The hinge is inserted into a correctly prepared 35mm cup drilling with two 8mm fixing holes on 45mm centres. Closing the INSERTA locking flap expands the fixings and secures the hinge without screws.
This product therefore requires the complete INSERTA drilling pattern and not just a single 35mm cup hole.
Mounting plate required
This product is supplied as one hinge. A cabinet-side mounting plate is required and is sold separately. A commonly used option is the Blum 0mm cruciform cam mounting plate – HI173710. Select the mounting-plate height and fixing method required for your cabinet construction and desired door overlay.
Related products and alternatives
- Blum 71B3550 110° overlay screw-on BLUMOTION hinge
- Blum 71T3590 110° overlay INSERTA hinge without BLUMOTION
- Blum HI173710 0mm cruciform cam mounting plate
- Blum HI173810 0mm cruciform elongated-hole mounting plate
- Blum 70T3553 opening-angle stop – reduces 110° to 86°
- View the complete Blum INSERTA hinge collection
Frequently asked questions
Does the Blum 71B3590 have integrated soft close?
Yes. BLUMOTION is integrated directly into the hinge and does not require a separate soft-close adapter.
Can the BLUMOTION mechanism be switched off?
Yes. The soft-close mechanism can be deactivated on an individual hinge, which can be useful on smaller or lighter cabinet doors.
What does overlay mean?
Overlay means that the closed cabinet door sits in front of and covers the cabinet side panel. The final overlay is determined by the drilling distance, mounting-plate height and hinge adjustment.
Does INSERTA require fixing screws?
No. The INSERTA cup fixing locks into a correctly prepared 35mm and 8mm drilling pattern without screws.
Is a mounting plate included?
No. The hinge is supplied individually and requires a compatible Blum CLIP mounting plate, which must be ordered separately.
Can the opening angle be reduced?
Yes. The compatible Blum 70T3553 opening-angle stop reduces the opening angle from 110° to approximately 86°.
TECHNICAL DETAILS
- Application: Overlay
- Finish: Nickel Plated
- Colour: Nickel
- Material: Steel
