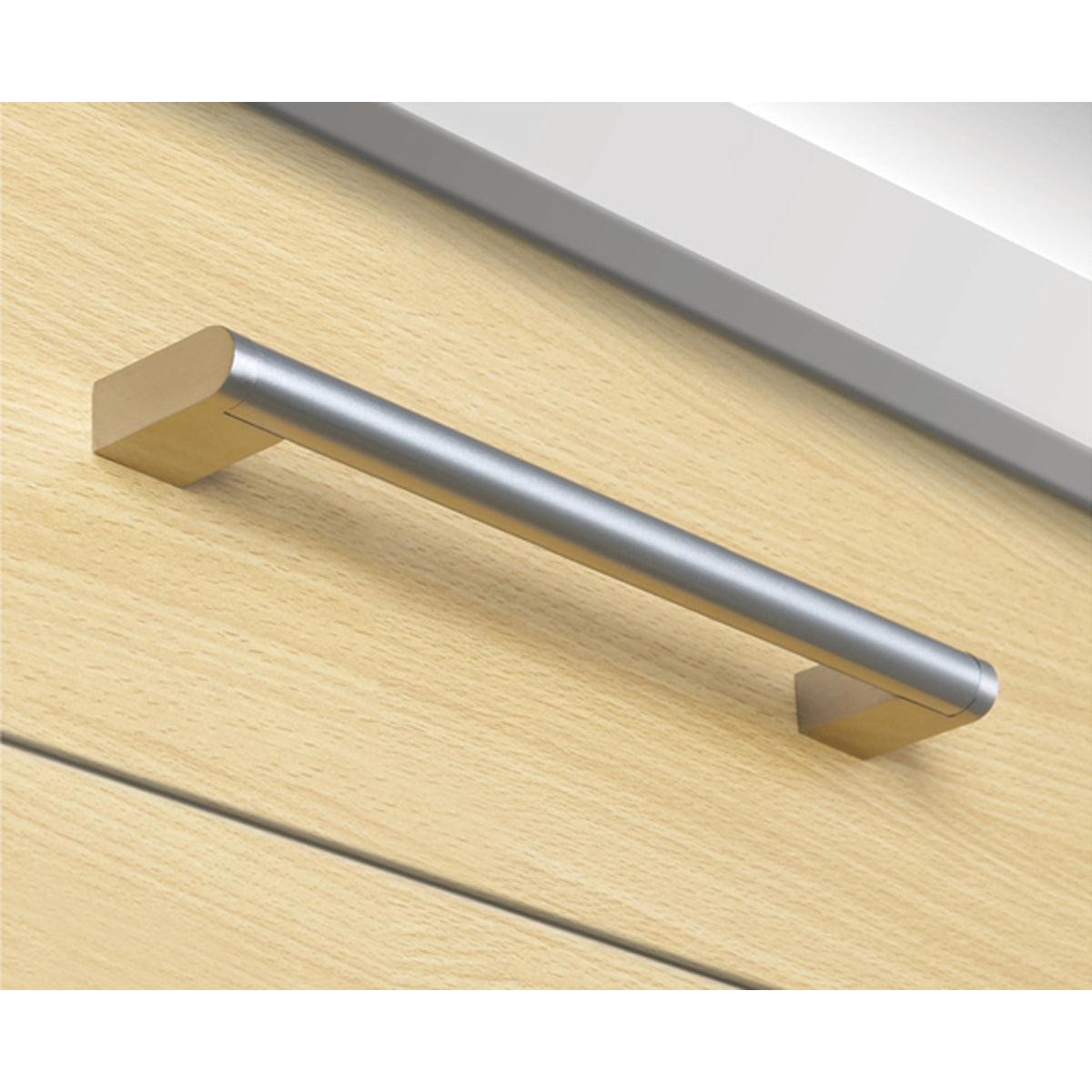

The Boston Bar Handle with 509mm hole centres is a generously sized contemporary pull handle for wide drawers, cabinet doors, wardrobes and fitted furniture. Its straight cylindrical form offers a comfortable grip and creates a clean, balanced line across larger furniture fronts.

The handle combines a hollow stainless steel tube with durable zinc alloy end supports in a coordinated stainless steel finish. This construction keeps the handle practical and easy to fit while retaining the substantial appearance needed for modern kitchens, bedrooms, offices and commercial interiors.

Key features

• Contemporary cylindrical cabinet handle
• 509mm fixing-hole centres
• 537mm overall length
• 14mm diameter stainless steel tube
• Approximately 36mm projection
• Zinc alloy end supports
• Modern stainless steel finish
• Concealed rear-fixing design
• Suitable for vertical or horizontal installation
• Supplied as one handle

Product specifications

Ideal for wider furniture fronts

The 509mm Boston handle is particularly suitable for wide pan drawers, large kitchen cupboards, wardrobe doors, bedroom furniture, office cabinets and bespoke fitted storage. Its extended length provides an easy grip while helping the handle remain visually proportionate on larger doors and drawers.

It can be mounted horizontally across a wide drawer front or installed vertically on a cupboard or wardrobe door. The understated stainless steel finish works well with contemporary cabinet colours, woodgrains and modern kitchen appliances.

Measuring before installation

The quoted 509mm measurement is the distance between the centres of the two fixing holes. The full end-to-end length is 537mm. If replacing an existing handle, measure between the fixing-hole centres to confirm that this size will fit without drilling new holes.

Fixing note: The handle uses M4 rear-fixing screws. Select the screw length required for the thickness of your cabinet door or drawer front.

Other Boston Bar Handle sizes

Coordinate different cabinet and furniture fronts with the complete range of Boston handles:

• 1157mm hole centres – 1199mm overall length
• 909mm hole centres – 951mm overall length
• 807mm hole centres – 849mm overall length
• 709mm hole centres – 751mm overall length
• 448mm hole centres – 476mm overall length
• 409mm hole centres – 437mm overall length
• 359mm hole centres – 387mm overall length
• 320mm hole centres – 348mm overall length
• 309mm hole centres – 337mm overall length
• 256mm hole centres – 284mm overall length
• 209mm hole centres – 237mm overall length
• 192mm hole centres – 220mm overall length
• 160mm hole centres – 188mm overall length
• 128mm hole centres – 156mm overall length

Frequently asked questions

What does 509mm hole centres mean?

It is the distance from the centre of one mounting hole to the centre of the other mounting hole.

What is the complete length of the handle?

The Boston handle measures 537mm from end to end.

Is this version solid or hollow?

The 509mm version uses a hollow stainless steel tube with zinc alloy end supports.

Where can this handle be used?

It is suitable for wide kitchen drawers, cabinet doors, wardrobes, office furniture and fitted storage units.

Can it be installed vertically?

Yes. The handle can be installed vertically or horizontally where the furniture front can accommodate the 509mm fixing centres.

What fixing screws are required?

The handle is rear-fixed using M4 handle screws. Choose the screw length required for the thickness of the furniture front.
