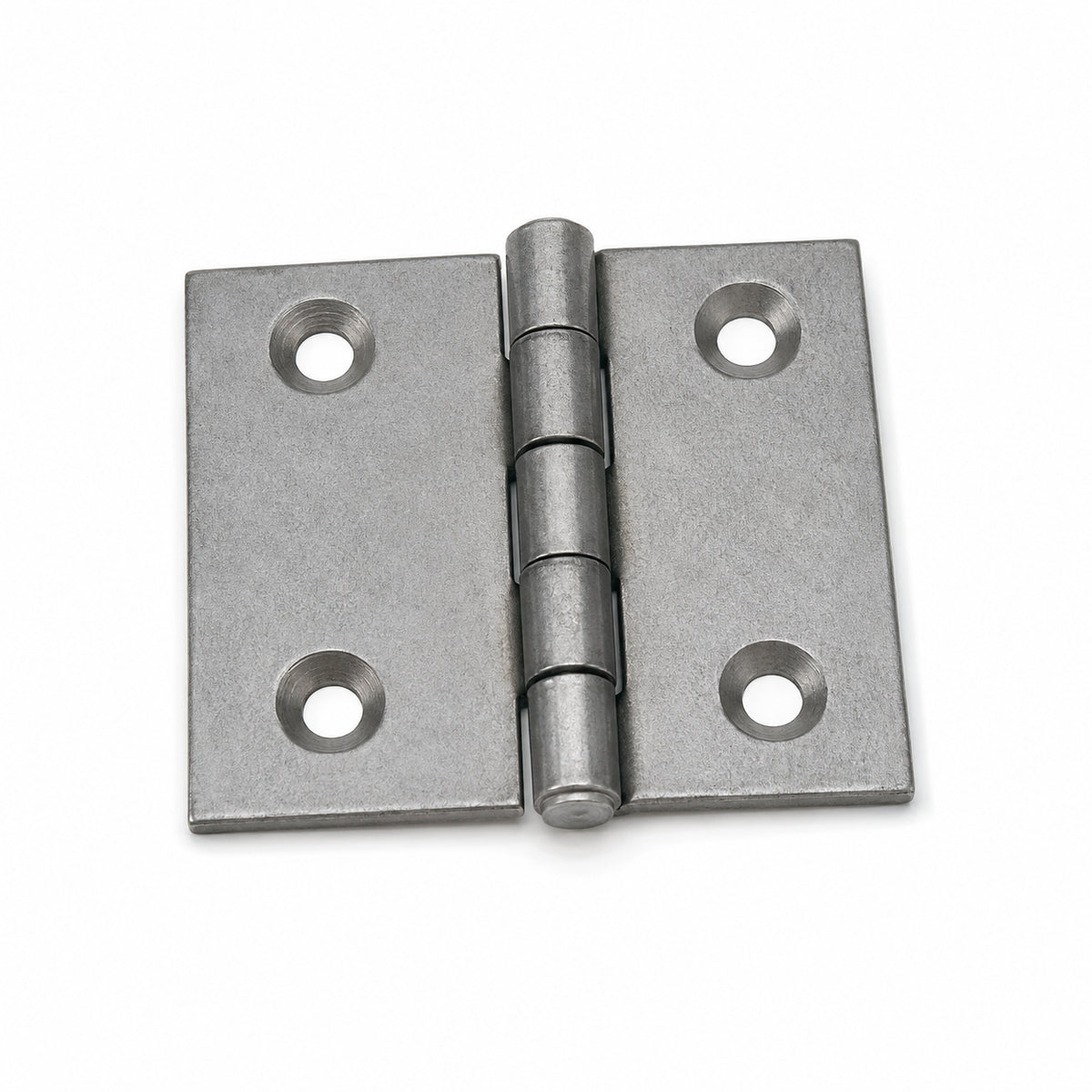

38 x 35mm Self-Colour Steel Butt Hinges

These compact 38 x 35mm light-duty steel butt hinges are suitable for small cupboards, boxes, lightweight furniture and general light internal joinery. Their traditional rigid construction incorporates a fixed pin and four countersunk fixing holes for a neat installation.

The self-colour steel finish is supplied without decorative plating. This makes the hinges suitable for projects where they will be painted or otherwise finished. Clean and prepare the steel before applying a compatible primer, paint or protective coating.

Important ordering information: this product is priced per individual hinge but is sold only in packs of 10 pairs. The minimum order is therefore 20 individual hinges, equal to 10 complete pairs. Enter quantities in multiples of 20: 20, 40, 60 and so on.

Key Features

• Compact 38 x 35mm light-duty butt hinge
• Natural self-colour steel finish
• Suitable for painting after appropriate surface preparation
• Fixed, non-removable pin
• Two countersunk fixing holes on each leaf
• Four countersunk fixing holes in total
• Suitable for small cupboards, boxes, lightweight furniture and light internal joinery
• Priced per individual hinge
• Sold only in packs of 10 pairs / 20 hinges

Product Specifications

Typical Applications

• Small cupboard doors
• Wooden boxes and cases
• Lightweight furniture components
• Craft and model-making projects
• General light internal joinery

Preparing Self-Colour Steel

Self-colour steel does not have a decorative or corrosion-resistant plated finish. Before painting, remove surface contamination, lightly prepare the metal and apply a compatible metal primer and topcoat. Untreated self-colour steel may develop surface corrosion in damp conditions.

Installation Advice

Position each hinge leaf against the timber and mark the fixing holes accurately. Select appropriately sized screws for the timber thickness and intended application. Check that the hinge knuckles are aligned before tightening the fixings.

These light-duty hinges must not be represented as suitable for heavy doors, entrance doors or certified fire doors.

Questions & Answers

How many hinges are in the minimum order?

The minimum order contains 20 individual hinges, equal to 10 complete pairs.

Is the displayed price for one hinge or one pair?

The displayed price is for one individual hinge. The hinges are sold only in packs of 20 individual hinges, equal to 10 pairs.

What does self colour mean?

Self colour means the steel has no decorative plated finish. It retains its natural steel appearance and can be painted after suitable surface preparation.

Can these hinges be painted?

Yes. Clean and prepare the steel before applying a compatible metal primer and topcoat.

How many fixing holes does each hinge have?

Each hinge has four countersunk fixing holes in total, with two holes positioned on each leaf.

Can the hinge pin be removed?

No. This is a fixed-pin hinge and the pin is not designed for removal during normal use.

Can these hinges be used outside?

Untreated self-colour steel is vulnerable to corrosion in damp or exposed locations. A suitably plated, coated or stainless steel hinge is normally preferable for exterior use.

Are fixing screws included?

Fixings are not stated as included. Select screws suitable for the timber thickness and intended application.

Are these suitable for fire doors?

No fire-door certification is declared for this product. Do not use them where certified fire-door hinges are required.

Compare the matching 38 x 35mm bright zinc plated steel butt hinges or the smaller 25mm self-colour steel butt hinges. Browse the complete butt hinge range or contact Hart Wholesale for selection advice.
