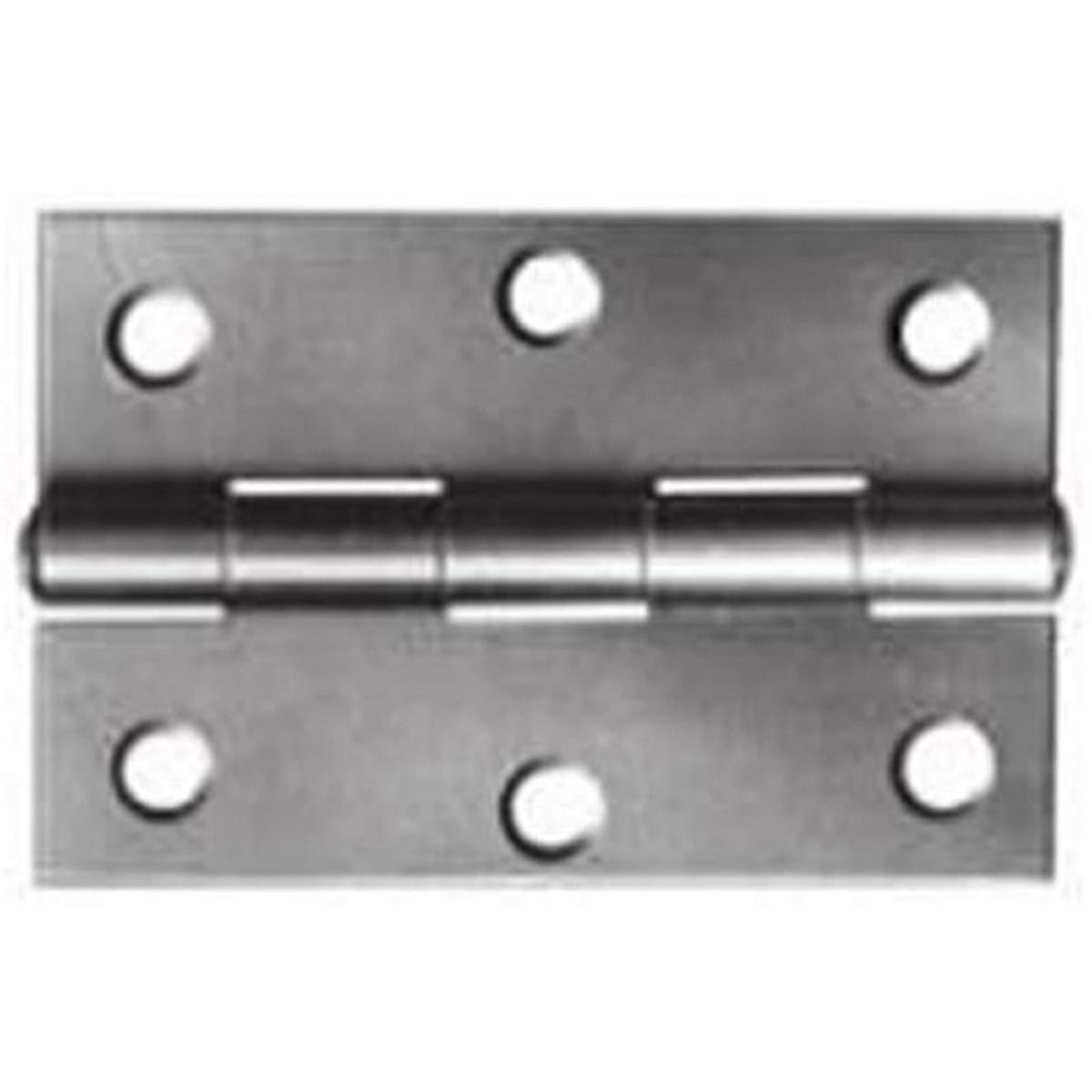

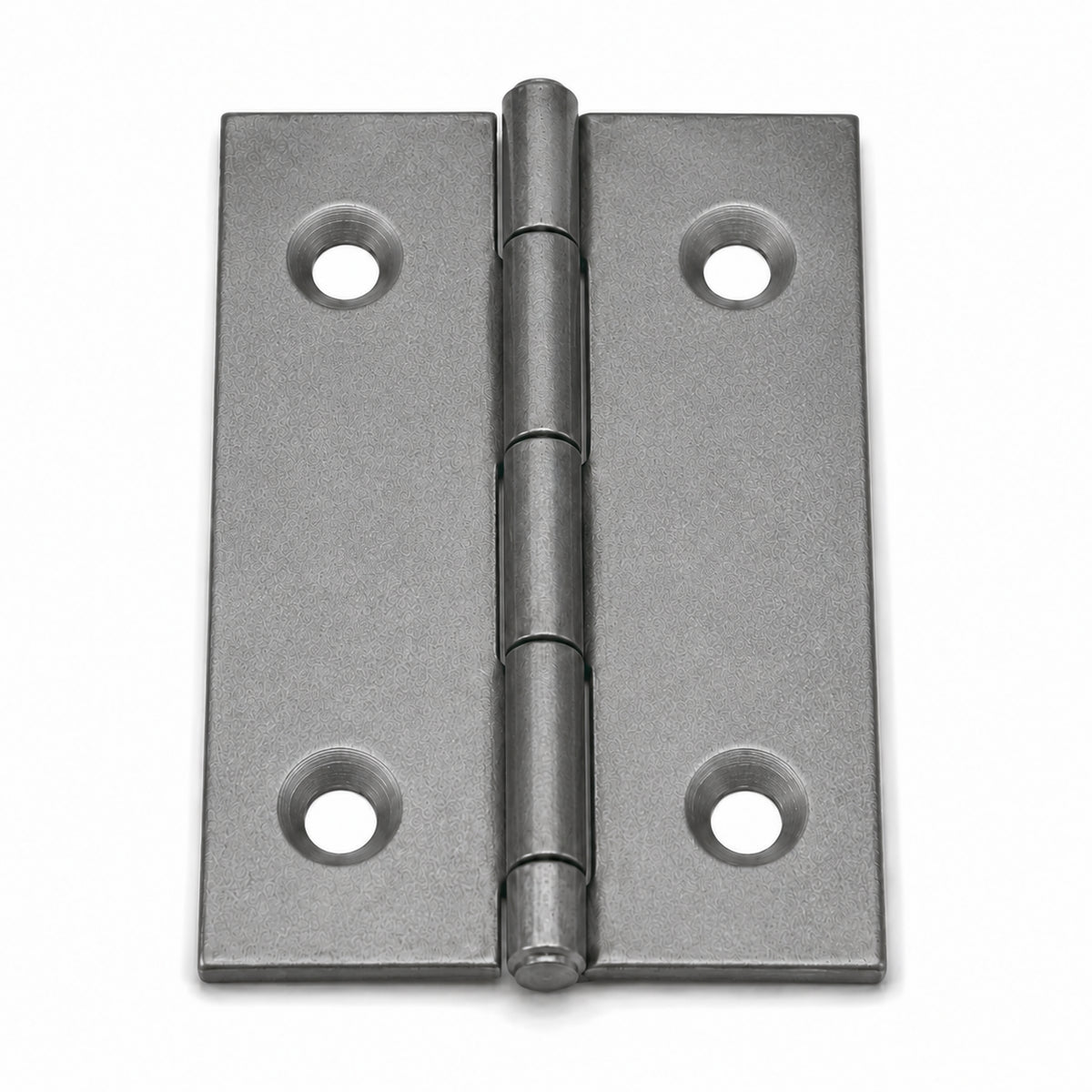

50 x 38mm Self-Colour Steel Butt Hinges

These compact 50 x 38mm light-duty steel butt hinges are suitable for cupboards, cabinets, small internal doors and other lightweight joinery applications. Their traditional rigid construction incorporates a cranked knuckle and a fixed pin that cannot be removed during normal use.

The self-colour steel finish is supplied without a decorative plating, making these hinges a practical choice where the surface will be painted or finished to match the surrounding joinery. Appropriate preparation and a suitable protective coating are recommended where corrosion resistance or a decorative appearance is required.

Important ordering information: the displayed price is for one pair. This product is supplied only in packs of 10 pairs, so order quantities must be entered in multiples of 10: 10, 20, 30 and so on.

Key Features

• Traditional light-duty butt hinge
• Rigid steel construction
• Fixed, non-removable pin
• Cranked knuckle design
• Self-colour steel finish
• Suitable for painting after appropriate surface preparation
• Compact 50 x 38mm size
• Suitable for cupboards, cabinets and lightweight internal joinery
• Priced per pair
• Sold only in multiples of 10 pairs

Product Specifications

Typical Applications

• Kitchen and utility cupboards
• Furniture and cabinet doors
• Small internal timber doors
• Storage cupboards
• General light-duty joinery

Installation Advice

Position the two leaves flush against the door and frame, mark the fixing holes carefully and use screws appropriate for the timber and application. Check that the hinge knuckle is correctly aligned before tightening. Use enough hinges to suit the dimensions, construction and weight of the door. These are light-duty hinges and should not be represented as suitable for heavy, entrance or certified fire doors.

Questions & Answers

How many hinges will I receive?

The price is shown per pair, but this product is sold only in multiples of 10 pairs. An order quantity of 10 provides 10 pairs, equal to 20 individual hinges.

Are these hinges suitable for cupboards and cabinets?

Yes. Their compact 50 x 38mm size makes them suitable for cupboards, cabinets and other lightweight internal timber doors.

What does self colour mean?

Self colour means the steel does not have a decorative plated finish. The hinges may be painted or otherwise finished after suitable cleaning and surface preparation.

Can these hinges be used outside?

Untreated self-colour steel is not recommended for exposed or damp locations without a suitable protective coating. A corrosion-resistant plated or stainless steel hinge is generally preferable for exposed applications.

Can the hinge pin be removed?

No. This is a rigid butt hinge with a fixed pin that is not designed to be removed during normal use.

Are fixing screws included?

Fixings are not stated as included. Select screws suitable for the timber, door thickness and intended application.

Are these fire-door hinges?

No fire-door certification is declared for this product. Do not use it where a certified fire-door hinge is required.

Explore our special hinges and hinge ranges. For a plated alternative, see the 50 x 38mm zinc-plated steel butt hinges. For help selecting the correct hinge, contact Hart Wholesale.
