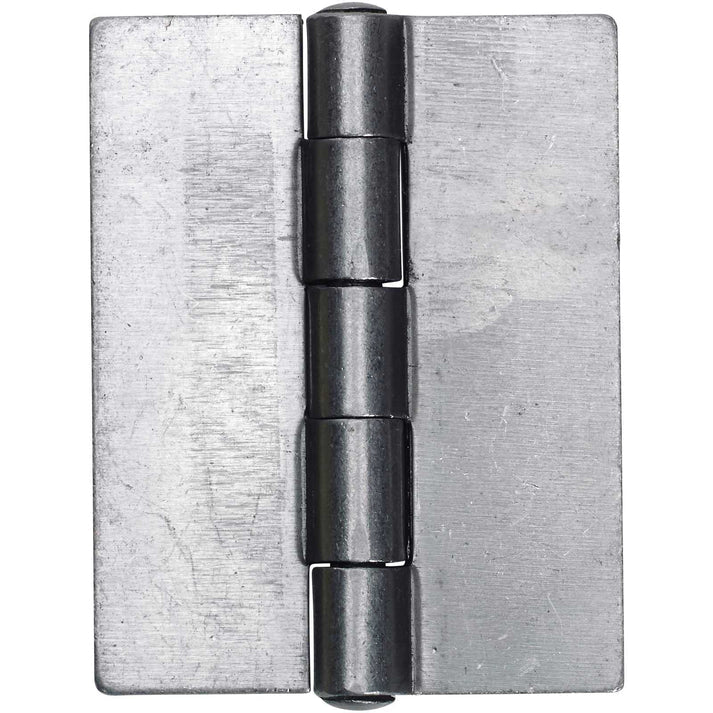

75mm Double-Pressed Weld-On Steel Butt Hinges

Sold in a complete box of 10 pairs, containing 20 individual hinges.

These extra-strong double-pressed butt hinges are designed for welding onto compatible steel doors and frames. Their robust steel construction and hole-free leaves make them particularly suitable for steel-door manufacturing and security-industry fabrication.

The hinges have no fixing holes because they are intended to be welded directly to prepared steelwork rather than attached with screws.

Key features

• Extra-strong double-pressed construction
• Designed for welding onto compatible steel doors and frames
• No fixing holes
• Self-colour mild steel
• 75mm hinge length
• 60mm overall open width
• 4mm material thickness
• Box quantity: 10 pairs
• 20 individual hinges in each complete box
• Suitable for security-industry steel fabrication

Specifications

Weld-on installation

Installation should be completed by a competent steel fabricator or welder. Prepare the steel contact surfaces correctly and use a welding process appropriate for the hinge and adjoining steelwork. Protect the pin and moving knuckle from weld spatter and excessive heat.

Self-colour steel does not have a decorative or corrosion-resistant plated finish. After welding, clean the completed assembly and apply a suitable protective coating where required, particularly for exposed, damp or exterior applications.

Browse our complete butt-hinge range or contact us for assistance selecting suitable hinges.

Questions and answers

How many hinges are supplied?

This product is supplied in a complete box of 10 pairs, containing 20 individual hinges.

Are the hinges sold individually?

No. The sales unit is a pair, but they must be ordered in the complete box quantity of 10 pairs.

Why do these hinges have no screw holes?

They are designed to be welded directly onto compatible steel doors and frames rather than fixed with screws.

What does double pressed mean?

Double-pressed construction produces a strong hinge intended for demanding steel-fabrication applications.

What are the hinge dimensions?

Each hinge is 75mm long, 60mm wide when fully open and 4mm thick.

What material and finish are used?

The hinges are manufactured from mild steel and supplied in a self-colour finish.

Can these hinges be painted?

Yes. After welding and proper surface preparation, a suitable protective paint or coating can be applied.

Can they be used outside?

Self-colour steel requires an appropriate corrosion-resistant coating before use in exposed, damp or exterior conditions.

Are screws included?

No screws are needed because these hinges are installed by welding.

Are these hinges fire-door certified?

No fire-door certification is declared for this product. Do not advertise it as fire rated.
