40 × 33mm Electro-Brass Plated Steel Cabinet Hinge

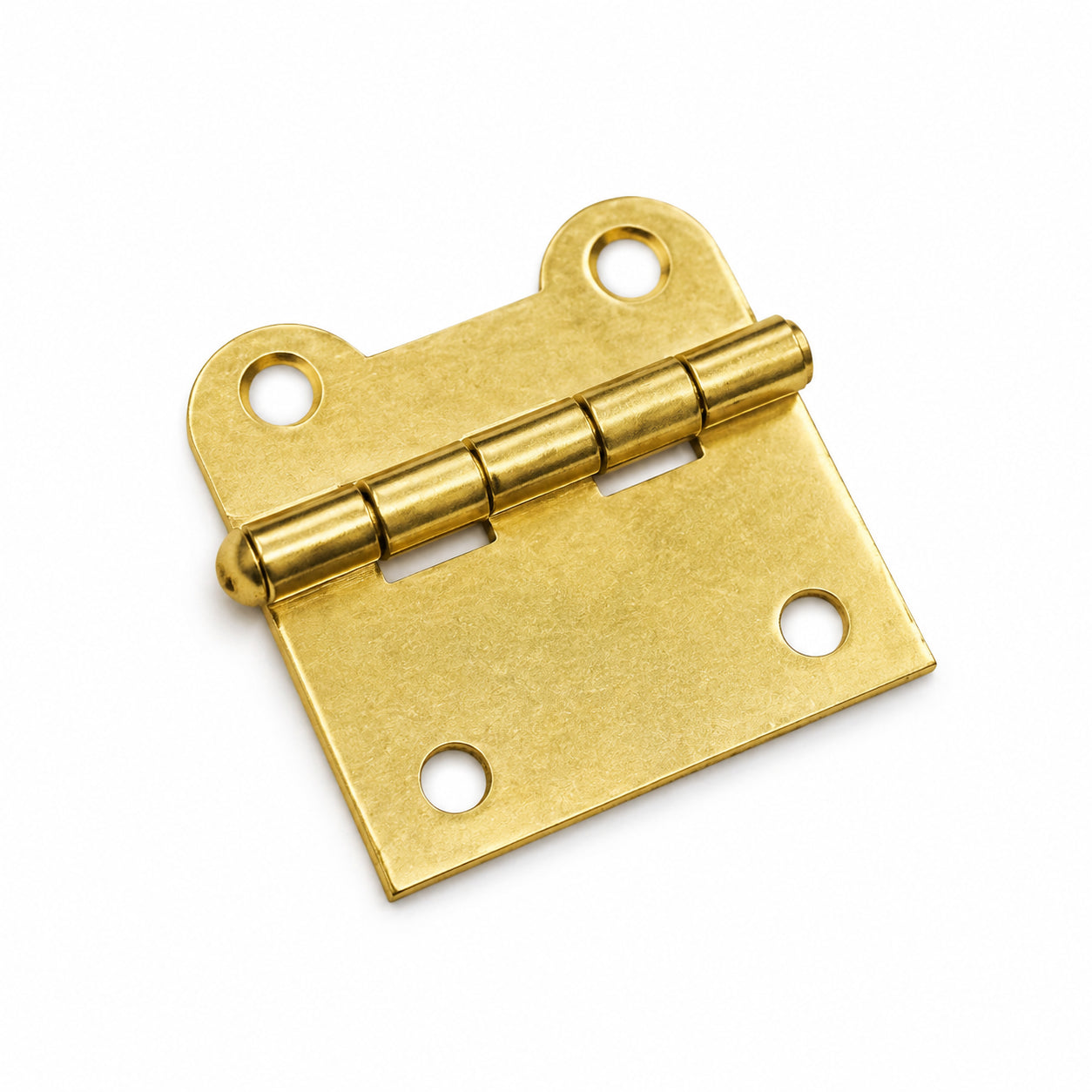

This electro-brass plated steel cabinet hinge measures 40mm in length with two asymmetric leaves: one 20mm wide and one 13mm wide, giving a total open width of 33mm. It is manufactured from steel with a warm electro-brass plated finish.

The asymmetric leaf configuration suits applications where one leaf must be narrower than the other — for example, where a cabinet door or lid meets a frame with limited fixing depth. The hinge is supplied as a single unit.

The fixing holes are countersunk and accept 3mm screws. The hinge has a 5mm-diameter pin.

Key features

• Steel construction with electro-brass plated finish
• 40mm hinge length
• Asymmetric leaves: 20mm and 13mm wide
• 33mm total open width
• 5mm-diameter pin
• Countersunk fixing holes for 3mm screws
• Warm brass and gold-coloured appearance
• Supplied as a single hinge

Specifications

Typical applications

• Small cabinet and cupboard doors
• Box lids and storage cases
• Furniture and fitted joinery
• Display cabinets and craft projects
• Light-duty panels and covers

Installation

1. Mark the hinge position on both the door and frame.
2. Align the hinge and mark the fixing-hole positions.
3. Drill pilot holes suitable for 3mm screws.
4. Fix the narrower 13mm leaf to the frame and the wider 20mm leaf to the door, or as required by the application.
5. Test movement and alignment before final tightening.

Fixing screws are not confirmed as included. Select screws of a suitable length and material for the substrate.

Questions and answers

What are the leaf dimensions?

The hinge has two asymmetric leaves: one measures 20mm wide and the other 13mm wide, both 40mm long. The total open width is 33mm.

What material and finish is this hinge?

It is manufactured from steel with an electro-brass plated finish. It is not solid brass.

What screw size does it accept?

The countersunk fixing holes accept 3mm screws. Select a suitable screw length for the substrate.

What is the pin diameter?

The hinge has a 5mm-diameter pin.

How many hinges are supplied?

This product is supplied as a single hinge.

Is it suitable for exterior use?

No exterior corrosion-performance rating is declared. It is not described as weatherproof.
