PRODUCT DESCRIPTION

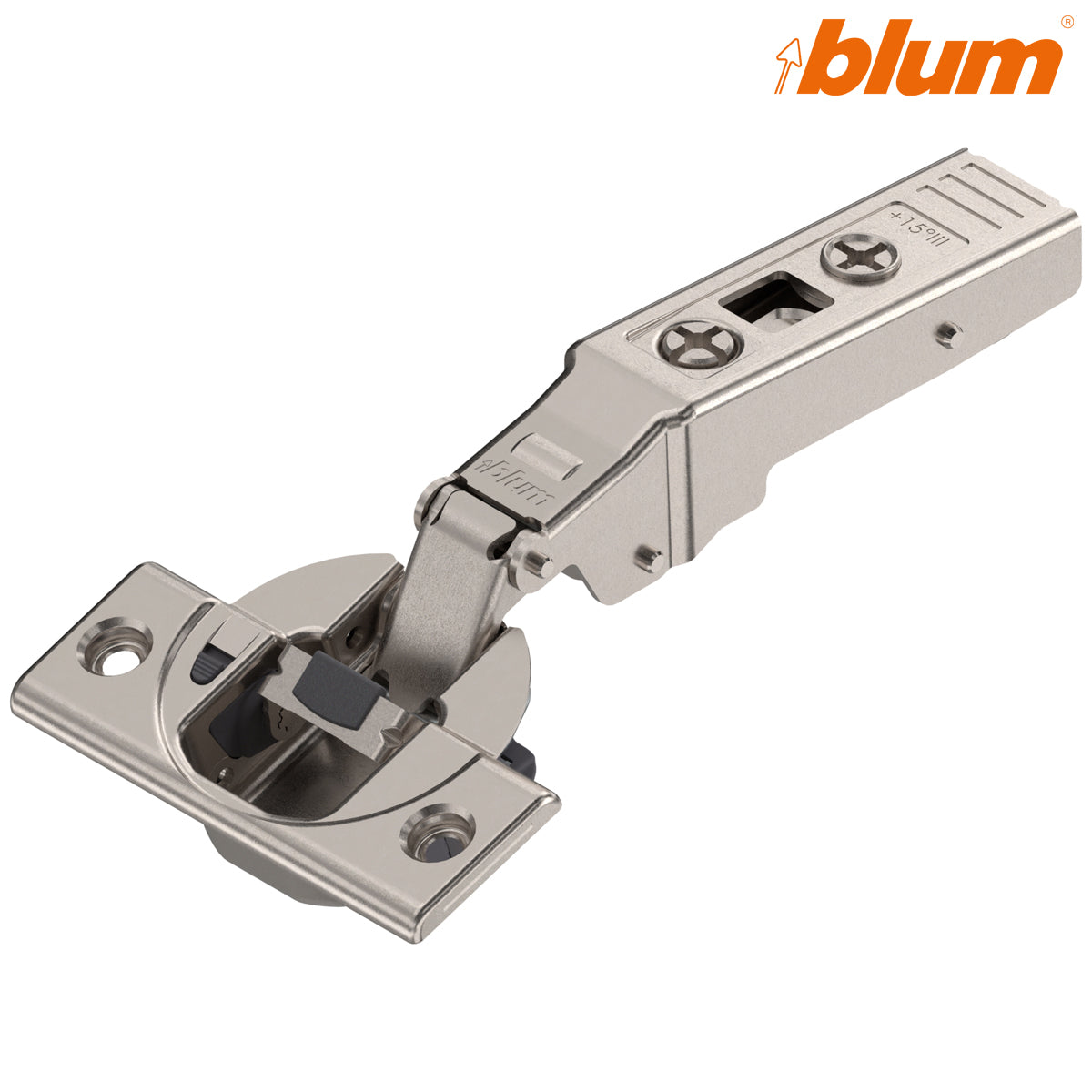

Blum 79B9454 +15° Type III Angled BLUMOTION Hinge
The Blum 79B9454 is a specialist CLIP top BLUMOTION hinge for +15° Type III angled cabinet applications with maximum-overlay doors. It is designed for angled or diagonal cabinet constructions where a conventional straight-arm hinge will not achieve the required door position.
The hinge opens to 95° and includes integrated, switchable BLUMOTION for smooth soft closing. It is also sprung to pull the door into its closed position.
Key features
- +15° Type III angled application
- Maximum-overlay door configuration
- 95° opening angle
- Integrated switchable BLUMOTION soft close
- Sprung closing action
- Screw-on 35 mm steel hinge cup
- Tool-free CLIP connection to a compatible mounting plate
- Three-dimensional adjustment with a suitable plate
- Spiral-screw depth adjustment
- Nickel-plated finish
- Supplied as one hinge
Technical specifications
| Brand | Blum |
|---|---|
| Part number | 79B9454 |
| Blum ID | 09347873 |
| Hart SKU | HI79B9454 |
| GTIN | 9002617794533 |
| Range | CLIP top BLUMOTION |
| Application | +15° Type III, maximum overlay |
| Opening angle | 95° |
| Closing | Sprung with switchable BLUMOTION |
| Cup fixing | Screw-on |
| Cup diameter | 35 mm |
| Approximate cup depth | 13 mm |
| Finish | Nickel plated |
| Mounting plate included | No |
| Quantity | One hinge |
Compatibility and fitting
Confirm the existing hinge number, +15° Type III geometry, maximum-overlay application, door thickness, drilling position and mounting-plate specification before ordering. The mounting-plate position can differ from a standard straight-arm hinge.
The mounting plate is sold separately. A trial installation is recommended for replacement work or custom angled cabinetry.
Shop Blum CLIP mounting plates or view all Blum CLIP top hinges.
Questions and answers
What does +15° Type III mean?
It identifies the specific Blum hinge geometry for this +15° angled cabinet application.
What does maximum overlay mean?
It describes the door position produced by this hinge geometry. Final coverage depends on the mounting plate and installation dimensions.
Does it have soft close?
Yes. Switchable BLUMOTION soft close is integrated into the hinge cup.
What is the opening angle?
The maximum opening angle is 95°.
Is the mounting plate included?
No. Select and order a compatible Blum CLIP mounting plate separately.
What does screw-on mean?
The hinge cup is secured to the door using screws. It does not refer to the separate mounting plate.
Can this replace any +15° hinge?
No. Confirm part number 79B9454, Type III geometry, maximum overlay, 95° opening and the mounting-plate arrangement.
TECHNICAL DETAILS
- Application: Overlay
- Finish: Nickel plated
- Colour: Nickel
- Material: Steel
