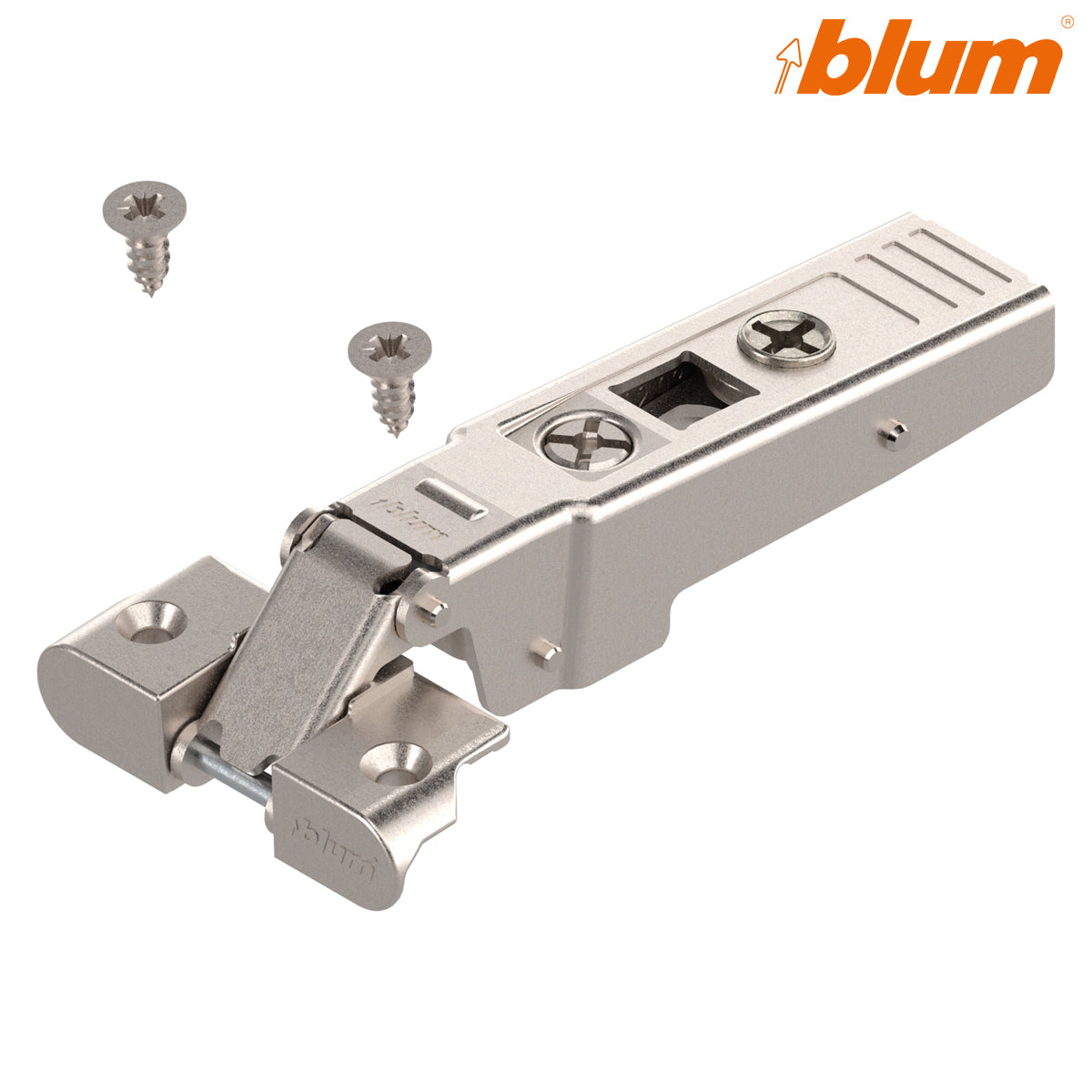

Blum 71T950A CLIP top 95° Aluminium-Frame Overlay Screw-On Hinge, Nickel

Blum 71T950A CLIP top 95° Aluminium-Frame Overlay Screw-On Hinge, Nickel

Stock Code: HI71T950A

£2.58 GBP
Sale
View full details

PRODUCT DESCRIPTION

Blum 71T950A CLIP top 95° Aluminium-Frame Overlay Hinge

Build a narrow aluminium-profile cabinet door with the Blum 71T950A, a specialist 95° sprung, self-closing overlay hinge. Its shaped screw-on door-side fitting is designed for a correctly prepared aluminium frame, not a conventional round 35 mm cup in timber. The steel arm and zinc cup have a nickel-plated finish. One hinge is supplied.

Prepare the aluminium profile accurately

The existing fitting data identifies 28 mm fixing centres, a 28/6.9 mm drilling pattern and approximately 17 mm routing depth. Confirm the current Blum drawing and the exact profile dimensions before machining. The frame must support the shaped cup, with sufficient edge clearance and the appropriate screws. A trial fit is prudent for an unusual extrusion or mitred front; do not substitute the drilling for a timber-door hinge.

Sprung closing, without built-in damping

The 71T950A’s spring pulls the door closed; it has no integrated BLUMOTION. Do not assume the 973A clip-on damper fits this version: the related 71T950AB is identified for that accessory. Match the exact hinge and accessory references before ordering. A separate compatible cabinet-side Blum CLIP mounting plate sets the required overlay and allows the fitted door to clip on and off.

What is supplied?

The existing listing specifies the aluminium-frame cup-fixing screws with this single hinge; the cabinet mounting plate and its fixings are separate. Check the supplied hardware against your profile and fitting drawing before installation. Side, depth and height adjustment depend on the selected mounting plate and cabinet construction.

Key details

  • Blum part 71T950A; Hart Wholesale SKU HI71T950A; barcode 9002617452020
  • 95° overlay application for a narrow aluminium-profile front
  • Sprung self-closing CLIP top arm; no integrated soft close
  • Screw-on shaped cup, nickel-plated steel arm and zinc cup
  • One hinge; matching cabinet mounting plate selected separately

Compare other fixing and closing options in the Blum CLIP top hinge collection.

Frequently Asked Questions

Will this hinge fit a standard timber cabinet door?

No. The shaped fitting is intended for a correctly machined narrow aluminium frame, not a standard round timber-door cup hole.

Does 71T950A include soft closing?

No. It has a closing spring without integrated BLUMOTION damping.

Is this the version for a 973A clip-on damper?

No. The related 71T950AB is identified for that accessory; confirm the exact combination in the fitting information.

Are the door-side screws included?

The product listing identifies aluminium-frame cup-fixing screws as included. Confirm they suit the chosen profile; the separate mounting plate requires its own appropriate fixing.

Is the mounting plate included?

No. Select a compatible CLIP plate for the required cabinet overlay.

Can the aluminium-frame door be removed from its plate?

Yes. The CLIP arm releases from a compatible plate without removing the cup from the prepared door.

TECHNICAL DETAILS

  • Application: Overlay
  • Finish: Nickel Plated
  • Colour: Nickel
  • Material: Steel
