Name: Blum 71T9780 CLIP top 95° Thick-Door Inset Knock-In Hinge – Nickel
Brand: JULIUS BLUM UK LTD
SKU: HI71T9780
Price: 2.09 GBP
Availability: InStock

PRODUCT DESCRIPTION

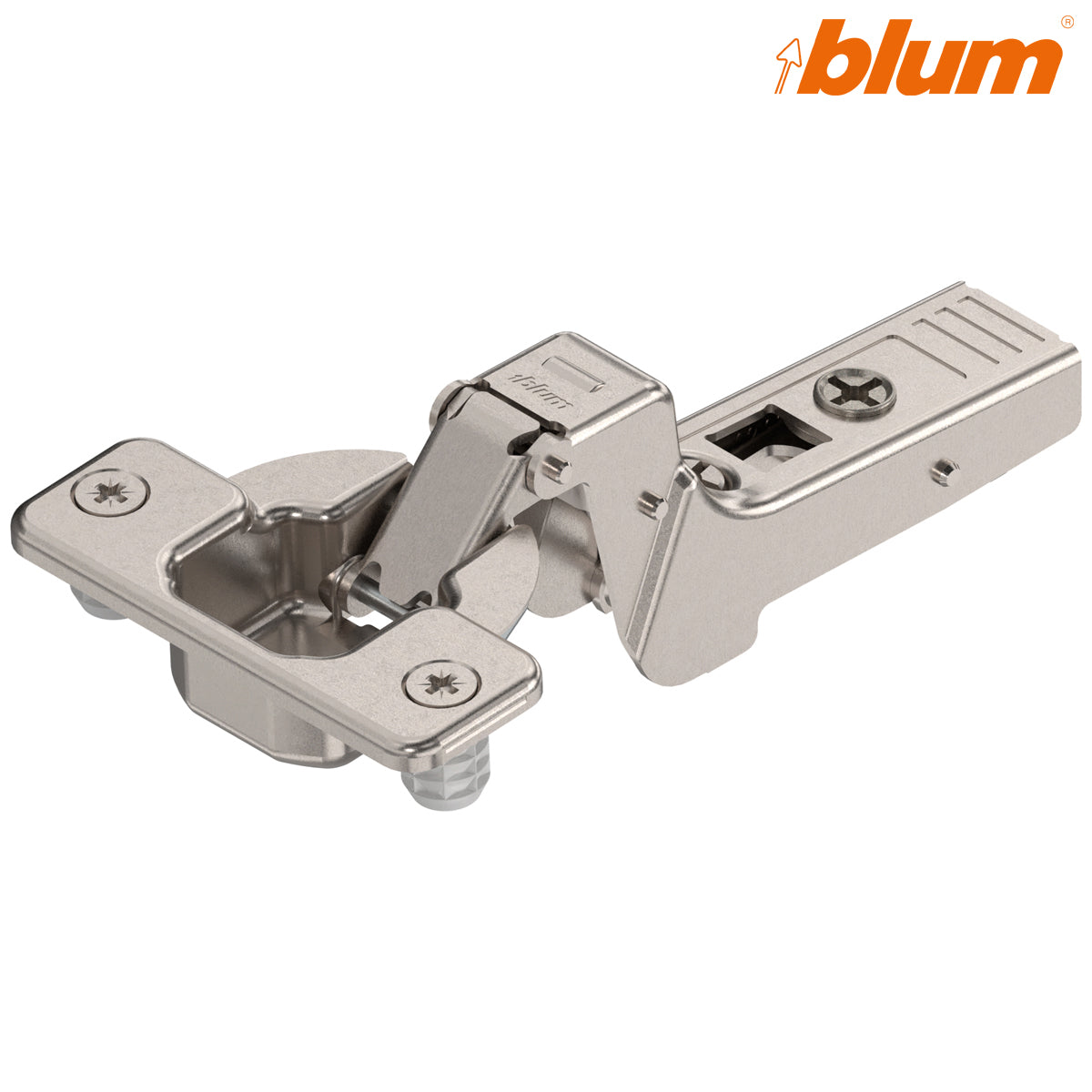

Blum 71T9780 CLIP top 95° Inset Knock-In Hinge

The Blum 71T9780 is a nickel-plated CLIP top hinge designed for thick and profiled inset cabinet doors. Its cranked hinge arm positions the closed door inside the cabinet opening, while the sprung mechanism provides a positive self-closing action.

The hinge opens to 95° and uses a knock-in 35mm hinge cup with pre-fitted fixing dowels. This provides a repeatable hinge-to-door fixing for workshop and production assembly using correctly prepared drilling and suitable insertion equipment.

This is a sprung, self-closing hinge and does not contain integrated BLUMOTION soft close.

Key features

95° opening angle
Inset cabinet-door application
Designed for thick and profiled furniture fronts
Suitable for front thicknesses from approximately 16mm to 32mm, subject to application planning
Sprung, self-closing action
No integrated BLUMOTION mechanism
Knock-in 35mm hinge cup with pre-fitted dowels
Tool-free CLIP connection between the hinge and mounting plate
Three-dimensional door adjustment
Convenient spiral-screw depth adjustment
Nickel-plated steel construction
Supplied as one hinge

Inset-door application

An inset hinge positions the closed door inside the cabinet opening rather than allowing it to cover the cabinet side panel. Correct clearance must be allowed between the edge of the door and the cabinet throughout the opening movement.

The door thickness, edge profile, hinge-cup position, mounting-plate height and cabinet construction all affect the final inset reveal and door clearance.

Knock-in hinge-cup fixing

The knock-in hinge cup has pre-fitted dowels that are pressed into two correctly drilled 8mm holes beside the 35mm cup recess. This provides a consistent fixing without separate cup-fixing screws.

Suitable insertion equipment or an appropriate workshop assembly method is required. Knock-in fixing should not be confused with Blum's lever-operated, tool-free INSERTA system.

The knock-in specification refers to the hinge-to-door connection. A separate Blum CLIP mounting plate is required on the cabinet.

Technical specifications

Hart stock code	HI71T9780
Blum part number	71T9780
Blum item number	03806453
EAN/GTIN	9002617451276
Application	Inset
Opening angle	95°
Closing action	Sprung/self-closing
Integrated BLUMOTION	No
Hinge cup diameter	35mm
Cup drilling depth	12.3mm
Fixing-hole diameter	8mm
Distance between fixing holes	45mm
Fixing-hole offset	9.5mm
Cup drilling distance	3–7mm
Side adjustment	Approximately ±2mm
Depth adjustment	Approximately +3/−2mm
Finish	Nickel plated

Please note: A compatible Blum CLIP mounting plate is required and sold separately. Suitable drilling and insertion equipment is required for the knock-in hinge-cup fixing.

Frequently asked questions

Does the Blum 71T9780 have soft close?

No. The 71T9780 is a sprung, self-closing CLIP top hinge without integrated BLUMOTION.

What is the difference between sprung and soft close?

A sprung hinge pulls the door into its closed position. A BLUMOTION hinge also includes a damping mechanism that slows the final closing movement.

What is an inset cabinet hinge?

An inset hinge positions the closed door inside the cabinet opening rather than over the cabinet side panel.

Is knock-in the same as INSERTA?

No. A knock-in hinge uses pre-fitted dowels and suitable insertion equipment. INSERTA uses a lever-operated, tool-free cup-fixing mechanism.

Is the mounting plate included?

No. A compatible Blum CLIP mounting plate must be selected and ordered separately.

Is this hinge suitable for thick doors?

Yes. It is designed for thick and profiled fronts, with Blum's planning information covering thicknesses from approximately 16mm to 32mm subject to application geometry.

TECHNICAL DETAILS

Application: Inset
Finish: Nickel Plated
Colour: Nickel
Material: Steel
