BLUM CLIP BLUMOTION CRISTALLO HINGE 110deg OVERLAY GLUE-ON

BLUM CLIP BLUMOTION CRISTALLO HINGE 110deg OVERLAY GLUE-ON

Stock Code: HI71B4500C

£7.73 GBP
Sale
View full details

PRODUCT DESCRIPTION

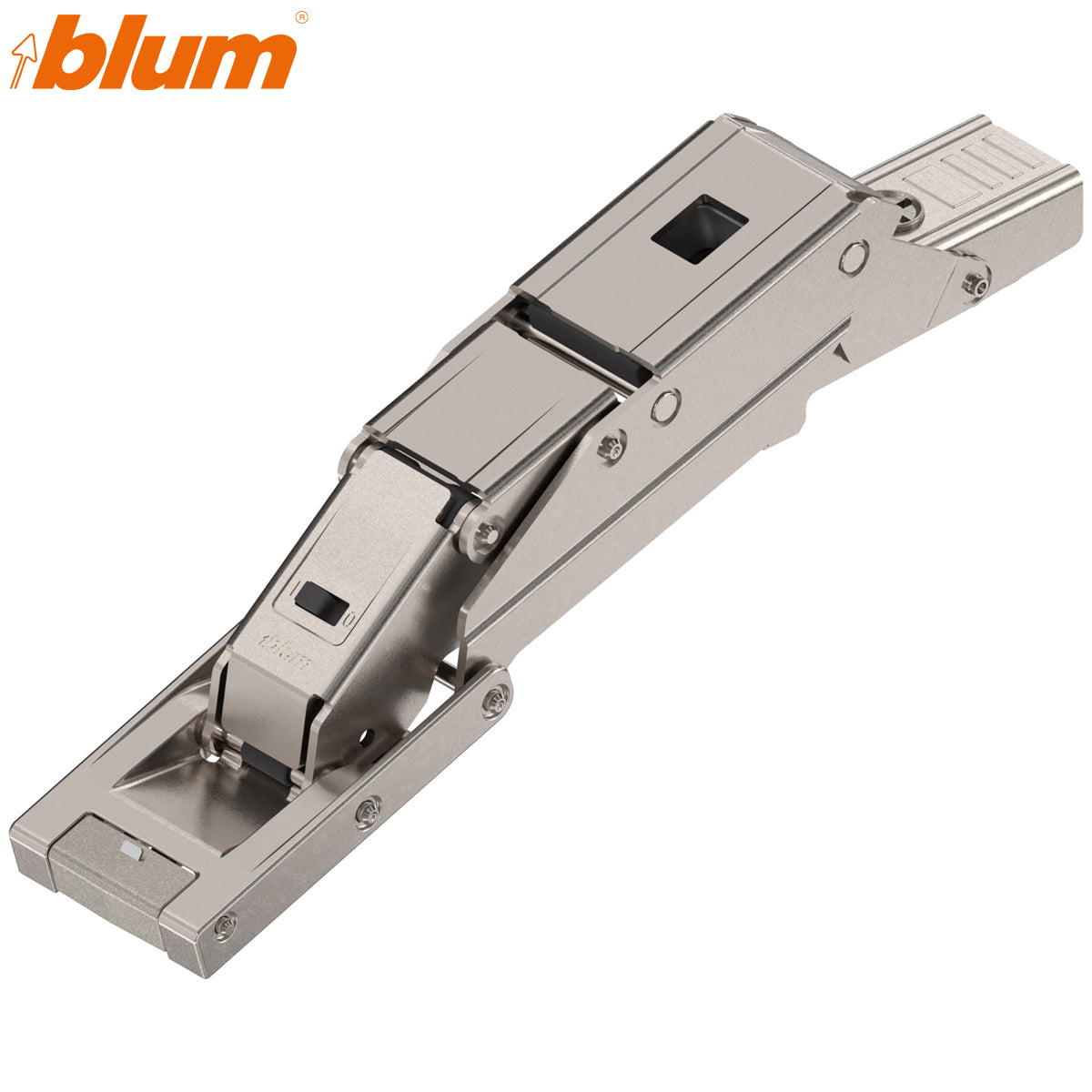

Blum 71B4500C CRISTALLO 110° glass-door BLUMOTION hinge

The Blum 71B4500C is a concealed hinge for suitable glass and mirror cabinet doors. It combines a 110° opening angle with integrated BLUMOTION soft close and uses the CRISTALLO system, where the door-side adhesion plate is bonded to the rear of the glass rather than using a conventional hinge-cup hole.

Technical details

  • Blum part number: 71B4500C
  • Application: glass and mirror cabinet doors
  • Opening angle: 110°
  • Closing action: sprung with integrated, switchable BLUMOTION
  • Glass planning range: approximately 3–8 mm, subject to the complete Blum planning information
  • Adjustment: side ±2 mm, depth +3 mm / −2 mm, with height adjustment through a suitable mounting plate
  • Material and finish: nickel-plated steel
  • Quantity: one hinge

CRISTALLO components and fitting

This listing supplies one hinge. A compatible door-side adhesion plate, cabinet-side CLIP mounting plate and suitable professional glass-bonding process are required separately.

The associated Blum CRISTALLO adhesion plate is bonded to the rear of the glass or mirror door. The hinge then connects to the adhesion plate without drilling a conventional cup hole through the door. An appropriate Blum CLIP top mounting plate is also required on the cabinet side.

Final overlay, half-overlay or inset planning depends on the adhesion-plate position, cabinet construction, glass clearances and the selected mounting plate. Allow the clearance required by the complete installation plan to help prevent contact between the door and cabinet.

Installation guidance

Bonding the adhesion plate is a specialist glass operation. Use an experienced glass manufacturer to confirm surface preparation, bonding method and suitability for the actual glass or mirror door. BLUMOTION can be deactivated on an individual hinge when a lighter door needs less damping.

Frequently Asked Questions

Does the Blum 71B4500C need a hole drilled through the glass?

No conventional hinge-cup hole is required. The CRISTALLO adhesion plate is bonded to the rear surface of the glass or mirror door.

Is the CRISTALLO adhesion plate included?

No. The compatible door-side adhesion plate must be purchased separately.

Is the cabinet mounting plate included?

No. A compatible cabinet-side Blum CLIP top mounting plate must also be ordered separately.

Does this hinge have integrated soft close?

Yes. BLUMOTION is built into the hinge and can be switched off on an individual hinge when required.

What glass thickness is suitable?

The existing product specification covers approximately 3–8 mm glass or mirror fronts. Confirm the final application against the complete Blum planning information.

Can this hinge be used for overlay, half-overlay or inset doors?

The final door configuration depends on the adhesion-plate position, cabinet construction and mounting-plate selection. Check the planning dimensions before ordering.

TECHNICAL DETAILS

  • Application: Overlay
  • Finish: Nickel
  • Colour: Nickel
  • Material: Steel
