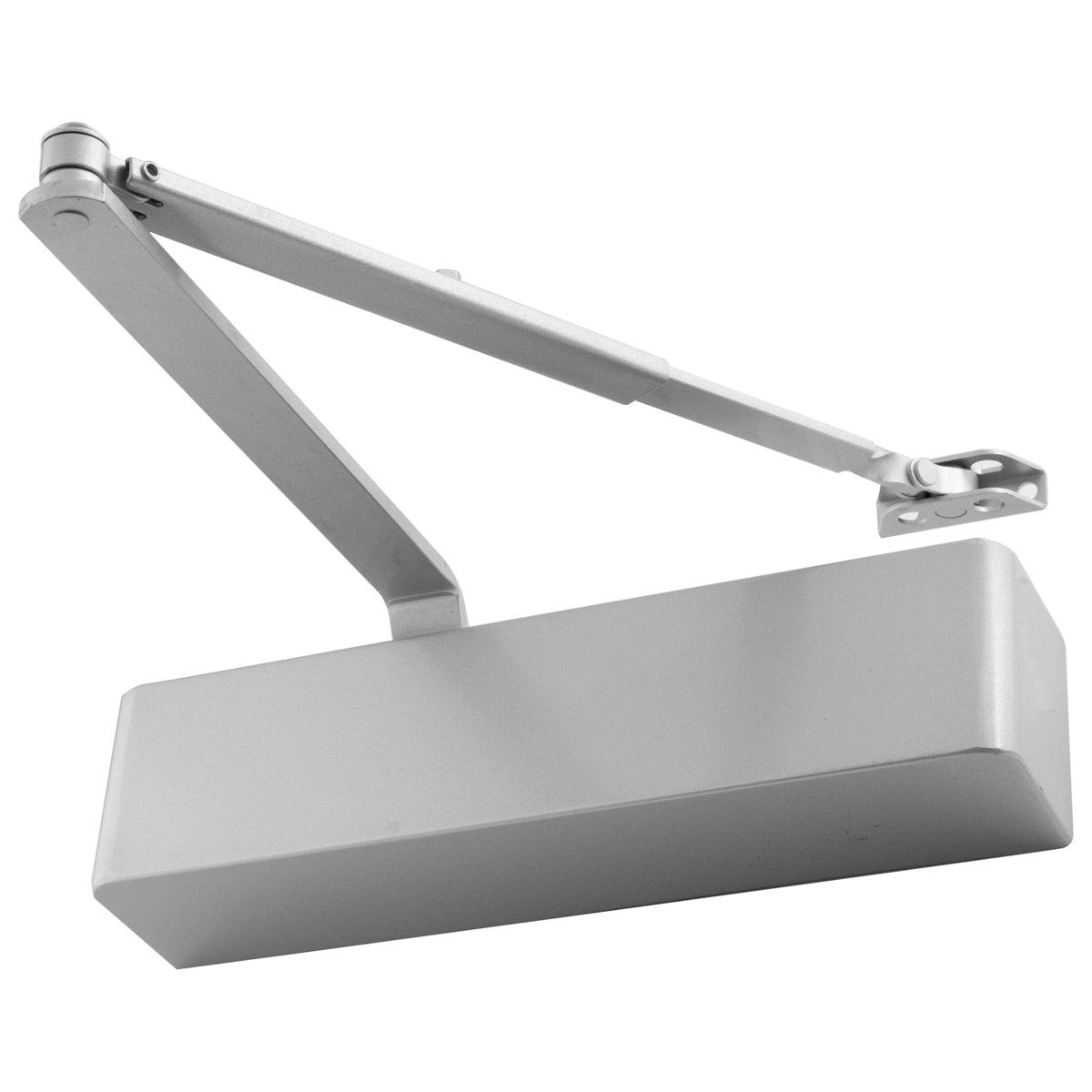

The Eclipse 101 Series Overhead Door Closer in Silver is a heavy-duty, power-adjustable closer designed for the most demanding door applications. With a power size range of 3 to 6 and a maximum door weight of 120kg, the 101 Series steps well beyond the capability of standard Size 3 closers - making it the correct specification for large, heavy, or high-traffic doors in commercial, industrial, and public building environments.

Where the 83 Series handles doors up to 80kg, the 101 Series extends that to 120kg whilst adding backcheck functionality - a hydraulic resistance that slows the door as it opens wide, protecting the door, frame, and wall from impact damage in high-traffic or windy conditions. Universal application across Figures 1, 61, and 66 ensures flexibility across a wide range of door and frame configurations, and the independently adjustable closing speed, latching speed, and backcheck valves allow precise on-site configuration. CE approved and fire rated for peace of mind on fire door installations.

Key Features:

• Power adjustable Size 3-6 - suitable for doors up to 120kg
• Maximum door width 1100mm
• Backcheck function - hydraulic resistance protects door and frame on wide opening
• Adjustable closing speed, latching speed, and backcheck - independently configurable
• CE approved and fire rated
• Universal application - Figures 1, 61, and 66
• Silver finish - neutral tone for commercial and public building environments
• Suitable for heavy commercial, industrial, and high-traffic door applications
• Screw-fix overhead installation

Technical Specifications:

• SKU: DF2012K2
• Series: 101 Series
• Power Size: Adjustable Size 3-6
• Maximum Door Weight: 120kg
• Maximum Door Width: 1100mm
• Finish: Silver
• Material: Aluminium / Steel
• Certification: CE Approved, Fire Rated
• Functions: Adjustable closing speed, latching speed, backcheck
• Application: Figures 1, 61, 66 - universal
• Fixing: Screw-fix overhead mount

Use the supplied template to mark fixing positions on the door and frame. Fix the closer body to the door face and attach the arm to the frame bracket. Adjust the power size, closing speed, latching speed, and backcheck valves independently with a hex key to suit the door weight, width, and usage. Full fitting instructions and fixings are supplied.
