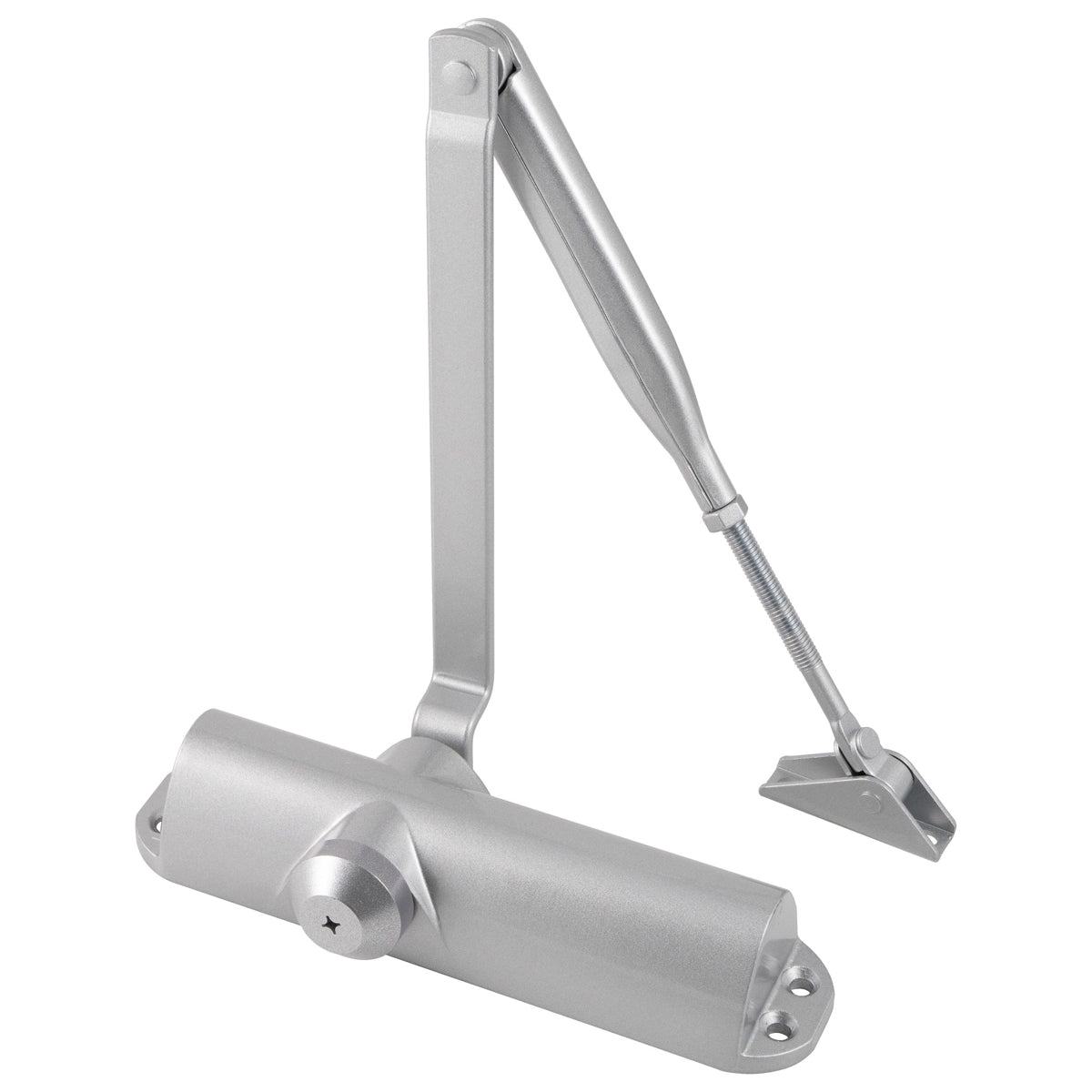

The Eclipse 83 Series Adjustable Overhead Door Closer in Silver is a variable power, Certifire-approved closer offering enhanced on-site adjustability for installers who need precise control over closing performance across a range of door types and conditions. The adjustable power size range of 2 to 4 - tested at sizes 3 to 4 - covers doors up to 80kg and widths up to 1100mm, and the closer can be fine-tuned by template for consistent, repeatable results across multiple installations.

As with the full 83 Series specification, this closer is Certifire approved, CE 1121 marked, and UKCA compliant, and carries a BSEN1634 fire rating for FD30, FD60, FD90, and FD120 timber fire doors. The parallel arm bracket is included, and universal application across Figures 1, 61, and 66 ensures broad compatibility. The silver finish delivers a clean, neutral profile suited to commercial, educational, healthcare, and public building environments where compliance and performance are equally important.

Key Features:

• Adjustable variable power Size 2-4 - tested at power sizes 3 to 4
• Adjustable by template - consistent, repeatable installation across multiple doors
• Suitable for doors up to 80kg and widths up to 1100mm
• Certifire approved - independently certified closing performance
• CE 1121 marked and UKCA compliant
• Fire rated to BSEN1634 - FD30, FD60, FD90, and FD120 timber fire doors
• Universal application - Figures 1, 61, and 66
• Parallel arm bracket included
• Adjustable closing and latching speed
• Silver finish - neutral and unobtrusive across commercial environments

Technical Specifications:

• SKU: DF2012L
• Series: 83 Series
• Power Size: Adjustable Size 2-4 (tested Size 3-4)
• Maximum Door Weight: 80kg
• Maximum Door Width: 1100mm
• Finish: Silver
• Material: Aluminium / Steel
• Certification: Certifire, CE 1121, UKCA
• Fire Rating: BSEN1634 FD30, FD60, FD90, FD120 (Timber)
• Application: Figures 1, 61, 66 - universal
• Includes: Closer body, closing arm, parallel arm bracket
• Fixing: Screw-fix overhead mount

Use the supplied template to mark fixing positions on the door face and frame. Fix the closer body to the door face and attach the parallel arm bracket to the frame. Connect the closing arm and adjust the power size, closing speed, and latching speed valves with a hex key to the required settings. Full fitting instructions, template, and fixings are supplied.
