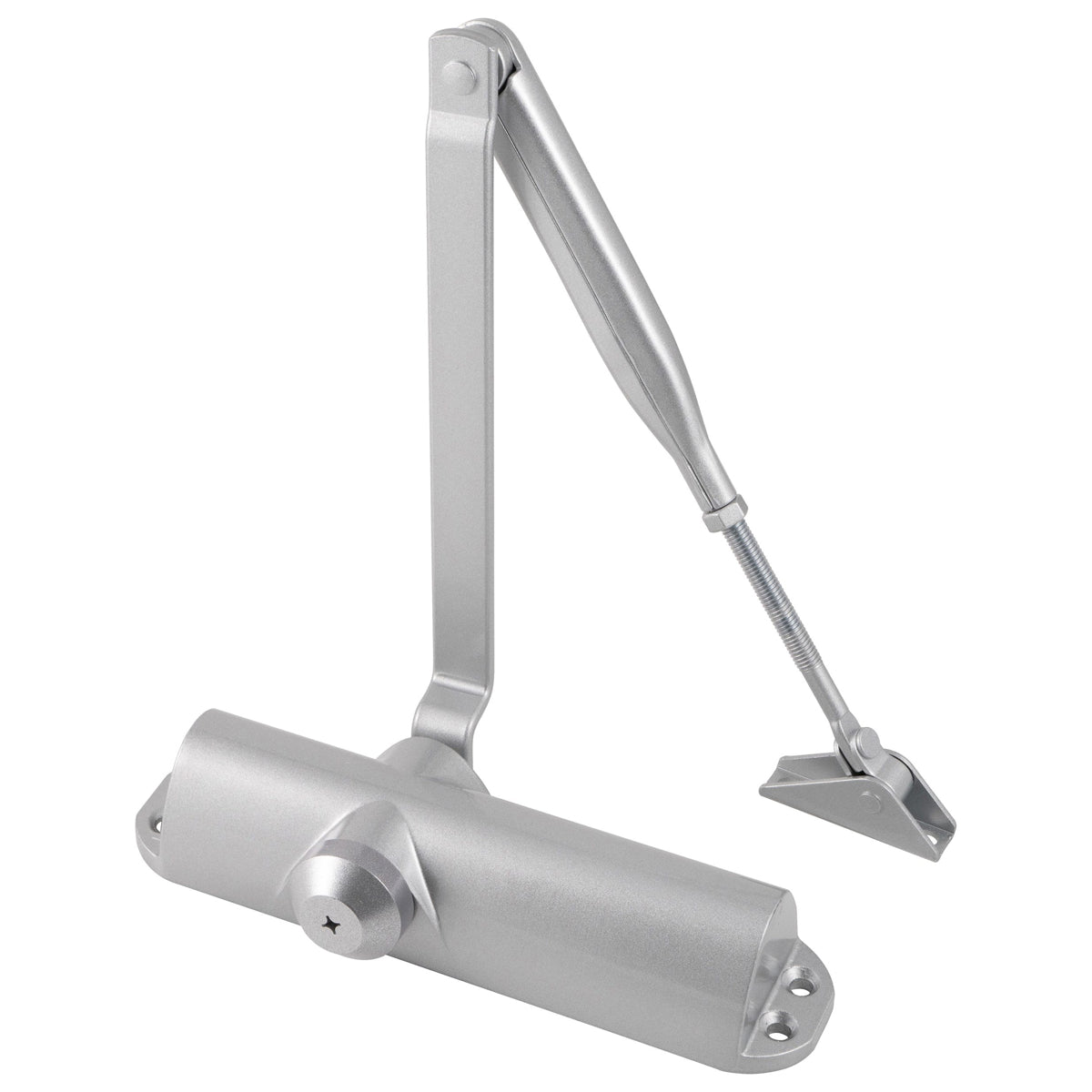

The Eclipse 83 Series Overhead Door Closer in Silver is a variable power, Certifire-approved closer designed for a wide range of commercial, public, and high-traffic door applications. With a variable power size of 2 to 4 - tested at power sizes 3 to 4 - this closer adapts to doors up to 80kg and widths up to 1100mm, making it suitable for doors beyond the reach of standard budget closers.

CE 1121 marked and UKCA compliant, and fire rated to BSEN1634 for FD30, FD60, FD90, and FD120 timber fire doors, the 83 Series is the specification-grade choice for projects where compliance documentation and certified fire door performance are required. The universal application covering Figures 1, 61, and 66, combined with the included parallel arm bracket, gives installers flexibility across a broad range of door and frame configurations. The adjustable closing and latching speed valves allow the closer to be fine-tuned on site for optimal performance.

Key Features:

• Variable power Size 2-4 - tested at power sizes 3 to 4
• Suitable for doors up to 80kg and widths up to 1100mm
• Certifire approved - independently certified closing performance
• CE 1121 marked and UKCA compliant
• Fire rated to BSEN1634 - FD30, FD60, FD90, and FD120 timber fire doors
• Universal application - Figures 1, 61, and 66
• Parallel arm bracket included
• Adjustable closing and latching speed
• Adjustable by template for consistent installation
• Silver finish - neutral tone for commercial and public building environments

Technical Specifications:

• SKU: DF2012J
• Series: 83 Series
• Power Size: Variable Size 2-4 (tested Size 3-4)
• Maximum Door Weight: 80kg
• Maximum Door Width: 1100mm
• Finish: Silver
• Material: Aluminium / Steel
• Certification: Certifire, CE 1121, UKCA
• Fire Rating: BSEN1634 FD30, FD60, FD90, FD120 (Timber)
• Application: Figures 1, 61, 66 - universal
• Includes: Closer body, closing arm, parallel arm bracket
• Fixing: Screw-fix overhead mount

Use the supplied template to mark fixing positions on the door face and frame. Fix the closer body to the door face and attach the parallel arm bracket to the frame. Connect the closing arm and adjust the power size, closing speed, and latching speed valves with a hex key to suit the door. Full fitting instructions, template, and fixings are supplied.
