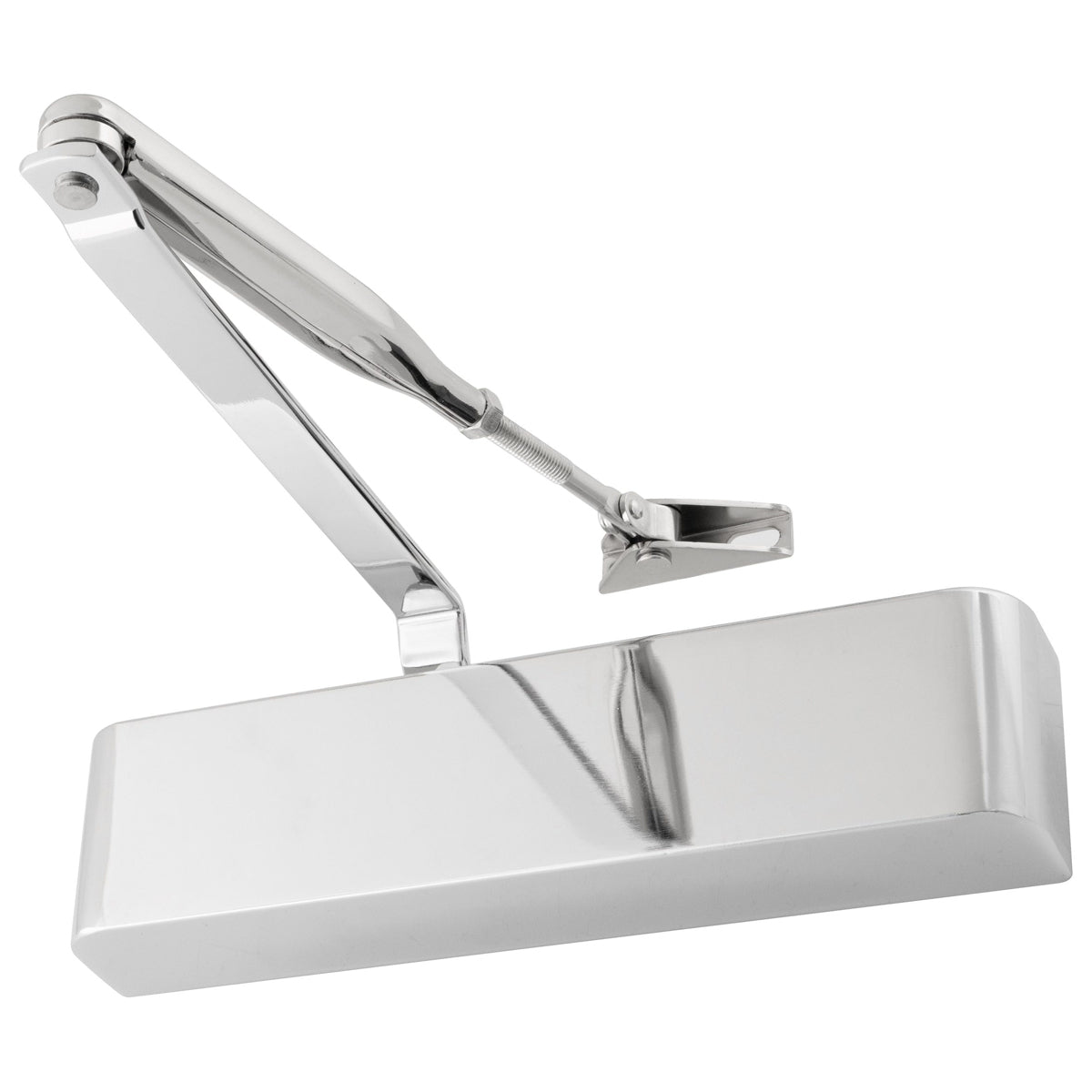

The Eclipse 83 Series Overhead Door Closer with Cover in Polished Chrome Plated finish combines full specification fire door performance with a premium, design-conscious appearance. The square cover plate conceals the closer body for a clean, architectural profile, while the polished chrome finish coordinates with contemporary chrome door furniture across commercial, hospitality, and high-end residential applications.

Certifire approved, CE 1121 marked, and UKCA compliant, this closer is fire rated to BSEN1634 for FD30, FD60, FD90, and FD120 timber fire doors - making it equally suited to specification projects where compliance is non-negotiable and to premium fit-outs where the hardware finish is a deliberate design decision. Variable power Size 2-4 covers doors up to 80kg and widths up to 1100mm, with universal application across Figures 1, 61, and 66 for maximum installation flexibility.

Key Features:

• Variable power Size 2-4 - suitable for doors up to 80kg and 1100mm wide
• Square cover plate included - conceals closer body for a refined finish
• Certifire approved - independently certified closing performance
• CE 1121 marked and UKCA compliant
• Fire rated to BSEN1634 - FD30, FD60, FD90, and FD120 timber fire doors
• Universal application - Figures 1, 61, and 66
• Parallel arm bracket included
• Adjustable closing and latching speed
• Adjustable by template for consistent installation
• Polished Chrome Plated finish - premium appearance for chrome ironmongery schemes

Technical Specifications:

• SKU: DF2012J1
• Series: 83 Series
• Power Size: Variable Size 2-4
• Maximum Door Weight: 80kg
• Maximum Door Width: 1100mm
• Finish: Polished Chrome
• Material: Aluminium / Steel
• Certification: Certifire, CE 1121, UKCA
• Fire Rating: BSEN1634 FD30, FD60, FD90, FD120 (Timber)
• Application: Figures 1, 61, 66 - universal
• Includes: Closer body, closing arm, parallel arm bracket, square cover plate
• Fixing: Screw-fix overhead mount

Use the supplied template to mark fixing positions on the door face and frame. Fix the closer body to the door face and attach the parallel arm bracket to the frame. Connect the closing arm, fit the cover plate over the closer body, and adjust the power size, closing speed, and latching speed valves with a hex key. Full fitting instructions, template, and fixings are supplied.
