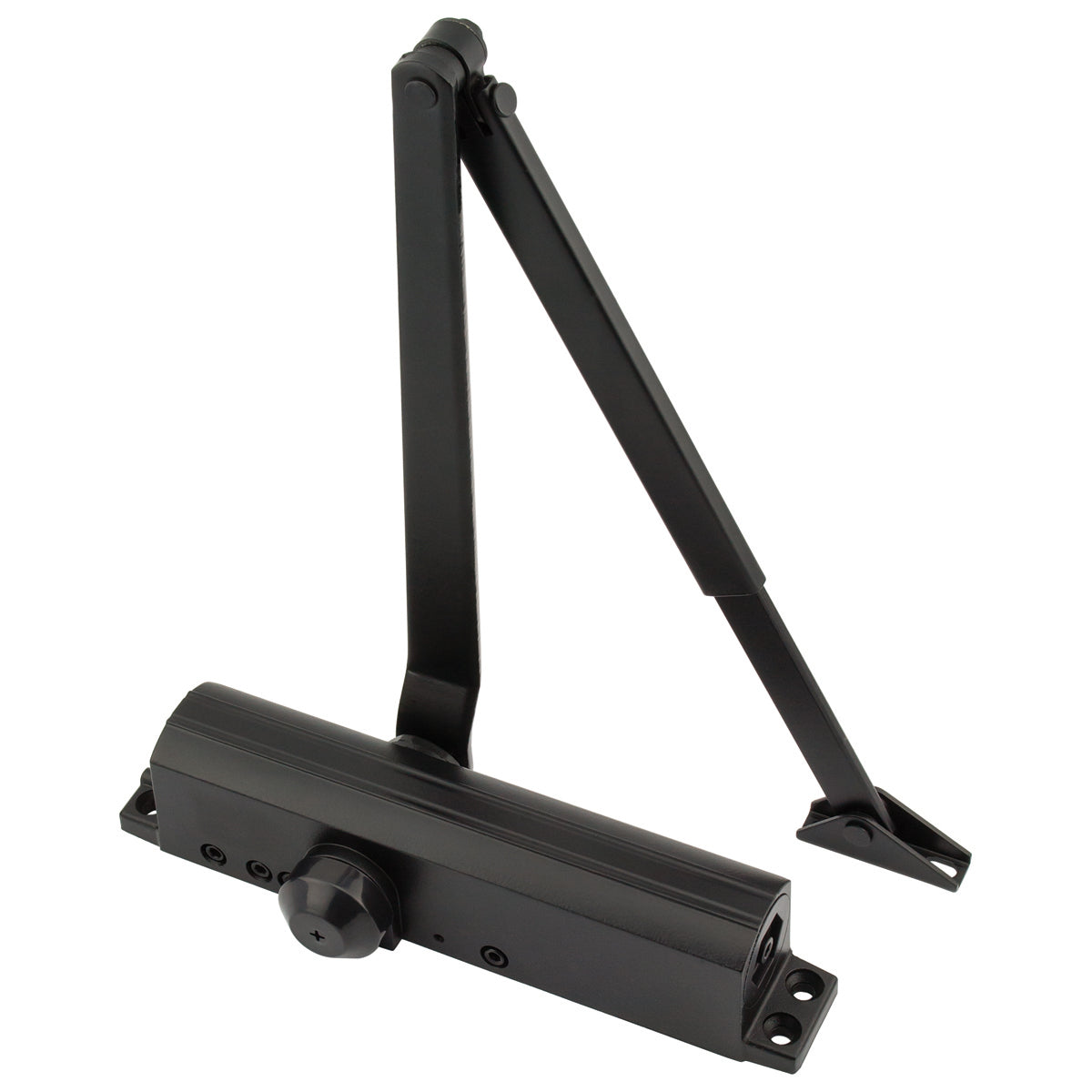

The Eclipse 93 Series Overhead Door Closer Body and Arm in Matt Black is a mid-range, power-adjustable closer that steps above the budget 73 Series and the specification-grade 83 Series to offer backcheck as standard - a feature that protects door frames and adjacent walls from impact on doors that open wide or are subject to forceful use. Supplied as a body and arm set, this closer covers doors up to 80kg and widths up to 1100mm with a power adjustable Size 2 to 4 range.

The 93 Series carries an extended fire rating to BSEN1634 for FD30, FD60, FD90, and FD120 on timber doors and FD240 on steel doors - making it one of the most comprehensively fire-rated closers in this power class. UKCA and CE approved throughout. The matt black finish suits black ironmongery schemes, dark-painted doors, and contemporary commercial or residential environments where a matte surface is the deliberate choice. Universal application across Figures 1, 61, and 66 ensures broad installation compatibility.

Key Features:

• Power adjustable Size 2-4 - suitable for doors up to 80kg and 1100mm wide
• Backcheck function included - hydraulic resistance protects door and frame on wide opening
• Adjustable closing speed, latching speed, and backcheck - independently configurable
• UKCA and CE approved
• Fire rated to BSEN1634 - FD30, FD60, FD90, FD120 (Timber) and FD240 (Steel)
• Universal application - Figures 1, 61, and 66
• Matt Black finish - ideal for black ironmongery schemes and contemporary interiors
• Supplied as body and arm set
• Screw-fix overhead installation

Technical Specifications:

• SKU: DF2012M7
• Series: 93 Series
• Power Size: Adjustable Size 2-4
• Maximum Door Weight: 80kg
• Maximum Door Width: 1100mm
• Finish: Matt Black
• Colour: Black
• Material: Aluminium / Steel
• Certification: UKCA, CE Approved
• Fire Rating: BSEN1634 FD30, FD60, FD90, FD120 (Timber) / FD240 (Steel)
• Functions: Adjustable closing speed, latching speed, backcheck
• Application: Figures 1, 61, 66 - universal
• Supplied: Body and arm
• Fixing: Screw-fix overhead mount

Fix the closer body to the top of the door face using the supplied screws and template. Attach the closing arm to the frame bracket. Adjust the power size, closing speed, latching speed, and backcheck valves with a hex key to suit the door. Full fitting instructions and fixings are supplied.
