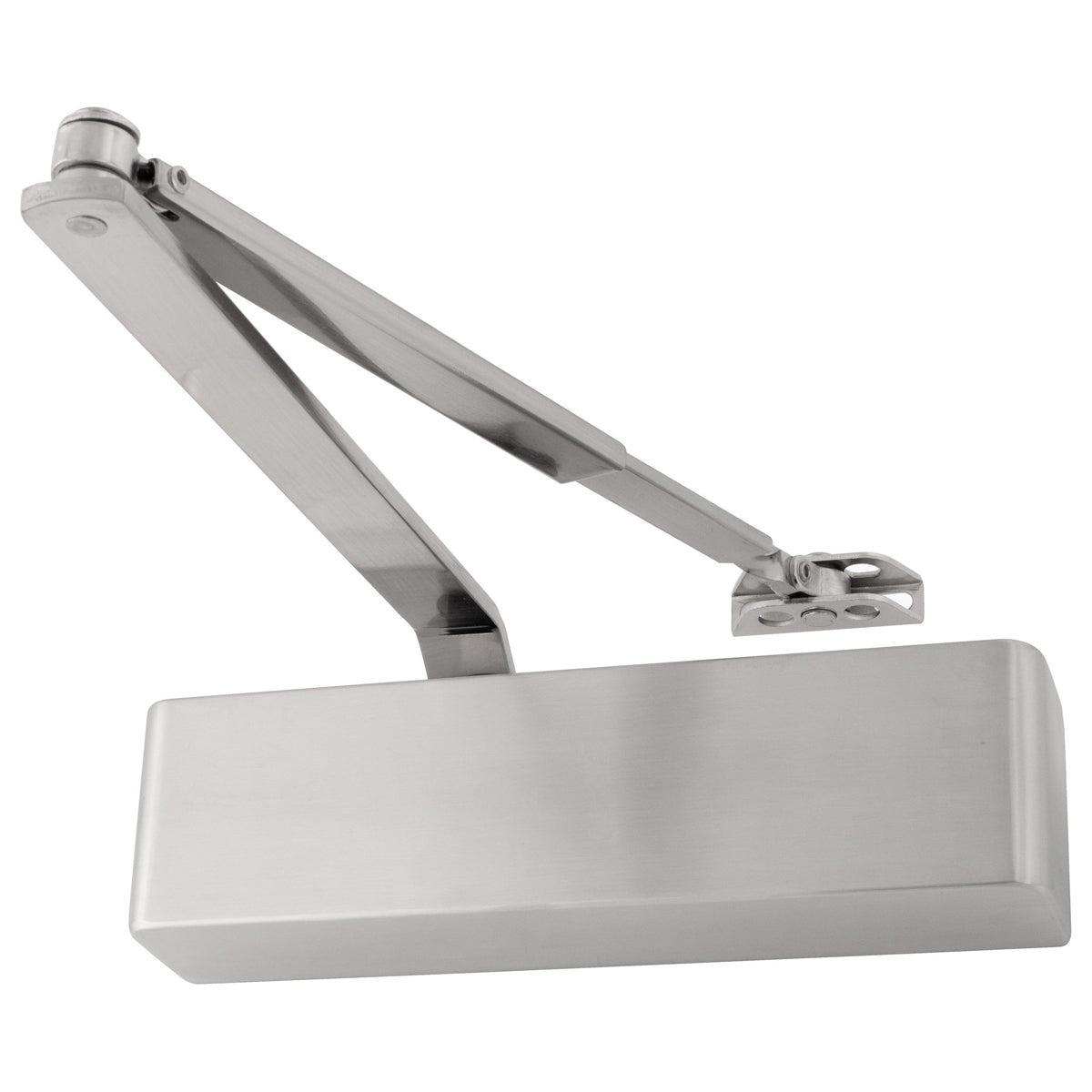

The Eclipse 93 Series Overhead Door Closer in Satin Nickel Plated finish is a mid-range, power-adjustable closer with backcheck as standard, designed for doors up to 80kg and widths up to 1100mm. The satin nickel finish occupies a distinctive position in the hardware spectrum - warmer than polished chrome, cooler than brass, and more refined than silver - making it the considered choice for contemporary interiors where a softer metallic tone is preferred without sacrificing a premium appearance.

UKCA and CE approved, and fire rated to BSEN1634 for FD30, FD60, FD90, and FD120 timber fire doors, the 93 Series SNP delivers full compliance alongside the practical benefit of independently adjustable closing speed, latching speed, and backcheck. The backcheck function provides hydraulic resistance as the door opens wide, protecting the door leaf, frame, and adjacent wall from damage in high-traffic or exposed locations. Compatible with Figure 1 and Figure 61 installations.

Key Features:

• Power adjustable Size 2-4 - suitable for doors up to 80kg and 1100mm wide
• Backcheck function - hydraulic resistance protects door and frame on wide opening
• Adjustable closing speed, latching speed, and backcheck - independently configurable
• UKCA and CE approved
• Fire rated to BSEN1634 - FD30, FD60, FD90, FD120 (Timber)
• Compatible with Figure 1 and Figure 61 installations
• Satin Nickel Plated finish - warm, refined metallic tone for contemporary interiors
• Screw-fix overhead installation

Technical Specifications:

• SKU: DF2013
• Series: 93 Series
• Power Size: Adjustable Size 2-4
• Maximum Door Weight: 80kg
• Maximum Door Width: 1100mm
• Finish: Satin Nickel Plated
• Material: Aluminium / Steel
• Certification: UKCA, CE Approved
• Fire Rating: BSEN1634 FD30, FD60, FD90, FD120 (Timber)
• Functions: Adjustable closing speed, latching speed, backcheck
• Application: Figure 1, Figure 61
• Fixing: Screw-fix overhead mount

Use the supplied template to mark fixing positions on the door face and frame. Fix the closer body to the door face and attach the arm to the frame bracket. Adjust the power size, closing speed, latching speed, and backcheck valves independently with a hex key. Full fitting instructions and fixings are supplied.
