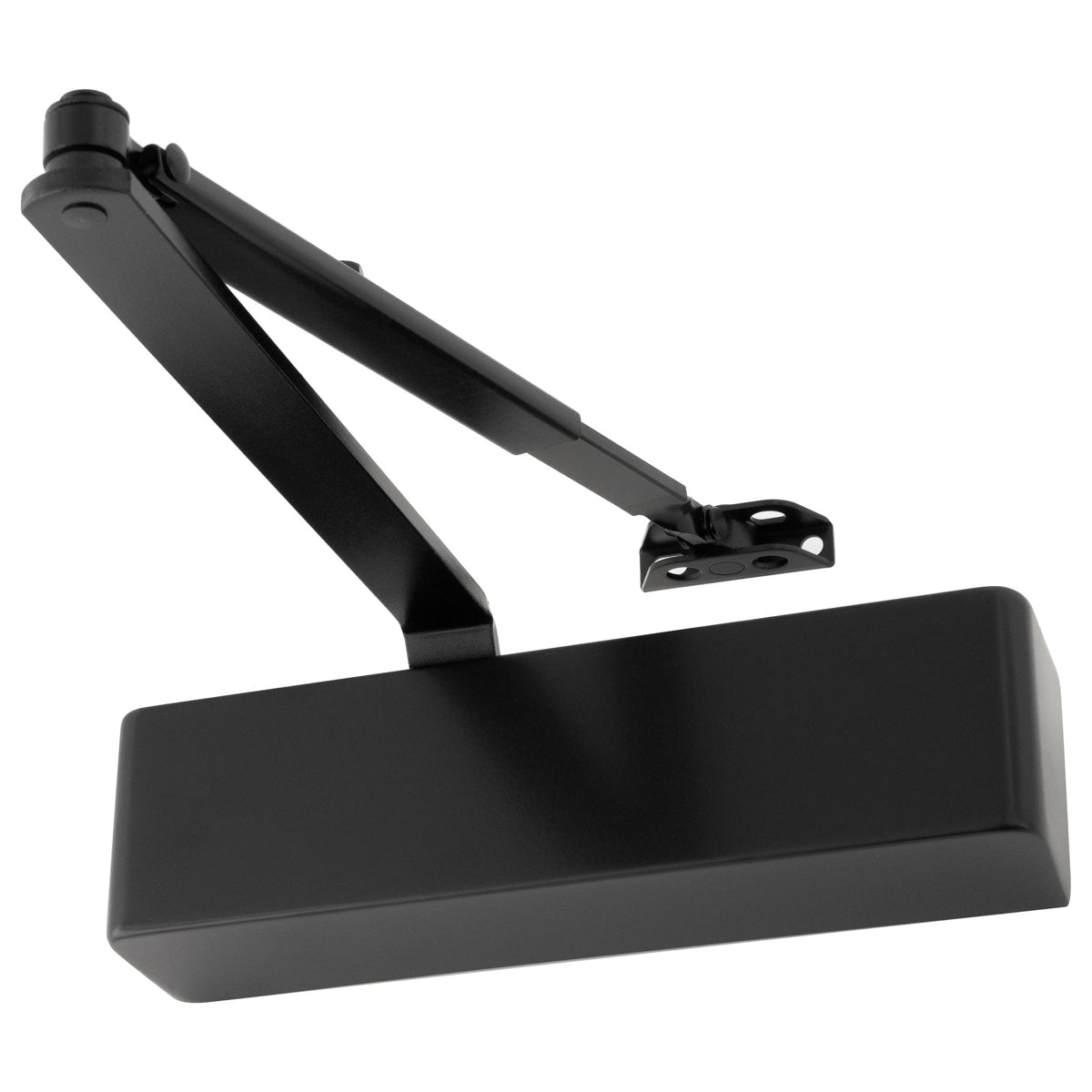

The Eclipse 93 Series Radius Overhead Door Closer in Matt Black is a power-adjustable, Certifire-approved closer combining the refined radius body profile of the 93 Series with a flat matt black finish - the specification choice for contemporary black ironmongery schemes where both the shape and surface texture of the closer are part of a deliberate design decision.

The radius body reduces visual bulk compared to a standard square-body closer, sitting more elegantly on the door face. The matt black finish, unlike polished black or silver, absorbs light rather than reflecting it - making the closer recede visually rather than draw attention. This combination suits modern commercial fit-outs, dark-painted doors, anthracite frames, and interior design schemes where matte surfaces and black hardware are used consistently throughout. Certifire certified to CF6145, UKCA and CE approved, and fire rated to BSEN1634 for FD30, FD60, FD90, and FD120 timber fire doors. Backcheck is included as standard. Universal application across Figures 1, 61, and 66.

Key Features:

• Radius body profile - softer, more refined appearance than standard square-body closers
• Power adjustable Size 2-4 - suitable for doors up to 80kg and 1100mm wide
• Backcheck function - hydraulic resistance protects door and frame on wide opening
• Adjustable closing speed, latching speed, and backcheck - independently configurable
• Certifire approved - CF6145
• UKCA and CE approved
• Fire rated to BSEN1634 - FD30, FD60, FD90, FD120 (Timber)
• Universal application - Figures 1, 61, and 66
• Matt Black finish - matte surface for contemporary black ironmongery schemes
• Screw-fix overhead installation

Technical Specifications:

• SKU: DF2013C
• Series: 93 Series
• Body Style: Radius
• Power Size: Adjustable Size 2-4
• Maximum Door Weight: 80kg
• Maximum Door Width: 1100mm
• Finish: Matt Black
• Colour: Black
• Material: Aluminium / Steel
• Certification: Certifire CF6145, UKCA, CE Approved
• Fire Rating: BSEN1634 FD30, FD60, FD90, FD120 (Timber)
• Functions: Adjustable closing speed, latching speed, backcheck
• Application: Figures 1, 61, 66
• Fixing: Screw-fix overhead mount

Use the supplied template to mark fixing positions on the door face and frame. Fix the closer body to the door face and attach the arm to the frame bracket. Adjust the power size, closing speed, latching speed, and backcheck valves independently with a hex key. Full fitting instructions and fixings are supplied.
