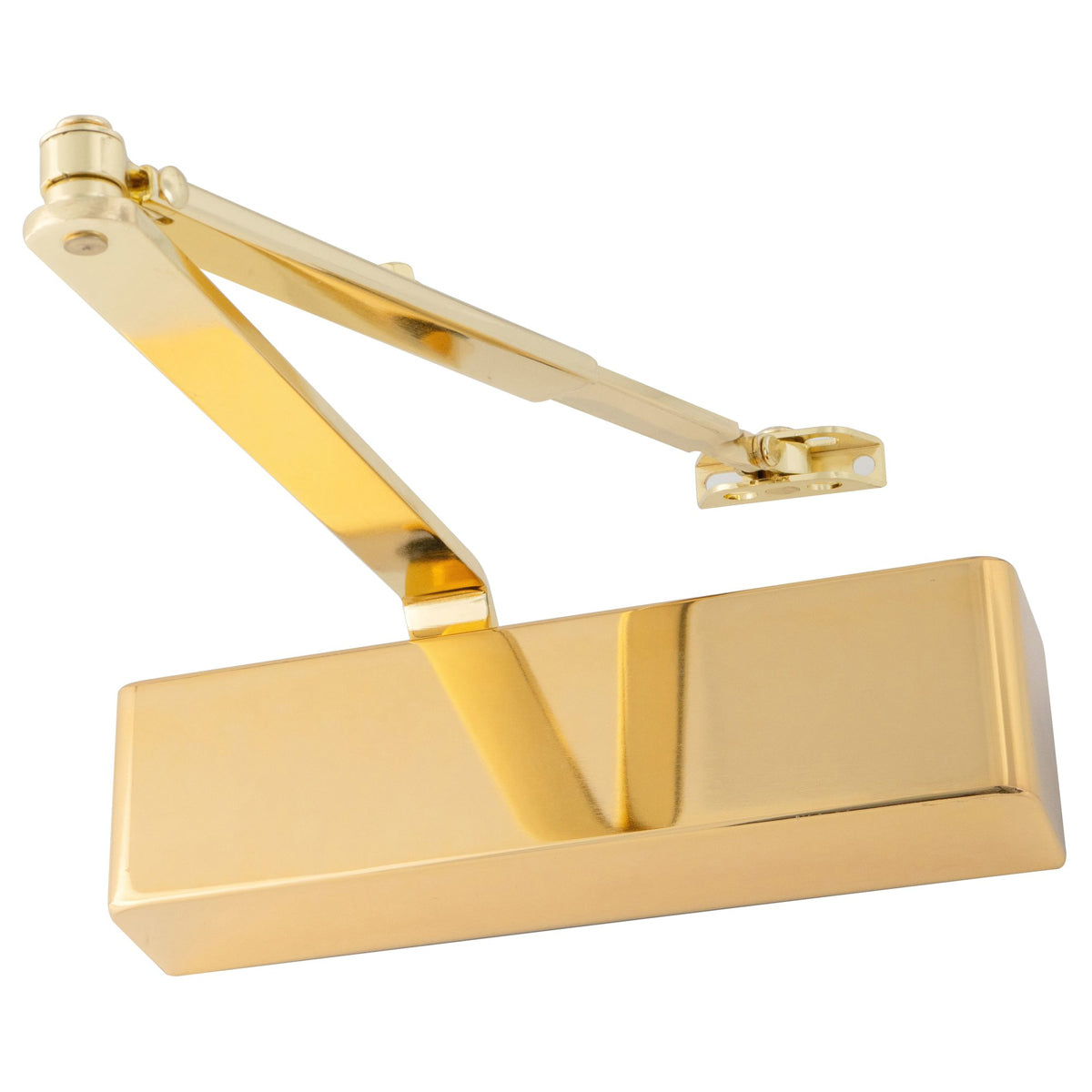

The Eclipse 93 Series Radius Overhead Door Closer in Polished Brass is a power-adjustable, Certifire-approved closer distinguished by its radius-edged body profile - a softer, more refined silhouette than the standard square-body 93 Series. For installations where the closer body is visible and the appearance of the unit matters as much as its performance, the radius body reduces visual bulk and sits more elegantly on the door face.

The polished brass finish makes this closer the specification choice for period properties, traditional interiors, heritage buildings, and any setting where a warm, classic brass hardware scheme runs throughout. Certifire certified to CF6145, UKCA and CE approved, and fire rated to BSEN1634 for FD30, FD60, FD90, and FD120 timber fire doors, this closer meets the compliance requirements of fire door installations without compromising on finish. Backcheck is included as standard, with independently adjustable closing speed, latching speed, and backcheck valves for precise on-site configuration. Universal application across Figures 1, 61, and 66.

Key Features:

• Radius body profile - softer, more refined appearance than standard square-body closers
• Power adjustable Size 2-4 - suitable for doors up to 80kg and 1100mm wide
• Backcheck function - hydraulic resistance protects door and frame on wide opening
• Adjustable closing speed, latching speed, and backcheck - independently configurable
• Certifire approved - CF6145
• UKCA and CE approved
• Fire rated to BSEN1634 - FD30, FD60, FD90, FD120 (Timber)
• Universal application - Figures 1, 61, and 66
• Polished Brass finish - warm, classic tone for traditional and period ironmongery schemes
• Screw-fix overhead installation

Technical Specifications:

• SKU: DF2013E
• Series: 93 Series
• Body Style: Radius
• Power Size: Adjustable Size 2-4
• Maximum Door Weight: 80kg
• Maximum Door Width: 1100mm
• Finish: Polished Brass
• Material: Aluminium / Steel
• Certification: Certifire CF6145, UKCA, CE Approved
• Fire Rating: BSEN1634 FD30, FD60, FD90, FD120 (Timber)
• Functions: Adjustable closing speed, latching speed, backcheck
• Application: Figures 1, 61, 66
• Fixing: Screw-fix overhead mount

Use the supplied template to mark fixing positions on the door face and frame. Fix the closer body to the door face and attach the arm to the frame bracket. Adjust the power size, closing speed, latching speed, and backcheck valves independently with a hex key. Full fitting instructions and fixings are supplied.
