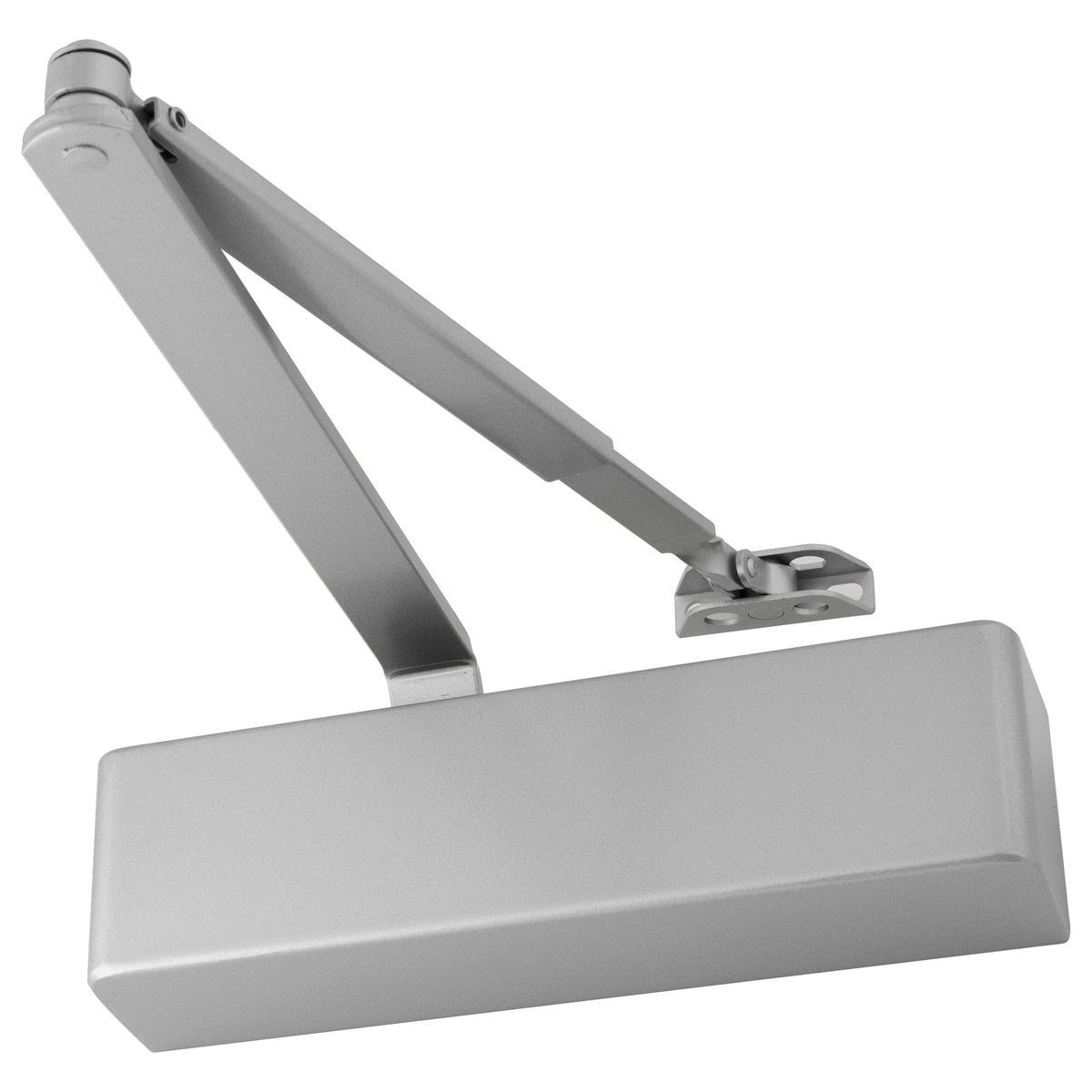

The Eclipse 93 Series Radius Overhead Door Closer in Silver is a power-adjustable, Certifire-approved closer with a radius-edged body that presents a softer, more considered profile on the door face than a standard square-body closer. The radius body reduces visual bulk and lends the unit a more refined appearance - a detail that matters in commercial settings where the hardware specification is visible and the standard of finish reflects on the building.

The silver finish suits the broadest range of commercial and public building environments - offices, schools, healthcare facilities, hotels, and communal spaces - where a neutral, unobtrusive closer is required that works alongside aluminium, stainless, and silver-toned door furniture. Certifire certified to CF6145, UKCA and CE approved, and fire rated to BSEN1634 for FD30, FD60, FD90, and FD120 timber fire doors. Backcheck is included as standard, with independently adjustable closing speed, latching speed, and backcheck valves. Universal application across Figures 1, 61, and 66.

Key Features:

• Radius body profile - softer, more refined appearance than standard square-body closers
• Power adjustable Size 2-4 - suitable for doors up to 80kg and 1100mm wide
• Backcheck function - hydraulic resistance protects door and frame on wide opening
• Adjustable closing speed, latching speed, and backcheck - independently configurable
• Certifire approved - CF6145
• UKCA and CE approved
• Fire rated to BSEN1634 - FD30, FD60, FD90, FD120 (Timber)
• Universal application - Figures 1, 61, and 66
• Silver finish - neutral tone for commercial and public building environments
• Screw-fix overhead installation

Technical Specifications:

• SKU: DF2013D
• Series: 93 Series
• Body Style: Radius
• Power Size: Adjustable Size 2-4
• Maximum Door Weight: 80kg
• Maximum Door Width: 1100mm
• Finish: Silver
• Material: Aluminium / Steel
• Certification: Certifire CF6145, UKCA, CE Approved
• Fire Rating: BSEN1634 FD30, FD60, FD90, FD120 (Timber)
• Functions: Adjustable closing speed, latching speed, backcheck
• Application: Figures 1, 61, 66
• Fixing: Screw-fix overhead mount

Use the supplied template to mark fixing positions on the door face and frame. Fix the closer body to the door face and attach the arm to the frame bracket. Adjust the power size, closing speed, latching speed, and backcheck valves independently with a hex key. Full fitting instructions and fixings are supplied.
