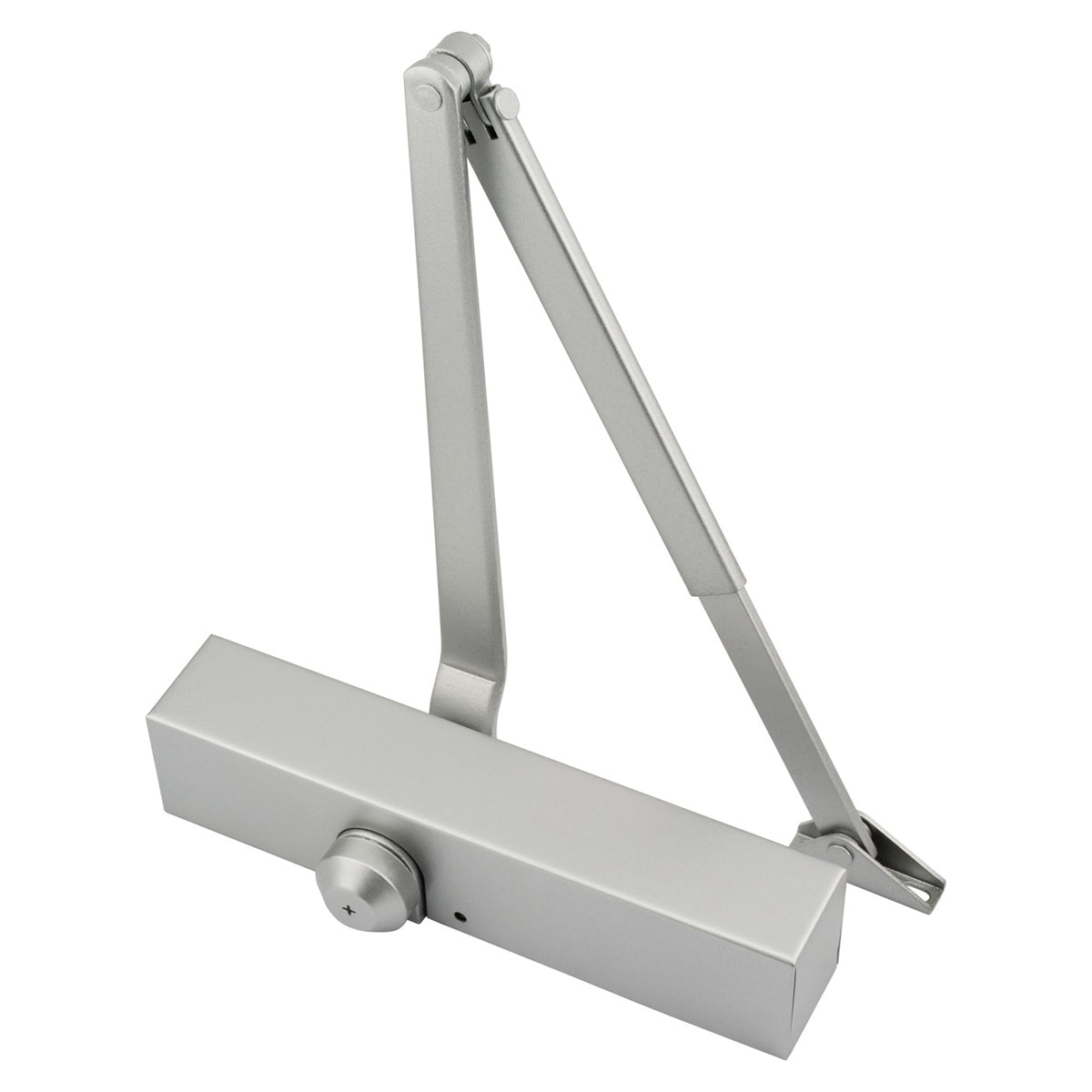

The Eclipse 93 Series Square Overhead Door Closer in Silver is a power-adjustable closer with a clean, angular square body profile - the more structured, architectural counterpart to the rounded radius body version. Where the radius body softens the appearance of the closer on the door face, the square body presents a precise, defined silhouette that suits contemporary commercial environments where strong, geometric lines run through the interior design.

Covering doors up to 80kg and widths up to 1100mm with a power adjustable Size 2 to 4 range, this closer is UKCA and CE approved and fire rated to BSEN1634 for FD30, FD60, FD90, and FD120 timber fire doors. Backcheck is included as standard, with independently adjustable closing speed, latching speed, and backcheck valves for precise on-site configuration. The silver finish is neutral and widely compatible, suiting aluminium, stainless, and silver-toned door furniture across offices, education, healthcare, and public building environments. Universal application across Figures 1, 61, and 66.

Key Features:

• Square body profile - clean, angular silhouette for geometric interior design schemes
• Power adjustable Size 2-4 - suitable for doors up to 80kg and 1100mm wide
• Backcheck function - hydraulic resistance protects door and frame on wide opening
• Adjustable closing speed, latching speed, and backcheck - independently configurable
• UKCA and CE approved
• Fire rated to BSEN1634 - FD30, FD60, FD90, FD120 (Timber)
• Universal application - Figures 1, 61, and 66
• Silver finish - neutral tone for commercial and public building environments
• Screw-fix overhead installation

Technical Specifications:

• SKU: DF2013F
• Series: 93 Series
• Body Style: Square
• Power Size: Adjustable Size 2-4
• Maximum Door Weight: 80kg
• Maximum Door Width: 1100mm
• Finish: Silver
• Material: Aluminium / Steel
• Certification: UKCA, CE Approved
• Fire Rating: BSEN1634 FD30, FD60, FD90, FD120 (Timber)
• Functions: Adjustable closing speed, latching speed, backcheck
• Application: Figures 1, 61, 66
• Fixing: Screw-fix overhead mount

Use the supplied template to mark fixing positions on the door face and frame. Fix the closer body to the door face and attach the arm to the frame bracket. Adjust the power size, closing speed, latching speed, and backcheck valves independently with a hex key. Full fitting instructions and fixings are supplied.
