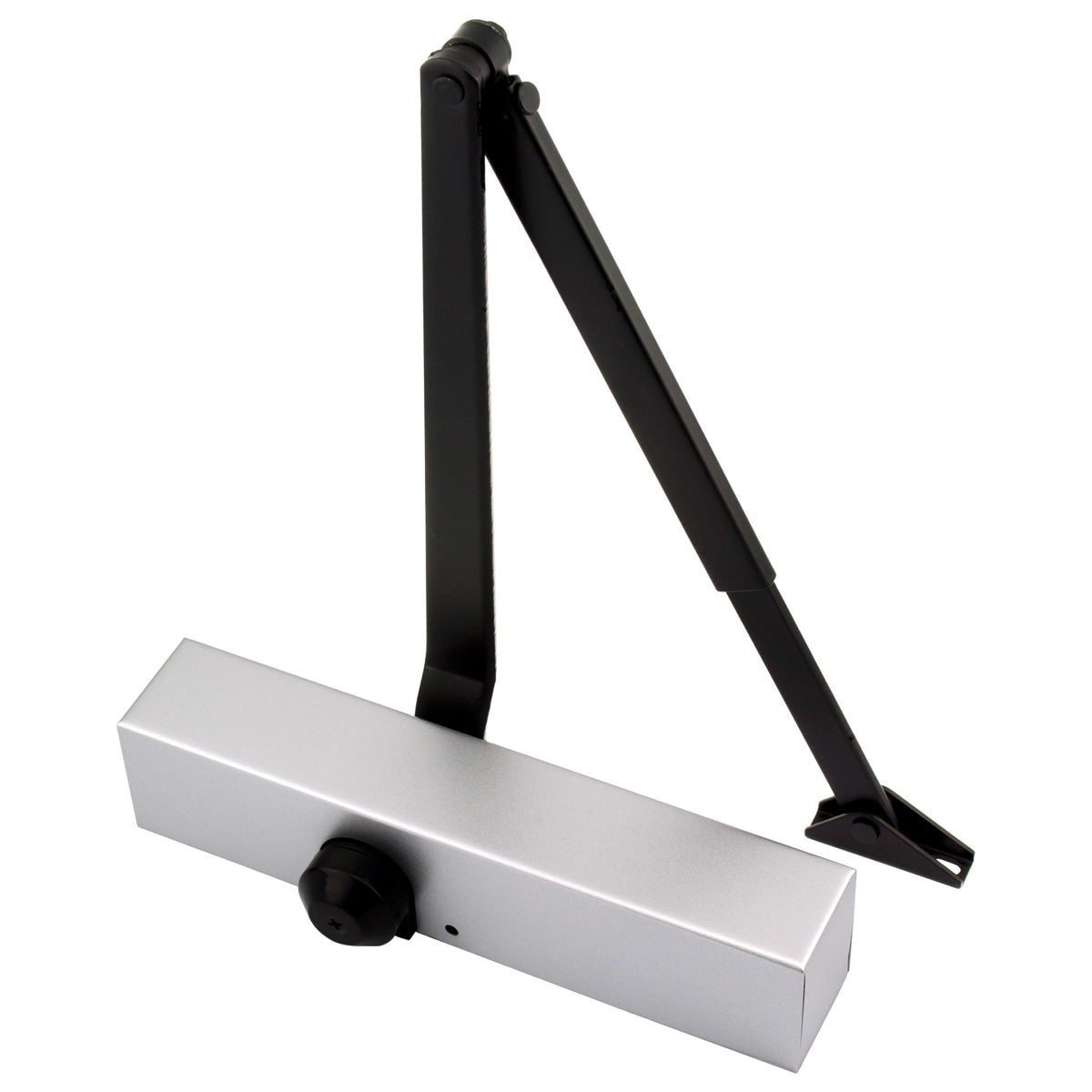

The Eclipse 93 Series Square Overhead Door Closer in Silver and Black is a power-adjustable closer with a two-tone finish that combines a silver body with a black arm - offering a transitional hardware option for doors and frames where silver and black elements coexist within the same ironmongery scheme. Rather than committing entirely to one finish, this closer bridges both, making it a practical specification choice where a strict single-finish match is not possible or required.

The square body profile presents a clean, angular silhouette on the door face, and the contrast between the silver body and black arm adds a visual detail not found in single-finish closers. UKCA and CE approved, and fire rated to BSEN1634 for FD30, FD60, FD90, and FD120 timber fire doors, this closer covers doors up to 80kg and widths up to 1100mm. Backcheck is included as standard, with independently adjustable closing speed, latching speed, and backcheck valves. Universal application across Figures 1, 61, and 66.

Key Features:

• Two-tone Silver and Black finish - silver body, black arm for mixed hardware schemes
• Square body profile - clean, angular silhouette on the door face
• Power adjustable Size 2-4 - suitable for doors up to 80kg and 1100mm wide
• Backcheck function - hydraulic resistance protects door and frame on wide opening
• Adjustable closing speed, latching speed, and backcheck - independently configurable
• UKCA and CE approved
• Fire rated to BSEN1634 - FD30, FD60, FD90, FD120 (Timber)
• Universal application - Figures 1, 61, and 66
• Screw-fix overhead installation

Technical Specifications:

• SKU: DF2013G
• Series: 93 Series
• Body Style: Square
• Power Size: Adjustable Size 2-4
• Maximum Door Weight: 80kg
• Maximum Door Width: 1100mm
• Finish: Silver Body / Black Arm
• Colour: Silver and Black
• Material: Aluminium / Steel
• Certification: UKCA, CE Approved
• Fire Rating: BSEN1634 FD30, FD60, FD90, FD120 (Timber)
• Functions: Adjustable closing speed, latching speed, backcheck
• Application: Figures 1, 61, 66
• Fixing: Screw-fix overhead mount

Use the supplied template to mark fixing positions on the door face and frame. Fix the closer body to the door face and attach the arm to the frame bracket. Adjust the power size, closing speed, latching speed, and backcheck valves independently with a hex key. Full fitting instructions and fixings are supplied.
