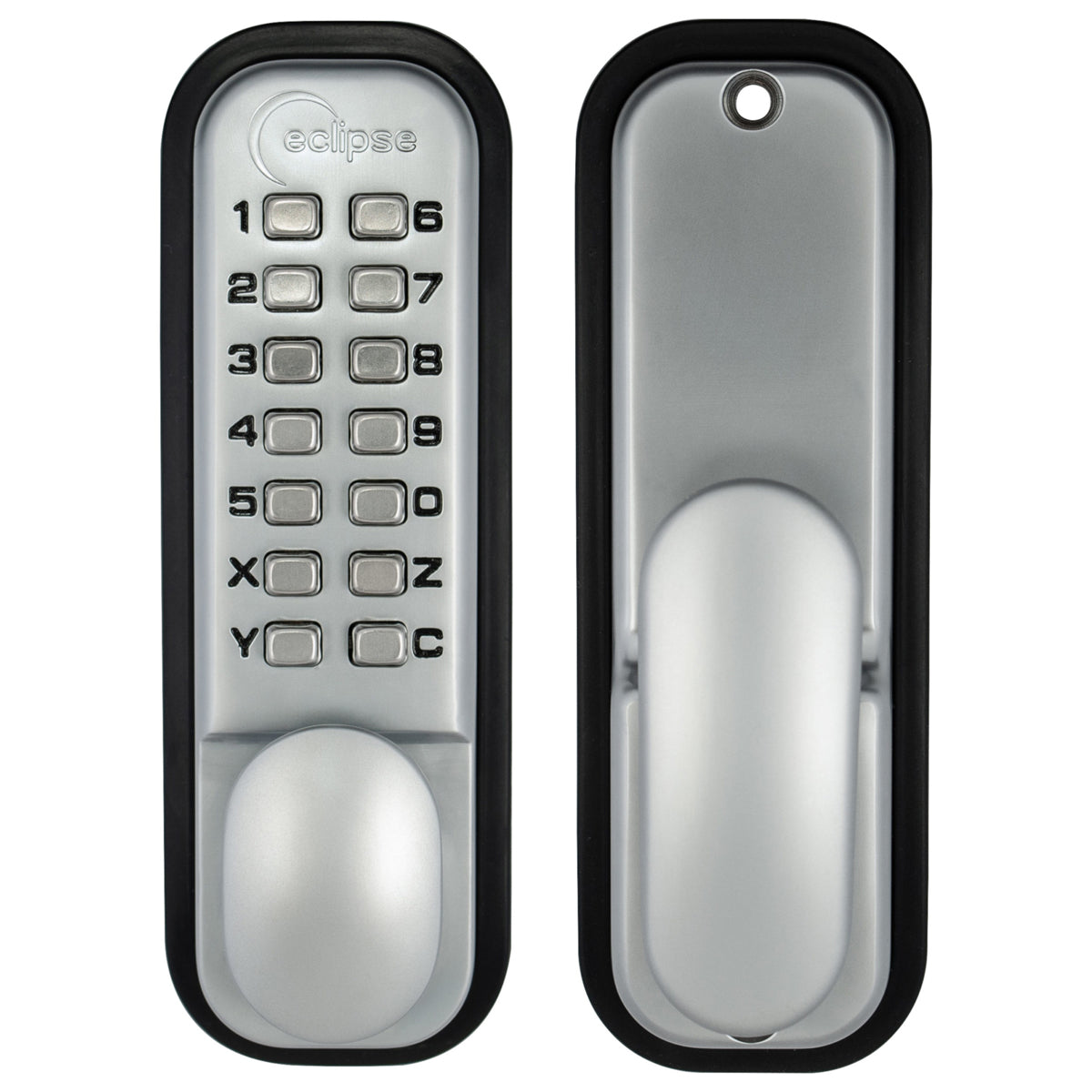

The Eclipse ED15 Digital Lock in Satin Chrome Plated finish is a mechanical push-button digital lock offering an exceptional 8,000+ code combinations - significantly more than many comparable digital locks - providing greater security flexibility for shared access, rental, or high-turnover access environments. The non-handed design installs without adjustment on both left and right hand doors, and the holdback facility allows the door to be held open when required.

Compatible with both 60mm and 70mm latches, the ED15 is a versatile specification choice across a wide range of door preparations. When fitted with Eclipse Intumescent packs (Code 99758), the lock is BSEN1634 rated to FD60, extending suitability to 60-minute fire door applications. Supplied complete with fixings, this lock suits domestic, light commercial, offices, and managed access applications where a reliable, code-operated lock with a substantial number of code combinations is required. The satin chrome finish coordinates with contemporary chrome and stainless ironmongery.

Key Features:

• Over 8,000 code combinations - significantly more than standard digital locks
• Non-handed - fits left and right hand doors without adjustment
• Holdback facility - door can be held open when required
• Accepts 60mm and 70mm latches
• BSEN1634 FD60 fire rated when fitted with Eclipse Intumescent packs (Code 99758)
• Mechanical push-button operation - no batteries or power required
• Supplied with fixings
• Satin Chrome Plated finish - suits contemporary chrome and stainless ironmongery

Technical Specifications:

• SKU: DF288G3
• Model: ED15
• Dimensions: 142 x 41 x 70mm
• Finish: Satin Chrome
• Material: Zinc Alloy / Steel
• Code Combinations: Over 8,000
• Handing: Non-handed
• Latch Compatibility: 60mm and 70mm
• Holdback: Yes
• Fire Rating: BSEN1634 FD60 (with Eclipse Intumescent packs, Code 99758)
• Supplied With: Fixings
• Application: Domestic, light commercial, offices, managed access
• Fixing: Mortice fit, screw-fix

Prepare the door with a mortice latch cut-out compatible with a 60mm or 70mm latch. Fix the lock body into the door edge and attach the front plate flush to the door face. The non-handed design requires no handing adjustment. Select the desired access code following the instructions supplied. Full fitting instructions and fixings are included.
