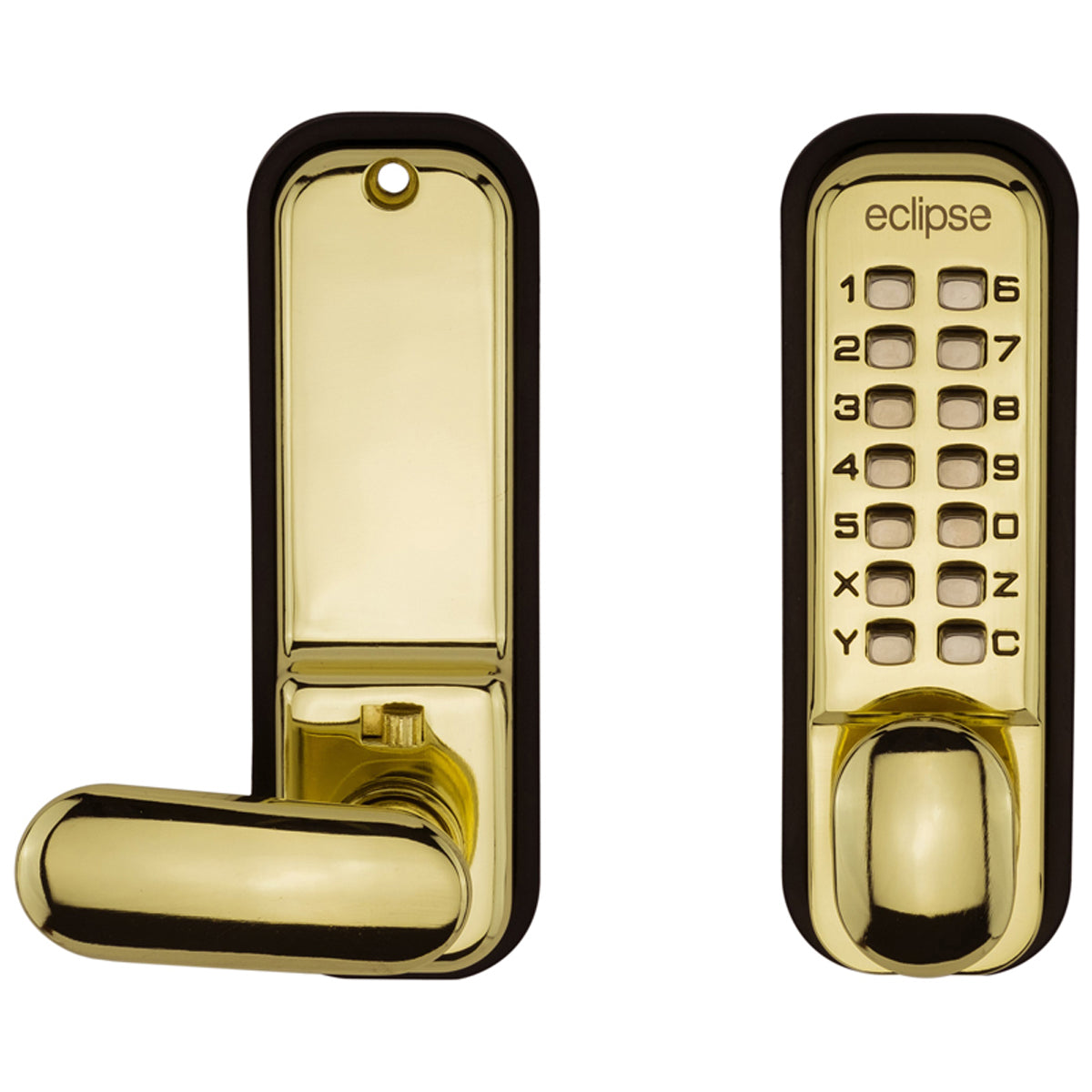

The Eclipse ED20 Easy Code Change Digital Lock in Polished Brass is a mechanical digital door lock that combines keyless push-button access with a classic, warm brass finish - the natural specification choice for period properties, traditional interiors, and heritage buildings where a polished brass hardware scheme is maintained throughout. Over 800 code combinations and a simple code change procedure ensure security can be updated quickly without specialist tools or locksmith callouts.

Reversible handing means a single product fits both left and right hand doors, and the 142 x 41 x 70mm body dimensions are compatible with standard mortice latch preparations. When fitted with Eclipse Intumescent packs (Code 99758), the lock is BSEN1634 rated to FD60, making it suitable for 60-minute fire door applications without sacrificing the polished brass aesthetic. A 5-year mechanical guarantee supports long-term installation confidence across residential, hospitality, and light commercial projects. Available in five finishes including Satin Chrome, Polished Brass, Matt Black, Antique Bronze, and Satin Brass.

Key Features:

• Easy code change - no locksmith or specialist tools required
• Over 800 different code combinations
• Reversible handing - fits left and right hand doors
• BSEN1634 FD60 fire rated when fitted with Eclipse Intumescent packs (Code 99758)
• 5 year mechanical guarantee
• Polished Brass finish - warm, classic tone for period and traditional ironmongery schemes
• Suitable for residential, hospitality, heritage buildings, and light commercial applications
• Available in 5 finishes - Satin Chrome, Polished Brass, Matt Black, Antique Bronze, Satin Brass

Technical Specifications:

• SKU: DF288G2
• Model: ED20
• Dimensions: 142 x 41 x 70mm
• Finish: Polished Brass
• Material: Zinc Alloy / Steel
• Code Combinations: Over 800
• Handing: Reversible
• Fire Rating: BSEN1634 FD60 (with Eclipse Intumescent packs, Code 99758)
• Guarantee: 5 year mechanical
• Application: Residential, hospitality, heritage buildings, light commercial
• Fixing: Mortice fit, screw-fix

Prepare the door with a standard mortice latch cut-out to suit the 142 x 41 x 70mm body. Fix the lock body into the door edge and attach the front plate flush to the door face. Select the desired access code and confirm handing before final fitting. Full fitting instructions are supplied. To change the code, follow the simple re-coding procedure detailed in the instructions - no tools required.
