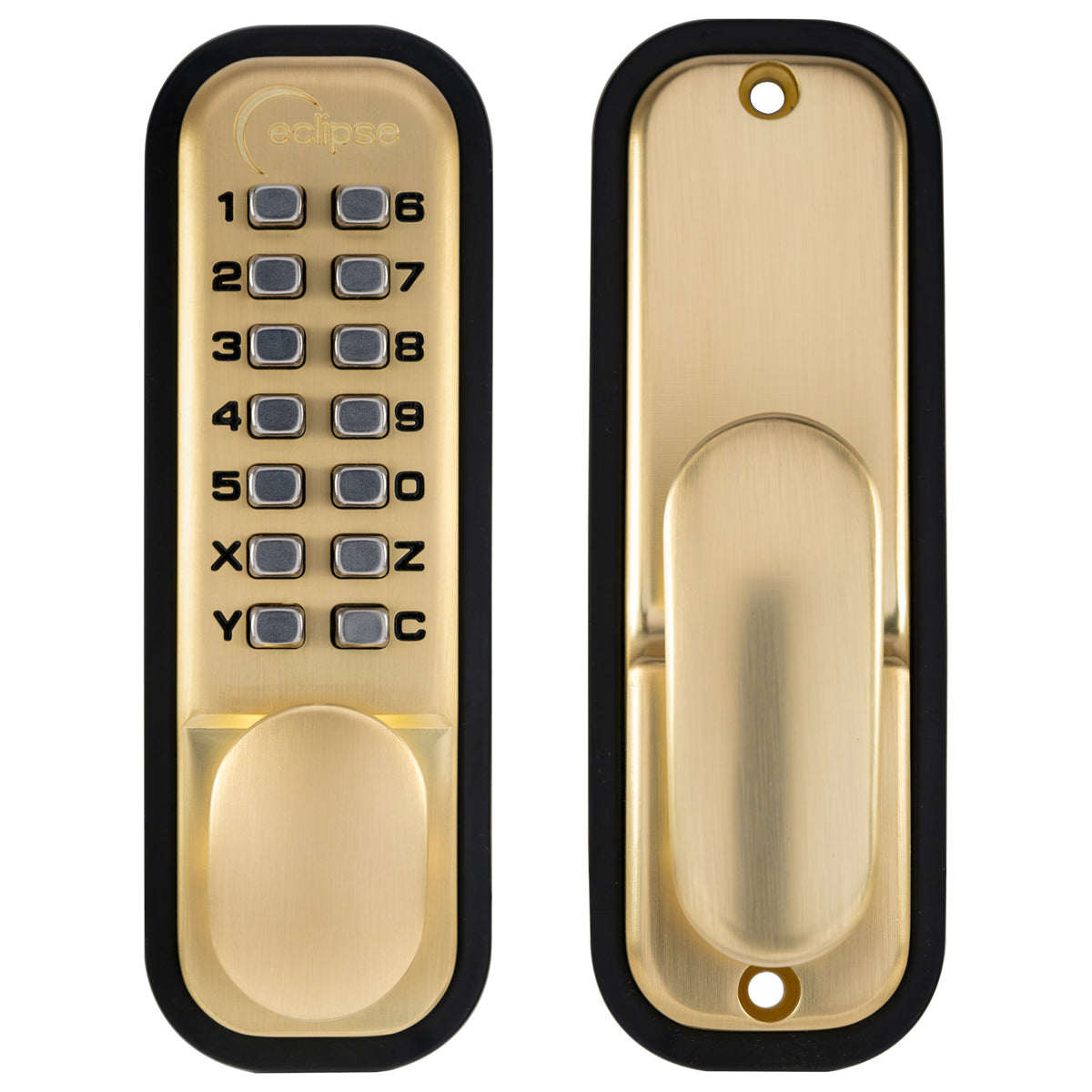

The Eclipse ED20 Easy Code Change Digital Lock in Satin Brass is a mechanical digital door lock offering keyless push-button access in a warm, understated brass finish. Where polished brass presents a high-gloss, reflective surface, satin brass delivers the same warm golden tone with a brushed, lower-sheen finish - the preferred choice for interiors where a softer, more contemporary interpretation of traditional brass hardware is required.

With over 800 code combinations and a simple code change facility requiring no specialist tools, the ED20 SBR suits residential, boutique hospitality, heritage refurbishment, and light commercial applications where access security needs to be maintained and updated without locksmith callouts. Reversible handing fits both left and right hand doors from a single product, and the 142 x 41 x 70mm body is compatible with standard mortice latch preparations. When fitted with Eclipse Intumescent packs (Code 99758), the lock is BSEN1634 rated to FD60 for 60-minute fire door applications. A 5-year mechanical guarantee supports long-term installation confidence. Available in five finishes including Satin Chrome, Polished Brass, Matt Black, Antique Bronze, and Satin Brass.

Key Features:

• Easy code change - no locksmith or specialist tools required
• Over 800 different code combinations
• Reversible handing - fits left and right hand doors
• BSEN1634 FD60 fire rated when fitted with Eclipse Intumescent packs (Code 99758)
• 5 year mechanical guarantee
• Satin Brass finish - warm, brushed tone for contemporary brass ironmongery schemes
• Suitable for residential, boutique hospitality, heritage refurbishment, and light commercial
• Available in 5 finishes - Satin Chrome, Polished Brass, Matt Black, Antique Bronze, Satin Brass

Technical Specifications:

• SKU: DF288G7
• Model: ED20
• Dimensions: 142 x 41 x 70mm
• Finish: Satin Brass
• Material: Zinc Alloy / Steel
• Code Combinations: Over 800
• Handing: Reversible
• Fire Rating: BSEN1634 FD60 (with Eclipse Intumescent packs, Code 99758)
• Guarantee: 5 year mechanical
• Application: Residential, boutique hospitality, heritage refurbishment, light commercial
• Fixing: Mortice fit, screw-fix

Prepare the door with a standard mortice latch cut-out to suit the 142 x 41 x 70mm body. Fix the lock body into the door edge and attach the front plate flush to the door face. Select the desired access code and confirm handing before final fitting. Full fitting instructions are supplied. To change the code, follow the simple re-coding procedure detailed in the instructions - no tools required.
