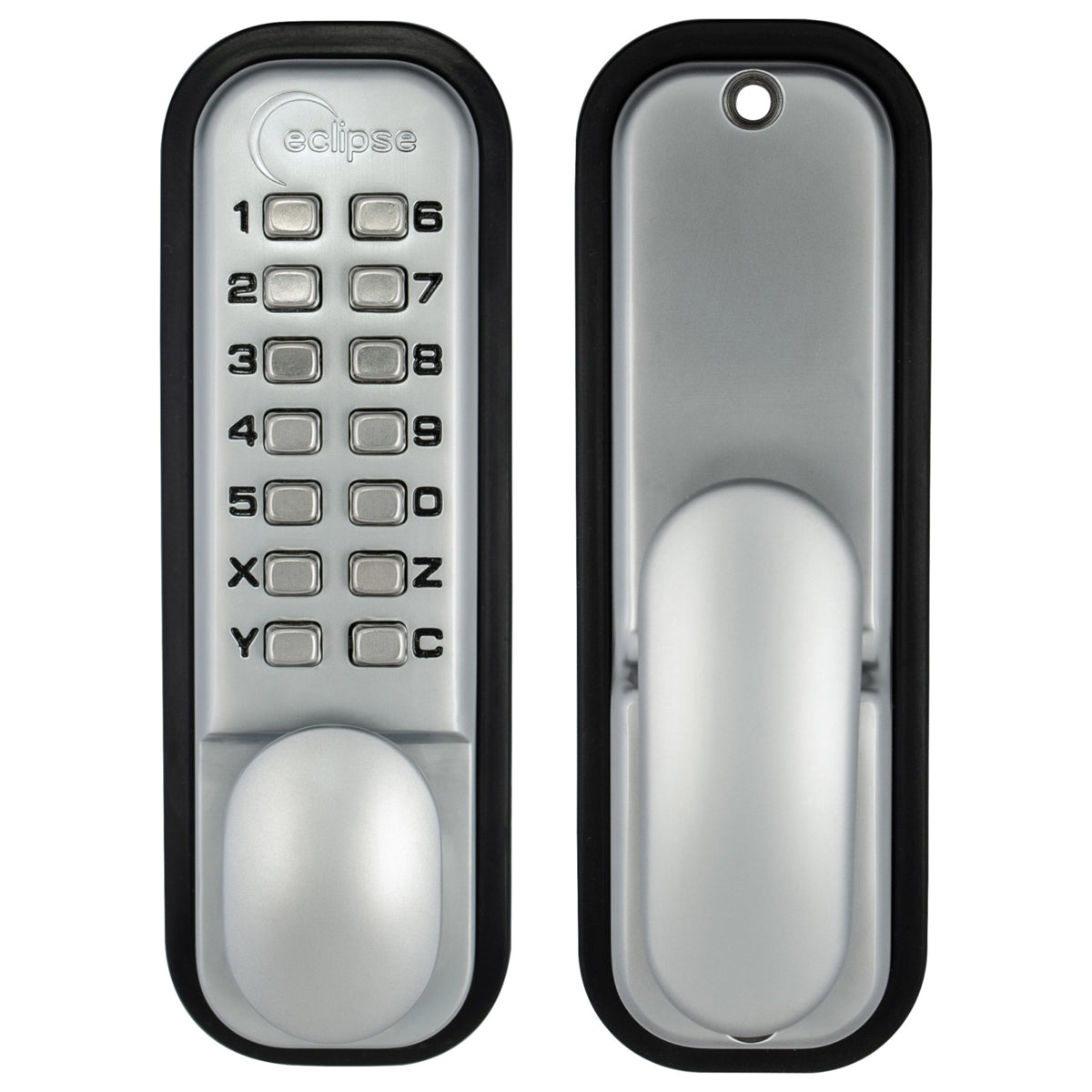

The Eclipse ED20 Easy Code Change Digital Lock in Satin Chrome Plated finish is a mechanical digital door lock offering keyless access through a simple push-button code entry mechanism. With over 800 different code combinations and an easy code change facility, this lock suits domestic, light commercial, and shared access applications where the access code needs to be changed regularly or at short notice - without the need for a locksmith or specialist tools.

Reversible handing means the ED20 fits both left and right hand doors without requiring separate products, and the 142 x 41 x 70mm body dimensions make it compatible with standard mortice latch preparations. When fitted with Eclipse Intumescent packs (Code 99758), the lock is BSEN1634 rated to FD60, extending its suitability to 60-minute fire door applications. A 5-year mechanical guarantee supports long-term installation confidence. Available in five finishes including Satin Chrome, Polished Brass, Matt Black, Antique Bronze, and Satin Brass.

Key Features:

• Easy code change - no locksmith or specialist tools required
• Over 800 different code combinations
• Reversible handing - fits left and right hand doors
• BSEN1634 FD60 fire rated when fitted with Eclipse Intumescent packs (Code 99758)
• 5 year mechanical guarantee
• Satin Chrome Plated finish - neutral, contemporary tone for chrome ironmongery schemes
• Suitable for domestic, light commercial, and shared access applications
• Available in 5 finishes - Satin Chrome, Polished Brass, Matt Black, Antique Bronze, Satin Brass

Technical Specifications:

• SKU: DF288G1
• Model: ED20
• Dimensions: 142 x 41 x 70mm
• Finish: Satin Chrome Plated
• Material: Zinc Alloy / Steel
• Code Combinations: Over 800
• Handing: Reversible
• Fire Rating: BSEN1634 FD60 (with Eclipse Intumescent packs, Code 99758)
• Guarantee: 5 year mechanical
• Application: Domestic, light commercial, shared access
• Fixing: Mortice fit, screw-fix

Prepare the door with a standard mortice latch cut-out to suit the 142 x 41 x 70mm body. Fix the lock body into the door edge and attach the front plate flush to the door face. Select the desired access code and confirm handing before final fitting. Full fitting instructions are supplied. To change the code, follow the simple re-coding procedure detailed in the instructions - no tools required.
