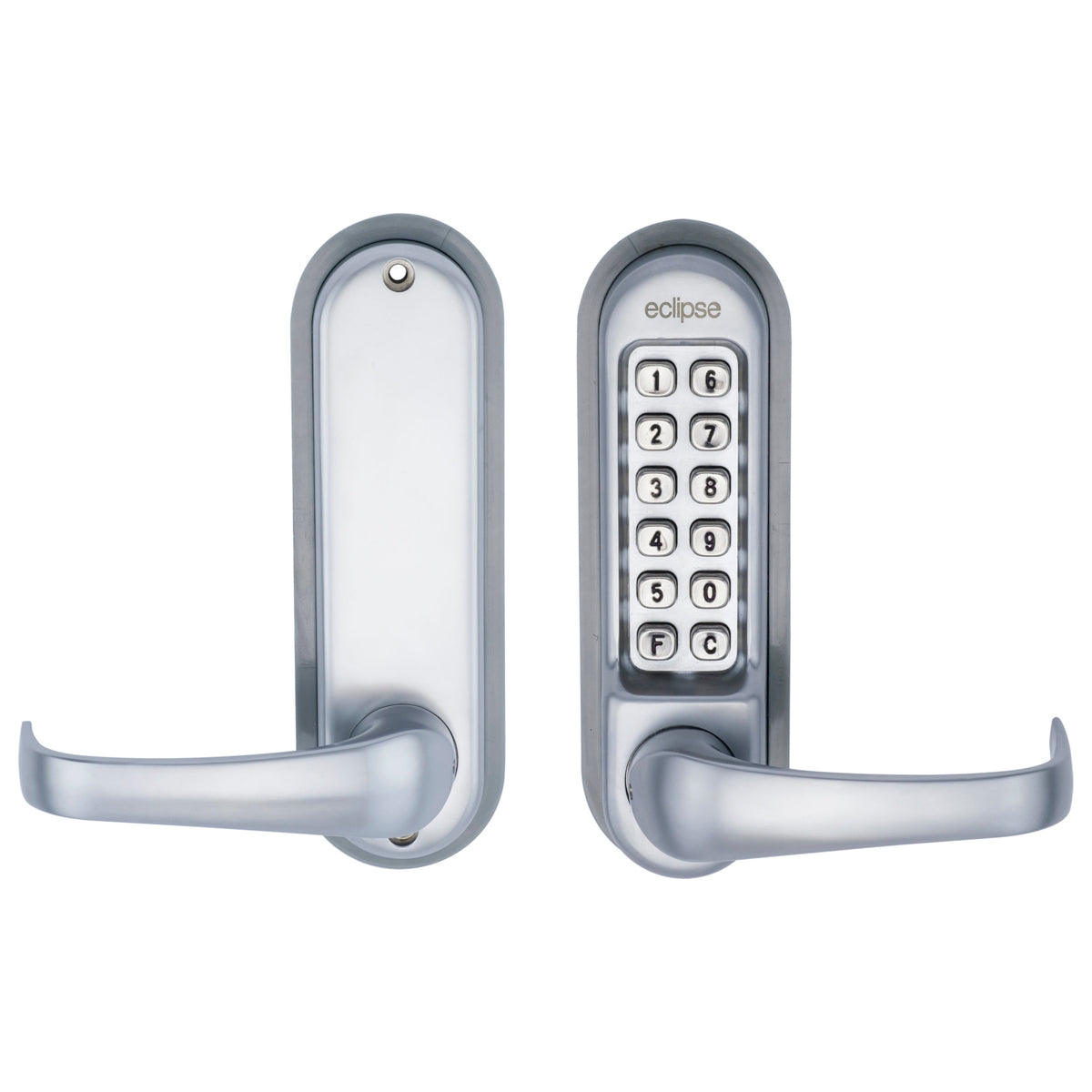

The Eclipse ED50 Heavy Duty Digital Lock with Lever Handle in Satin Chrome Plated finish is a robust, lever-operated mechanical digital lock designed for demanding commercial, industrial, and high-traffic applications where a push-button pad lock would be under-specified. The integrated lever handle replaces the need for a separate handle set, presenting a single, unified unit on the door face that operates both the digital lock and door handle function together.

The anti-snap clutch function is a key security feature - the lever clutch disengages under excessive force, preventing the handle from being snapped or forced to defeat the lock mechanism, a common attack method on lever-handle locks. With over 1,500 code combinations, a reversible safety lever, non-handed design, and passage free function allowing the door to be held open, the ED50 is engineered for environments where security, durability, and ease of daily use must all be satisfied simultaneously. Supplied complete with fixings in a satin chrome finish that suits contemporary chrome and stainless ironmongery across commercial offices, educational buildings, leisure facilities, and managed access locations.

Key Features:

• Heavy duty lever clutch digital lock - integrated lever handle and lock in one unit
• Anti-snap clutch function - lever disengages under force, resisting handle-snap attacks
• Over 1,500 code combinations
• Reversible safety lever - suits left and right hand installations
• Non-handed - no handing adjustment required
• Passage free function - door can be held open when required
• Satin Chrome Plated finish - suits contemporary chrome and stainless ironmongery
• Supplied with fixings
• Suitable for commercial, industrial, educational, and high-traffic applications

Technical Specifications:

• SKU: DF288J
• Model: ED50
• Dimensions: 159 x 48 x 107mm
• Finish: Satin Chrome Plated
• Material: Zinc Alloy / Steel
• Code Combinations: Over 1,500
• Lever: Reversible safety lever
• Handing: Non-handed
• Security: Anti-snap clutch function
• Passage Free: Yes
• Supplied With: Fixings
• Application: Commercial, industrial, educational, high-traffic managed access
• Fixing: Mortice fit, screw-fix

Prepare the door with a mortice cut-out to suit the 159 x 48 x 107mm body. Fix the lock body into the door edge and attach the front plate flush to the door face. The non-handed design and reversible safety lever require no handing adjustment. Select the desired access code following the instructions supplied. Full fitting instructions and fixings are included.
