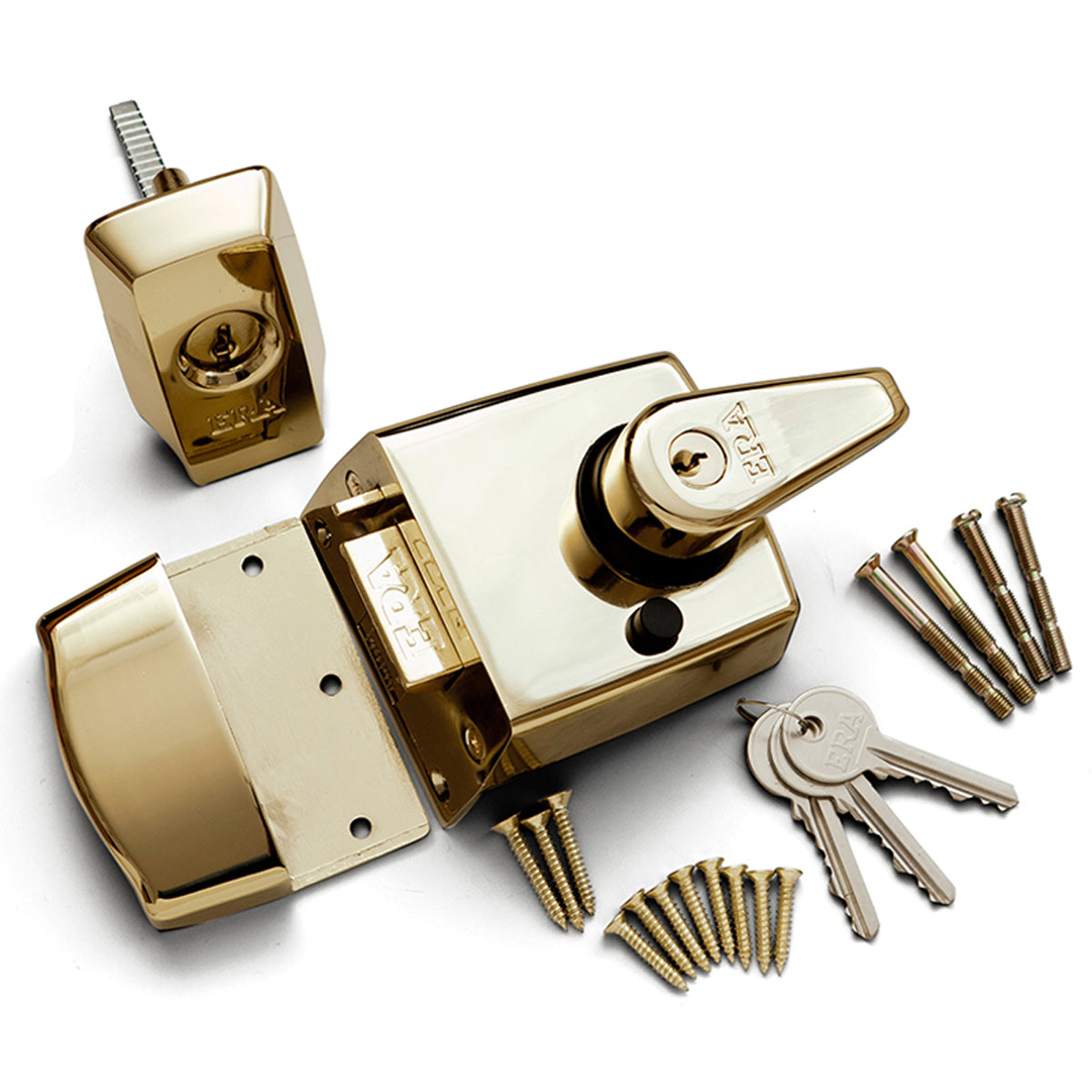

ERA British Standard Nightlatch — 60mm Backset, Passage Function, Brass

The ERA British Standard Nightlatch Passage Function (DF1930BP) is a high-security door lock with a classic and robust design. Available in a 60mm backset, it is an ideal product to replace most existing front door locks. The passage function allows the latch to be held in the withdrawn position for free passage — ideal for high-traffic doorways.

The ergonomic internal locking handle can be deadlocked by an anti-clockwise turn of the key from the inside, offering additional security against forced entry. The main bolt is automatically deadlocked into the striker when the door is closed, preventing it from being retracted by a credit card. Designed with a 20mm bolt throw for even greater security and strength.

Face-fitted and non-handed, it suits both left and right-hand inward opening timber doors. The striker features a 3-hole fixing for added strength. The lock conforms to BS 3621:2007 (BS EN 12209) and meets the requirements of insurance companies and the Police. Supplied with 3 cut keys; can be keyed to pass or master keyed. All finishes meet BS EN 1670 Grade 3 (96 hours) corrosion resistance.

Key Features & Benefits

• BS 3621:2007 certified — insurance and Police approved
• Passage function — latch held withdrawn for free passage
• Automatic deadlocking bolt — cannot be retracted by credit card
• 20mm bolt throw for greater security and strength
• Deadlockable from inside via key — ideal for glass panelled doors
• High-security integral cylinder pull — drill resistant
• Over 30,000 key variations
• 60mm backset — replaces most existing front door locks
• Brass body and cylinder
• Non-handed — suits left and right-hand doors
• 3-hole striker fixing for additional strength
• 3 cut keys supplied; keyed to pass or master keyed available
• BS EN 1670 Grade 3 corrosion resistance (96 hours)

Technical Specification

• SKU: DF1930BP
• Type: British Standard Nightlatch, Passage Function
• Backset: 60mm

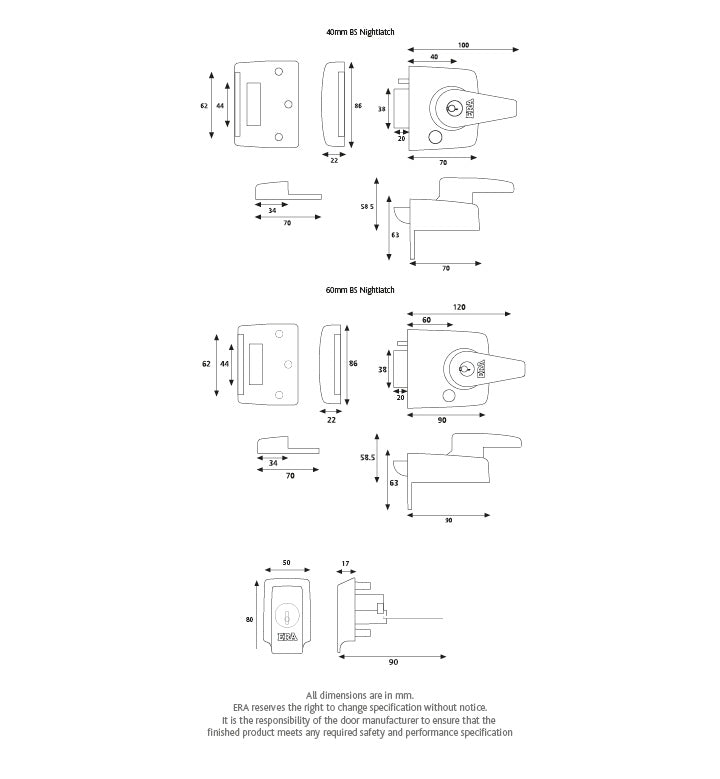

• Case dimensions: 120 x 86 x 58.5mm
• Bolt throw: 20mm
• Finish: Brass body / Brass cylinder
• Standard: BS 3621:2007 (BS EN 12209)
• Handed: Non-handed (left & right)
• Door type: Inward opening timber doors
