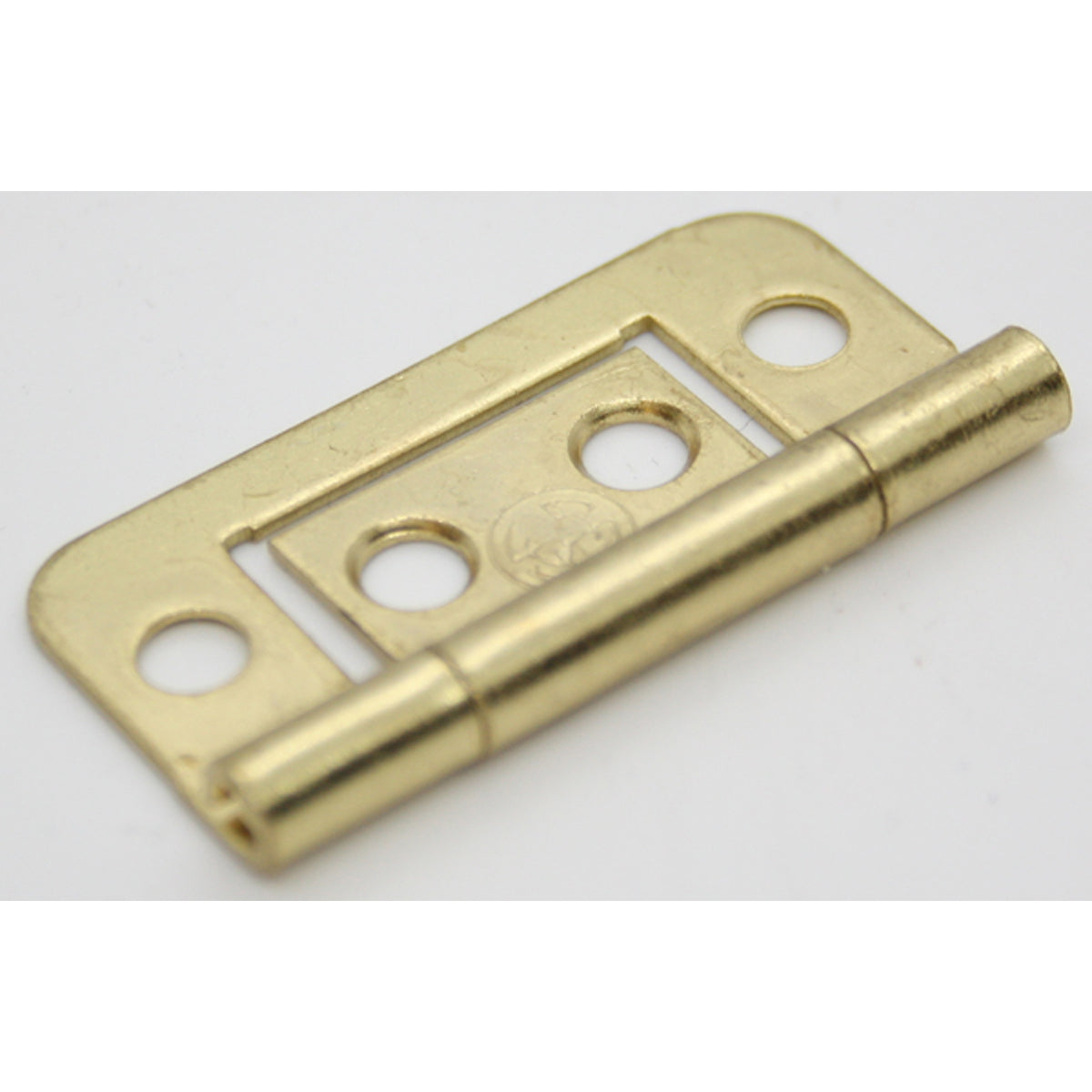

40mm Electro-Brass Fixed-Pin Flush Hinge

This compact 40mm fixed-pin flush hinge is designed for surface-mounted furniture, cupboard and cabinet applications. Its interlocking leaves allow the hinge to close without requiring the deep recess normally associated with a traditional butt hinge.

The electro-brass plated finish gives the hinge a traditional brass-coloured appearance while the fixed pin keeps the two leaves permanently assembled. Four fixing holes provide straightforward attachment to suitable furniture panels, doors, boxes and frames.

Key Features

• 40mm nominal hinge size
• Flush-hinge design with interlocking leaves
• Fixed hinge pin
• Electro-brass plated finish
• Four fixing holes
• Surface-mounted installation
• Minimal recessing compared with a traditional butt hinge
• Suitable for furniture, cabinets and light cupboard doors

Technical Specifications

How a Flush Hinge Works

One hinge leaf fits inside the opening formed by the other leaf when the hinge closes. This compact arrangement allows the two mounting surfaces to sit close together and usually requires less recessing than a conventional butt hinge.

Typical Applications

• Furniture doors
• Cabinet and cupboard doors
• Small access panels
• Storage boxes and wooden cases
• Furniture repairs and restoration

Installation Guidance

Position the hinge with the knuckle correctly aligned along the edge of the moving panel. Mark the four fixing positions and drill pilot holes appropriate for the chosen screws and installation material. Test the door or panel movement before fully tightening the fixings.

Check the hinge size, fixing-hole arrangement and electro-brass finish against the existing fitting before ordering. Use the number of hinges appropriate for the size and weight of the door or panel.

Frequently Asked Questions

What type of hinge is HI121440?

HI121440 is a 40mm flush hinge with interlocking leaves and a fixed pin.

Does a flush hinge need to be recessed?

Flush hinges are normally surface mounted and generally require less recessing than conventional butt hinges. The precise installation method depends on the furniture construction and required door alignment.

Is this hinge made from solid brass?

No. The verified specification describes an electro-brass plated finish. Do not advertise the hinge as solid brass.

Can the hinge pin be removed?

No. This model has a fixed pin, so the two hinge leaves remain permanently assembled.

How many fixing holes does it have?

The hinge has four fixing holes, with two holes on each interlocking leaf.

Are fixing screws included?

Select screws suitable for the furniture material and fixing-hole size. Confirm whether screws are included by checking the product record before ordering.

What is this hinge suitable for?

It is intended for light furniture, cabinet, cupboard, box and access-panel applications. Do not publish a load capacity unless a verified rating is available.

Alternative Finishes

• HI121440A – Polished Nickel-Plated Flush Hinge
• HI121440B – Bronze-Finish Flush Hinge
