2kg Mortice Magnetic Cabinet Catch – Black

2kg Mortice Magnetic Cabinet Catch – Black

Stock Code: 24601312

Regular price £2.05 GBP
Regular price Sale price
Sale
View full details
>

PRODUCT DESCRIPTION

2kg Mortice Magnetic Cabinet Catch – Black

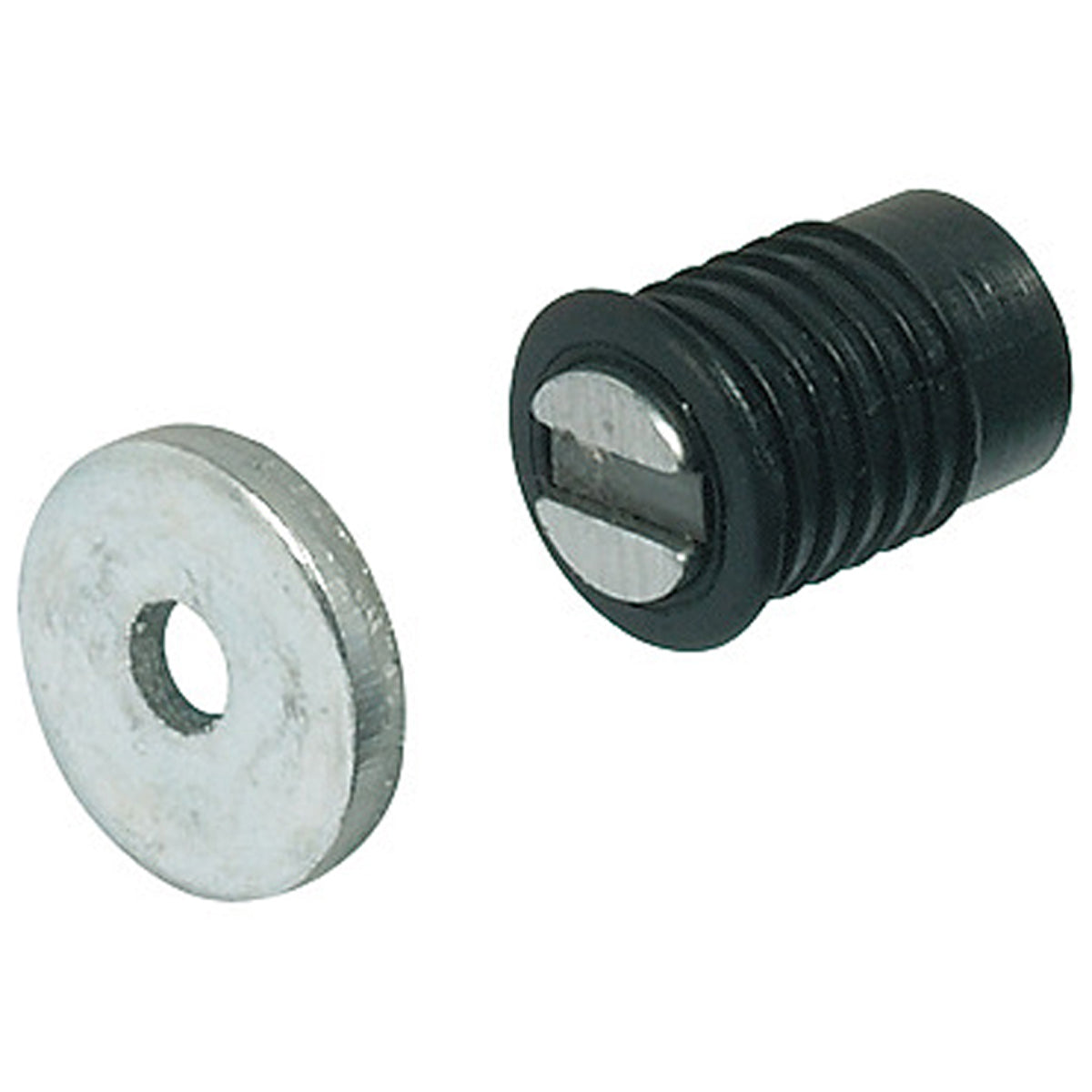

This black mortice magnetic catch fits into a small drilled recess in a cabinet face edge. Its fixed plastic catch housing is press fitted, while the chromed steel counterplate screws to the opposing door surface.

Technical specifications

Part number 24601312
Approximate magnetic pull 2 kg
Catch housing Plastic; fixed, press-fit
Counterplate Chromed steel; fixed, screw fixing
Drill hole diameter 8 mm
Catch body length shown 14.5 mm
Catch face diameter 9.5 mm
Counterplate diameter 12 mm

Fitting and use

Press fit the catch into a correctly sized Ø8 mm recess. Align the counterplate with the magnetic face and screw it to the door. Use the drawing to distinguish the body, front flange and counterplate measurements.

Dimension drawing

Dimensions are in millimetres. Check the drawing and actual fitting before machining.

24601312 – 2kg Mortice Magnetic Cabinet Catch – Black dimensional drawing in millimetres

Frequently asked questions

Does this catch need a surface mounting housing?

No. It is a mortice catch for a drilled recess.

Is the kg figure a door weight rating?

No. It is the approximate magnetic pull, not the weight of a door that the fitting can support. Contact, alignment and the gap between the parts affect retention.

Related products

TECHNICAL DETAILS

  • Application: Security
  • Size: Ø8 mm bore; 14.5 mm body length; Ø9.5 mm face
  • Length: 14.5mm
  • Diameter: 9.5mm
  • Finish: Black
  • Capacity: 2
  • Colour: Black
  • Material: Plastic catch; chromed steel counterplate
