Blum MOVENTO BLUMOTION Heavy-Duty Runner – 70kg, 520mm, Pair

Blum MOVENTO BLUMOTION Heavy-Duty Runner – 70kg, 520mm, Pair

Stock Code: DR766H5200S

£36.70 GBP
Sale
View full details

PRODUCT DESCRIPTION

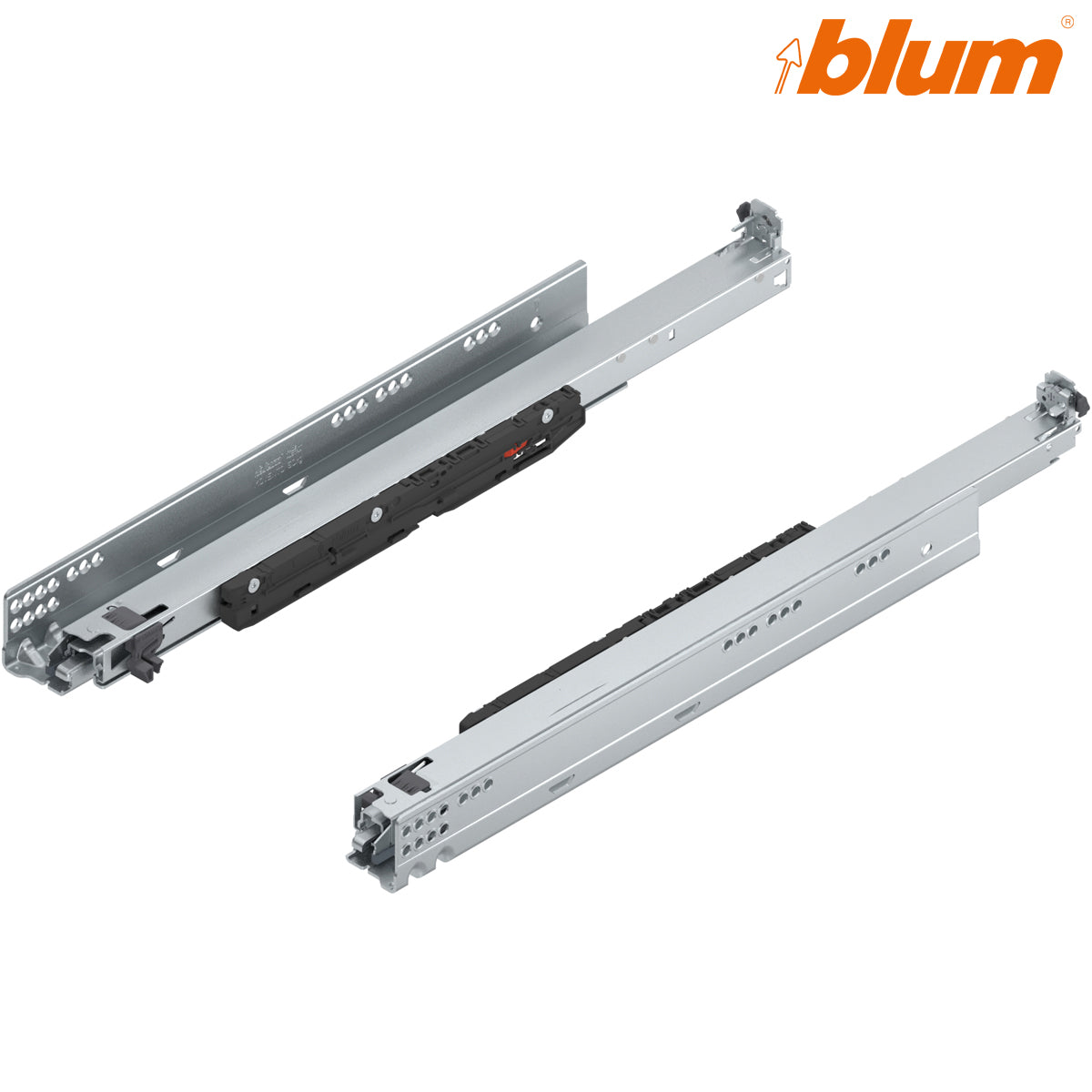

Blum MOVENTO BLUMOTION 70kg Drawer Runners – 520mm Pair

The Blum MOVENTO 766H5200B is a heavy-duty 520mm concealed drawer runner pair for wooden drawers carrying loads of up to 70kg. The intermediate length provides a precise option for substantial fitted-storage drawers where standard 500mm or 550mm runners do not suit the available cabinet depth.

Full-extension movement makes the complete drawer space accessible, including contents stored towards the back. Integrated BLUMOTION cushions the closing action and brings the loaded drawer to a smooth, quiet stop. The runners install beneath the drawer, keeping the mechanism hidden from view.

Heavy-duty features and benefits

  • Genuine Blum MOVENTO concealed runner system
  • Heavy-duty 70kg dynamic load capacity
  • Integrated BLUMOTION soft-close technology
  • 520mm nominal runner length
  • Full extension for access throughout deeper drawers
  • Suitable for wooden drawer sides up to 16mm thick
  • Concealed undermount installation
  • Durable zinc finish
  • Supplied as one matched left-and-right runner pair
  • Compatible front fixing clips or locking devices sold separately

Technical specifications

Manufacturer Blum
Product range MOVENTO
Blum part number 766H5200B
Hart Wholesale SKU DR766H5200S
Runner type Heavy-duty concealed undermount drawer runner
Closing system Integrated BLUMOTION soft close
Extension type Full extension
Nominal runner length 520mm
Load capacity 70kg
Maximum drawer-side thickness 16mm
Finish Zinc
Pack quantity One pair: left and right runners

Compatibility and ordering information

This runner pair is intended for compatible wooden drawers with side panels no thicker than 16mm. Suitable MOVENTO front fixing clips or locking devices are required to attach and adjust the drawer. These components are not included and must be ordered separately.

The cabinet, drawer base, sides and fixing method must be appropriate for the intended load. Confirm the 520mm runner length and all fitting dimensions before ordering. Compare the wider Blum MOVENTO runner collection, find compatible parts in the MOVENTO accessories collection, or browse the complete Blum product range.

Frequently asked questions

What is the load capacity?

This model has a 70kg dynamic load rating when the runner pair is used in a correctly constructed and installed drawer system.

Does this model include BLUMOTION?

Yes. BLUMOTION soft-close technology is integrated into the runners and provides controlled, quiet closing.

Are fixing clips included?

No. The product contains the left-and-right runner pair only. Compatible MOVENTO front fixing clips or locking devices must be purchased separately.

What should be checked before installation?

Confirm the cabinet and drawer construction, intended load, 520mm nominal length, maximum 16mm drawer-side thickness and compatible fixing arrangement.

All Blum products supplied by Hart Wholesale are backed by the Blum Lifetime Guarantee, providing long-term confidence for professional installations.

TECHNICAL DETAILS

  • Size: 520mm
  • Length: 520mm
  • Finish: Zinc
  • Capacity: 70
  • Colour: Zinc
  • Load capacity: 70
  • Material: Steel
